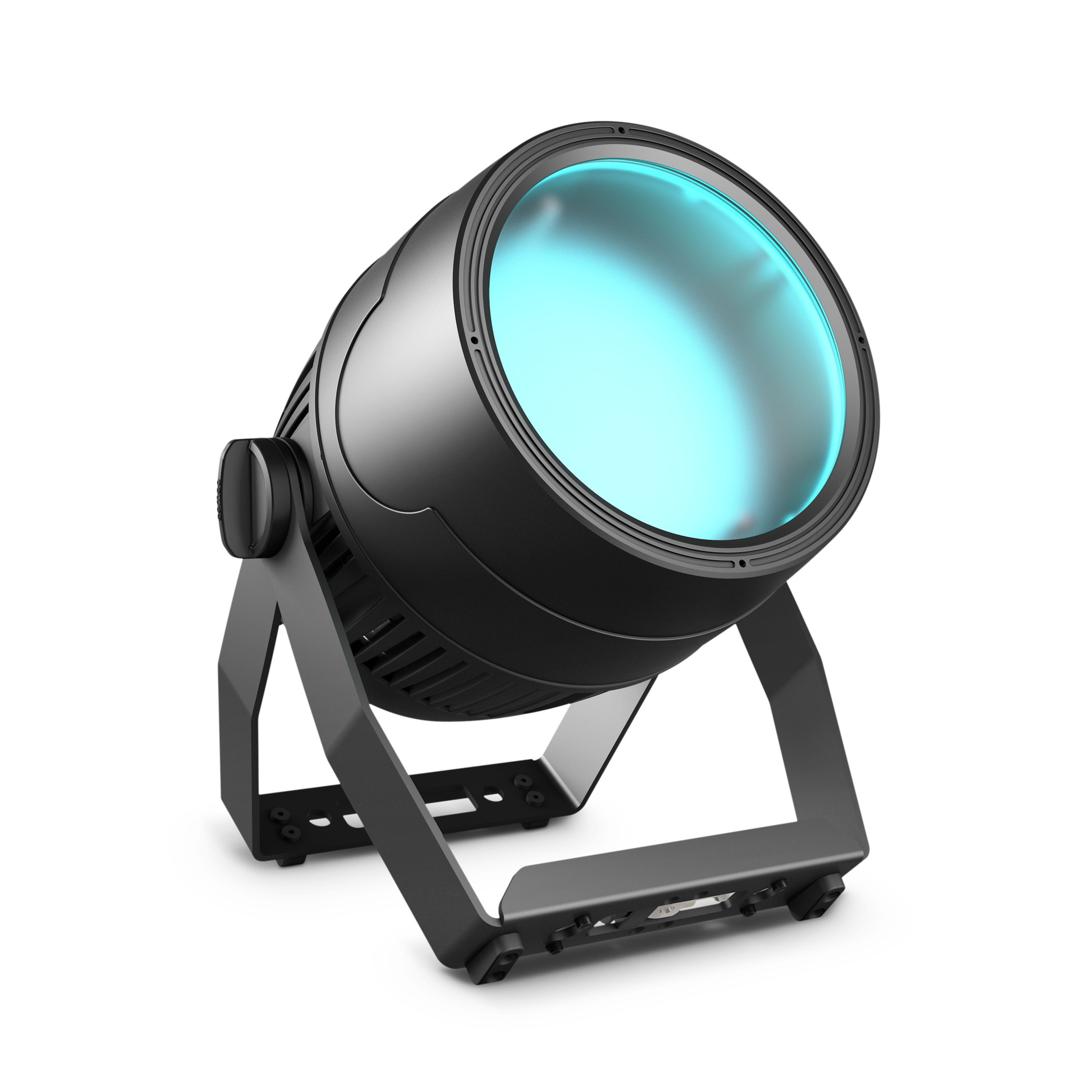

Cameo ZENIT Z120 G2

Cameo ZENIT Z120 G2

$0.00Price
Professional Zoom PAR IP65

Item No.: CLZZ120G2

  • Professional high output PAR can with 7° - 55° zoom

  • Patented SPIN16® technology for fast and flexible installation thanks to 16 mm TV spigot integrated in the mounting bracket

  • 120 W RGBW COB LED

  • High resolution 16-bit colour mixing and dimming

  • Colour temperature correction

  • Variable white balance

  • 4 selectable dimming curves with adjustable response

  • Easy configuration via OLED display and 4 touch buttons

  • Security lock against unauthorized menu access

  • RDM enabled

  • Flicker free, ideal for TV and film applications

  • IP65 rating for outdoor use

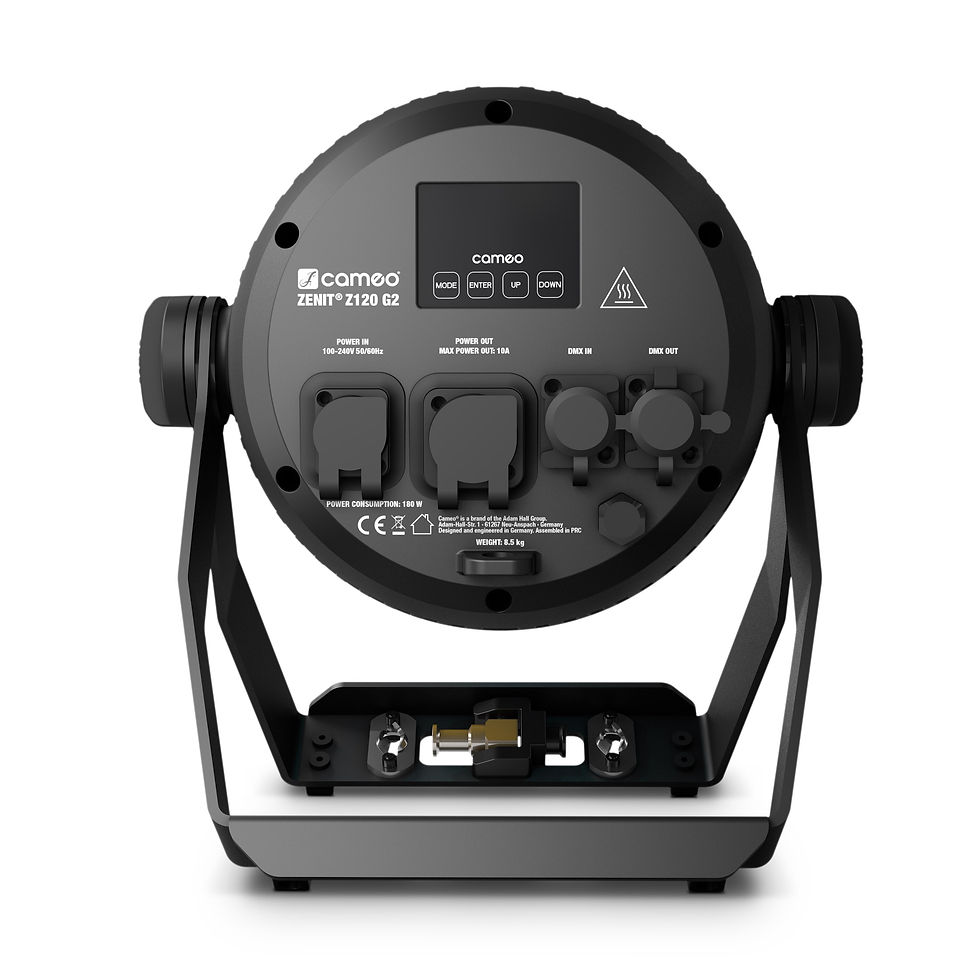

  • 5-pin DMX connectors, power input and output compatible with powerCON TRUE1

  • Optional Cameo Omega Bracket (CLOMEGABRACKET1) available as accessory

  • Description

    Following the hugely successful ZENIT® Z 120, Cameo now introduces the ZENIT® Z 120 G2 featuring an OLED display and patent pending mounting bracket which integrates a super clamp stud. The RDM enabled high output PAR can for demanding professional applications employs a single long-life 120 watt RGBW COB LED and 16-bit technology for vivid high-resolution colour mixes with maximum uniformity and perfect dimming behavior. Covering a range from 7° to 55°, the motorized zoom provides flexible illumination from tightly focused, narrow beams to wide, diffuse washes.



    With a 3.600 Hz refresh rate for flicker free operation and IP65 rating the ZENIT® Z 120 G2 is eminently suitable in TV, film and outdoor applications. The PAR can's advanced features include colour temperature correction, variable white balance and 4 selectable dimming curves with adjustable response to mimic the ramp-down of halogen bulbs.



    Sporting 7 modes of DMX control, the ZENIT® Z 120 G2 is also capable of master, slave and standalone operation. A bright OLED display with 4 touch buttons facilitates menu navigation and configuration while a security lock prevents unauthorized access. The heavy-duty diecast aluminium housing utilizes highly efficient convection cooling for completely silent operation. 5-pin DMX connectors e powerCON TRUE1 enable daisy chaining. The Cameo ZENIT® Z 120 G2 runs on all voltages from 100 - 240 V AC.

  • Specification

    Product type LED PAR Lighting
    Type Outdoor
    Colour spectrum RGBW
    Number of LEDs 1
    LED type 120W (approx. 50000 operating hours)
    Refresh rate 3600 Hz
    Dispersion 7 - 55 °
    DMX input 5-pin IP65
    DMX output 5-pin IP65
    DMX mode 10-channel , 11-channel , 17-channel , 3-channel , 4-channel , 5-channel , 9-channel
    DMX Functions colour fade , colour jump , colour macro , Colour temperature correction , Dimmer , Dimmer Curve , Dimmer Fine , Dimmer Response , reset , RGBW , RGBW Fine , strobe , Zoom , Zoom Fine
    Standalone modes colour fade , colour jump , colour macro , Dimmer Curve , Dimmer Response , Display Lock , Master / Slave mode , static colour , strobe , White Balance adjustable
    Controls Down , Enter , Mode , Up
    Indicators OLED Display
    Operating voltage 100 V AC - 240 V AC, 50 - 60 Hz
    Power consumption 180 W
    Power connector TRUE1 compatible Power I/O sockets
    Housing material die-cast aluminium
    Cabinet colour Black
    Protection class IP 65
    Cooling Convection
    Illuminance (55°) 3900 lx @ 1 m , (7°) 62000 lx @ 1 m
    Luminous flux 2117 lm
    Operating Temperature -15 - 45 °C



    Dimensions without mounting bracket

    Width 230 mm
    Height 230 mm
    Length 300 mm
    Weight 8,3 kg
