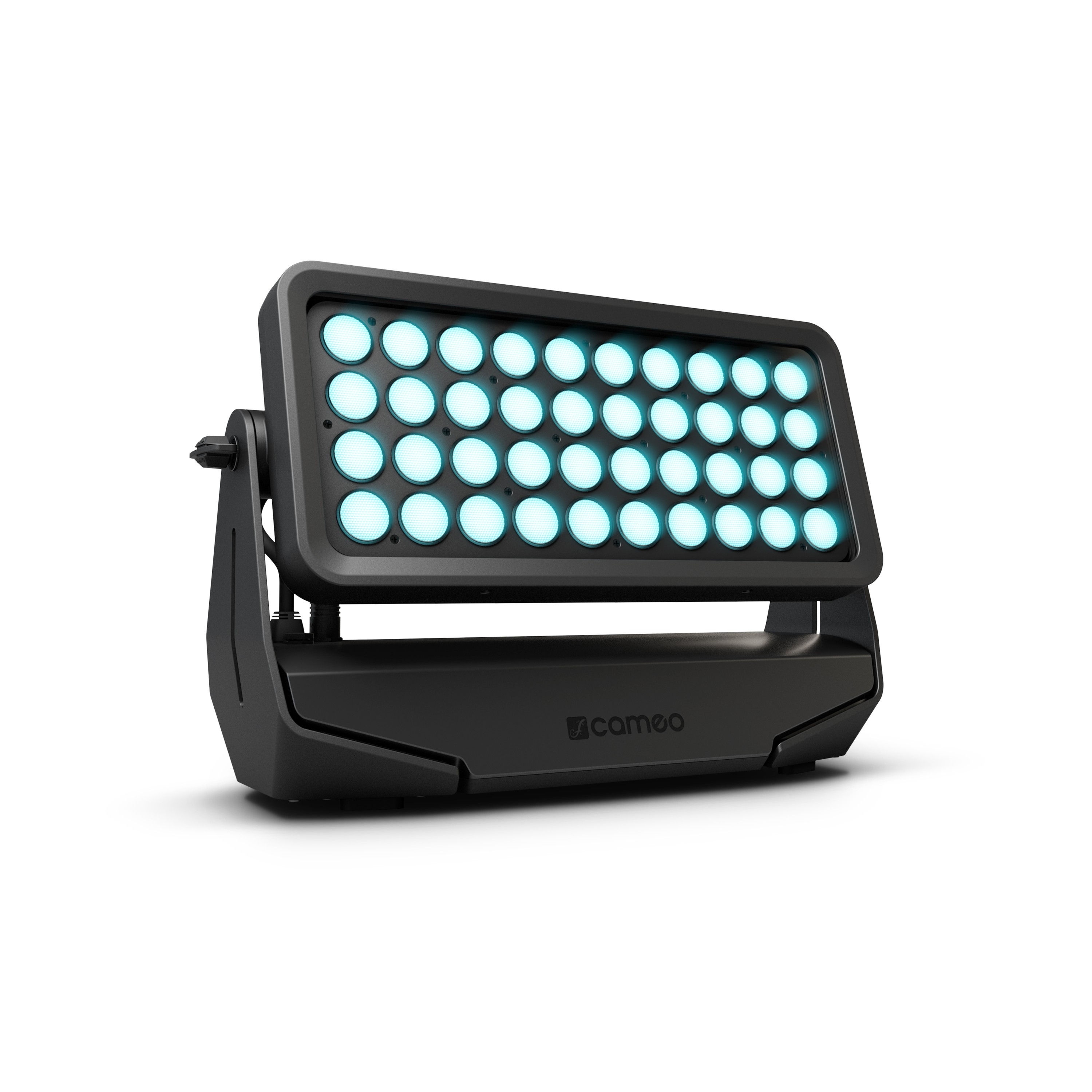

Cameo ZENIT W600

Cameo ZENIT W600

Outdoor LED Wash Light



Item No.: CLZW600



  • 40 x 15 W RGBW LEDs with 21,000 lm total output for uniform and powerful colour mixing

  • 18° beam and 35° field angles without diffuser

  • Optional SnapMag® filter frames for 25°, 45°, 100° or elliptical 60° x 10° beam angle selection and installation without tools or dismantling

  • Built-in 2.4 GHz W-DMX™ transceiver

  • Wireless master-and-slave function

  • Wireless DMX, RDM (via DMX and W-DMX™), standard DMX plus standalone modes with automated programs

  • IP65 rating for permanent outdoor use

  • Temperature controlled fans for optimized operation and low noise

  • 16-bit technology for high-resolution colours and dimming
  • Description

    Equipped with a total of forty 15 W RGBW LEDs for a massive 21,000 lm output, the Cameo ZENIT® W600 is a powerful IP65 rated wash light for demanding outdoor applications. In addition to RDM and standard DMX capability it boasts a built-in 2.4 GHz W-DMX™ transceiver by Wireless Solution Sweden AB for convenient wireless control. The fixture also provides a rich variety of stunning automated programs for standalone or wireless master-and-slave operation.



    For maximum versatility, the ZENIT® W600 sports Cameo's innovative SnapMag® technology. It allows you to add filter frames in less than a second without the need for tools or dismantling. Magnetic SnapMag® frames with precision light shaping diffusers providing a choice of 25°, 45°, 100° or elliptical 60° x 10° beam angles and a 4-way barn door are available as dedicated accessories.



    Featuring advanced 16-bit technology for high-resolution colour mixing and dimming and an 18° beam spread, the ZENIT® W600 projects hugely intense, uniform washes. With colour temperature and individual LED colour correction, four selectable dimming curves and fully adjustable halogen lamp-like dimming response, the fixture is the perfect tool for highly professional lighting.



    The ZENIT® W600's die cast aluminium housing integrates three temperature controlled fans that ensure optimized, low noise operation while a bright OLED display with four touch buttons permits easy, intuitive configuration. A security lock prevents unauthorized access to the luminaire's menu settings.

  • Specification

    Product type LED Outdoor Wash Light
    Type ZENIT
    Colour spectrum RGBW
    Number of LEDs 40
    LED type 15 W
    Average LED lifetime 50000 hrs.
    Refresh rate Adjustable: 800Hz, 1200Hz, 2000Hz, 3600Hz, 12000Hz, 25000 Hz
    Dispersion 18° Beam, 35° Field (without diffusor) °
    Lens PE and tempered glass
    DMX input 5-pin IP65
    DMX output 5-pin IP65
    DMX mode 10-channel , 15-channel , 2-channel , 3-channel , 4-channel , 8-1 Channel , 8-2 Channel
    DMX Functions Auto programs , colour macro , CTC (Colour Temperature Correction) , Dimmer , Dimmer Curve , Dimmer Fine , Dimmer Response , RGBW , RGBW Fine , strobe
    Standalone modes Auto programs , colour macro , Master / Slave mode , Settings , Static , system info , Tunable White , User Colours
    Controls Enter , Mode , Value Down , Value Up
    Indicators OLED Display
    Operating voltage 100 V AC - 240 V AC, 50 - 60 Hz
    Power consumption 565 W
    power factor 0.99 PF (120V) / 0.96 PF (230V)
    Power connector IP65
    Power supply connection IP65
    Housing material Aluminium
    Cabinet colour Black
    Protection class IP IP65
    Cooling IP65 temperature-controlled fans
    Luminous flux 21000 lm
    Efficiency 37.2 lm/W
    Operating Temperature -15 - 45 °C
    Accessories (included) 2 x omega mounting
    Other features ETL certified



    Dimensions including Mounting Bracket

    Width 463 mm
    Length 291 mm
    Height 161 mm
    Weight 13 kg
