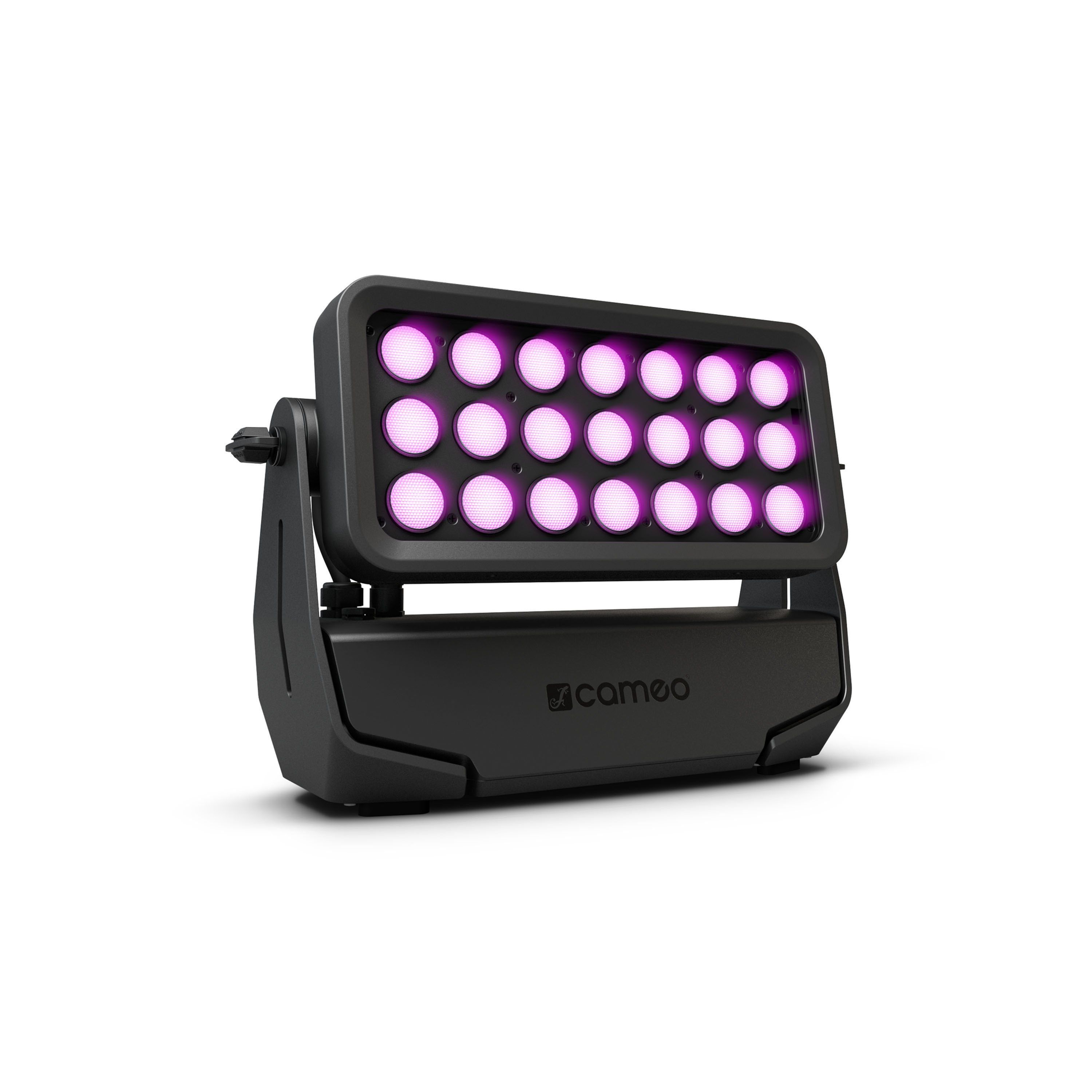

CAMEO LIGHTS ZENIT W300

CAMEO LIGHTS ZENIT W300

Outdoor LED Wash Light



Item No.: CLZW300



  • 21 x 15 W RGBW LEDs with 10,000 lm total output for uniform and powerful colour mixing

  • 21° beam and 35° field angles without diffuser

  • Optional SnapMag® filter frames for 25°, 45° or 100° and elliptical 60° x 10° beam angle selection and installation without tools or dismantling

  • Built-in 2.4 GHz W-DMX™ transceiver

  • Wireless master and slave operation,

  • W-DMX™, RDM, DMX or IR control plus standalone modes with automated programs

  • IP65 rating for permanent outdoor use

  • Low-noise temperature controlled fans for optimized operation

  • 16-bit technology for high-resolution colours and dimming
  • Description

    Equipped with a total of twenty-one 15 W RGBW LEDs for a huge 10,000 lm output, the Cameo ZENIT® W300 is a powerful IP65 rated wash light for demanding outdoor applications. In addition to RDM and standard DMX capability it boasts a built-in 2.4 GHz W-DMX™ transceiver by Wireless Solution Sweden AB for convenient wireless control. The fixture also provides a rich variety of stunning automated programs for standalone or wireless master-and-slave operation.



    For maximum versatility, the ZENIT® W300 sports Cameo's innovative SnapMag® technology. It allows you to add filter frames in less than a second without the need for tools or dismantling. Magnetic SnapMag® frames with precision light shaping diffusers and a 4-way barn door are available as dedicated accessories.



    Featuring advanced 16-bit technology for high-resolution colour mixing and dimming and an 21° beam spread, the ZENIT® W300 projects highly intense, uniform washes. With colour temperature correction, selectable dimming curves and dimming response, the fixture is the perfect tool for truly professional lighting.



    The ZENIT® W300's die cast aluminium housing integrates temperature controlled fans that ensure optimized, low noise operation while a bright OLED display with four touch buttons permits easy, intuitive configuration. The fixture comes with an IR remote control, omega mounting bracket and power cord.

  • Specification

    Product type LED Outdoor Wash Light
    Type ZENIT
    Colour spectrum RGBW
    Number of LEDs 21
    LED type 15 W
    Average LED lifetime 50000
    Refresh rate Adjustable: 800, 1200, 2000, 3600, 12000, 25000 Hz
    Dispersion 21 ° Beam, 40 ° Field (without Diffusor) °
    Lens PE and tempered glass
    DMX input 5-pin IP65
    DMX output 5-pin IP65
    DMX mode 10-channel , 15-channel , 2-channel , 3-channel , 4-channel , 8-1 Channel , 8-2 Channel
    DMX Functions Auto programs , colour macro , CTC (Colour Temperature Correction) , Dimmer , Dimmer Curve , Dimmer Fine , Dimmer Response , RGBW , RGBW Fine , strobe
    Standalone modes Auto programs , colour macro , Device Settings , Master / Slave mode , Static , system info , Tunable White , User Colours
    Controls Enter , Mode , Value Down , Value Up
    Indicators OLED Display
    Operating voltage 100 V AC - 240 V AC, 50 - 60 Hz
    Power consumption 300 W
    power factor 0.99 PF (120V) / 0.96 PF (230V)
    Power connector IP65
    Power supply connection IP65
    Housing material Aluminium
    Cabinet colour Black
    Protection class IP IP65
    Cooling IP65 temperature-controlled fans
    Luminous flux 10661 lm
    Efficiency 35.3 lm/W
    Operating Temperature -15 - 45 °C
    Other features ETL certified



    Total dimensions

    Width 377 mm
    Length 256 mm
    Height 140 mm
    Weight 8 kg
