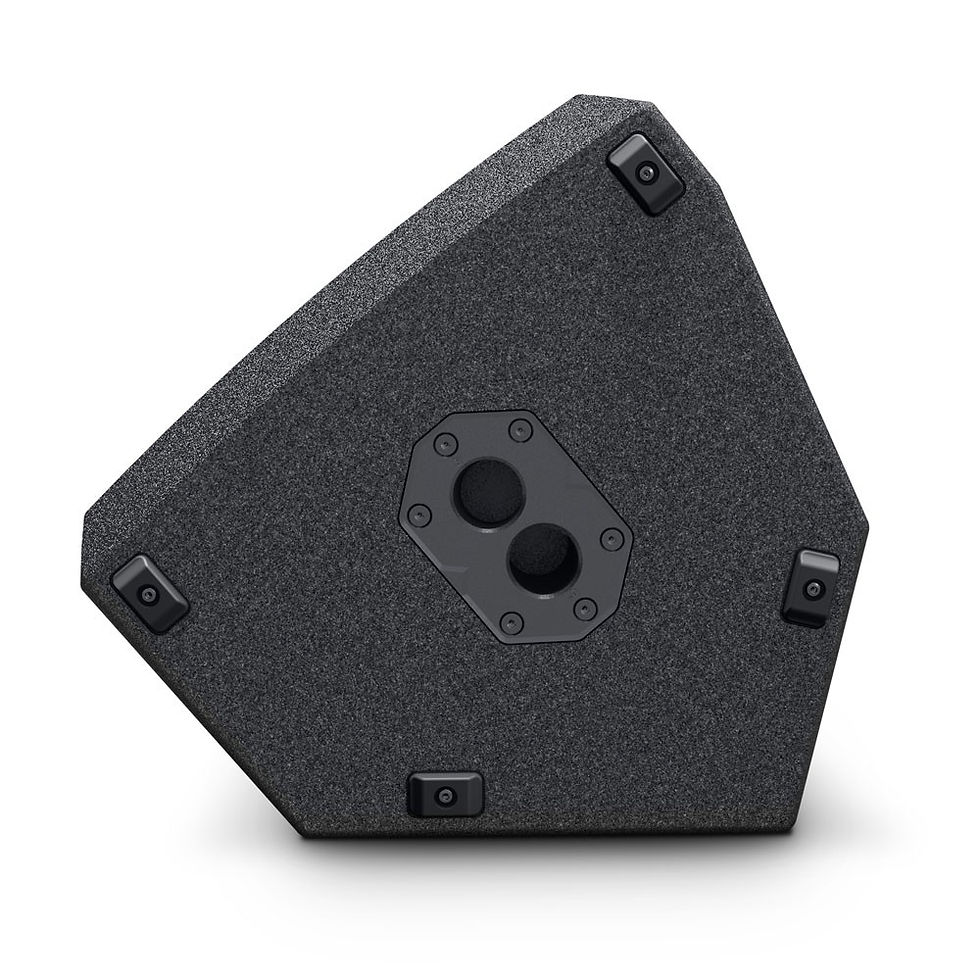

Active 15" 2-way bass-reflex PA speaker
Item No.: LDEB152AG3
- Active 15" 2-way bass-reflex PA speaker
- 133 dB max. SPL and 500-watt RMS performance with a highly-efficient digital amplifier
- Perfect all-rounder for full-range, satellite and monitor applications
- Practical presets for fast and user-specific frequency tuning
- Homogeneous dispersion pattern thanks to a BEM-optimised tweeter wave guide
- 15" custom woofer and BMS tweeter driver
- Distortion-free sound at even maximum volumes, thanks to DynX® DSP technology
- 2 line/mic input channels with individual gain controllers plus mono mix output
- 15 mm birch plywood housing with ultra-robust polyurea coating and M10 rigging points
- Shock-resistant front grille for optimal protection of the speaker.
- 36 mm dual tilt stand attachment with 0° and 5° tilt angle
- Extensive and smart accessories for installation and transport
This highly professional 2-way active system is designed for absolute, long-term reliability. With its multi-functional bass reflex housing and finely tuned, user-friendly presets, the speakers are suitable as full-range, box, satellite and floor monitors. The Stinger® 15 A G3 is powered by a highly efficient Class-D amplifier with an impressive 500-watt continuous output. The specially developed 15" woofer and a BMS tweeter driver achieve a deep bass response and fresh, natural trebles. The wave guide of the tweeter has been developed using the Boundary Element Method (BEM), a numerical simulation of the sound radiation and dispersion. It reduces reflection from floors and ceilings and prevents sidelobe levels, thus achieving controlled and homogeneous dispersion.
LD Systems’ proprietary DynX® DSP technology means that the Stinger® 15 A G3 delivers perfect performance with maximum clarity and power under all conditions. The signal processing of the crossover function and the multi-band limiter achieve an optimal runtime and high freedom from distortion. Designed as an all-around workhorse, the housing of the speaker is made of robust birch plywood. An extremely resilient coating of polyurea offers exceptional robustness and durability. The features include a steel front grille, a dual-tilt stand attachment, flight points and ergonomic handles. The Stinger® 15 A G3 is a good value and attractive solution for professional sound systems, with extensive accessories that support usage on the stage and in fixed installations.
Product type PA loudspeaker Type active Low/mid driver dimensions 15 " Woofer size 381 mm Woofer magnet Ferrite Woofer brand Custom-made Woofer voice coil 3 " Woofer voice coil (mm) 76.2 mm Horn BEM optimized CD Horn HF driver dimensions 1 " HF Driver Size 25.4 mm HF driver magnet Ferrite HF driver brand BMS HF driver voice coil 1 " HF Driver Voice Coil 25.4 mm Amplifier Class D Dispersion (H x V) 90 x 50 ° RMS 500 W Peak power 1000 W Frequency response 50 - 20000 Hz Max. SPL (peak) 133 dB Protection circuits Multiband limiter , over voltage , over-current , thermal overload Input sensitivity -5 dBu Controls 2 x gain , 2 x Mic/Line , Mode Indicators Limit , Mic , Mode , On , Protect (protection circuit engaged) , Signal Line inputs 2 Line input connectors 6.3 mm jack , XLR Line outputs 1 Line output connectors XLR Operating voltage 100 - 120 V / 50 - 60 Hz or 200 - 240 V / 50 - 60 Hz (automatic switching) , Switching power supply Operating Temperature 0 - 40 °C Relative Humidity < 80% (non-condensing) Cabinet material 15 mm Plywood Cabinet surface Polyurea Cabinet construction vented Monitor angle 54 ° Width 480 mm Height 737 mm Depth 455 mm Weight 26,8 kg
