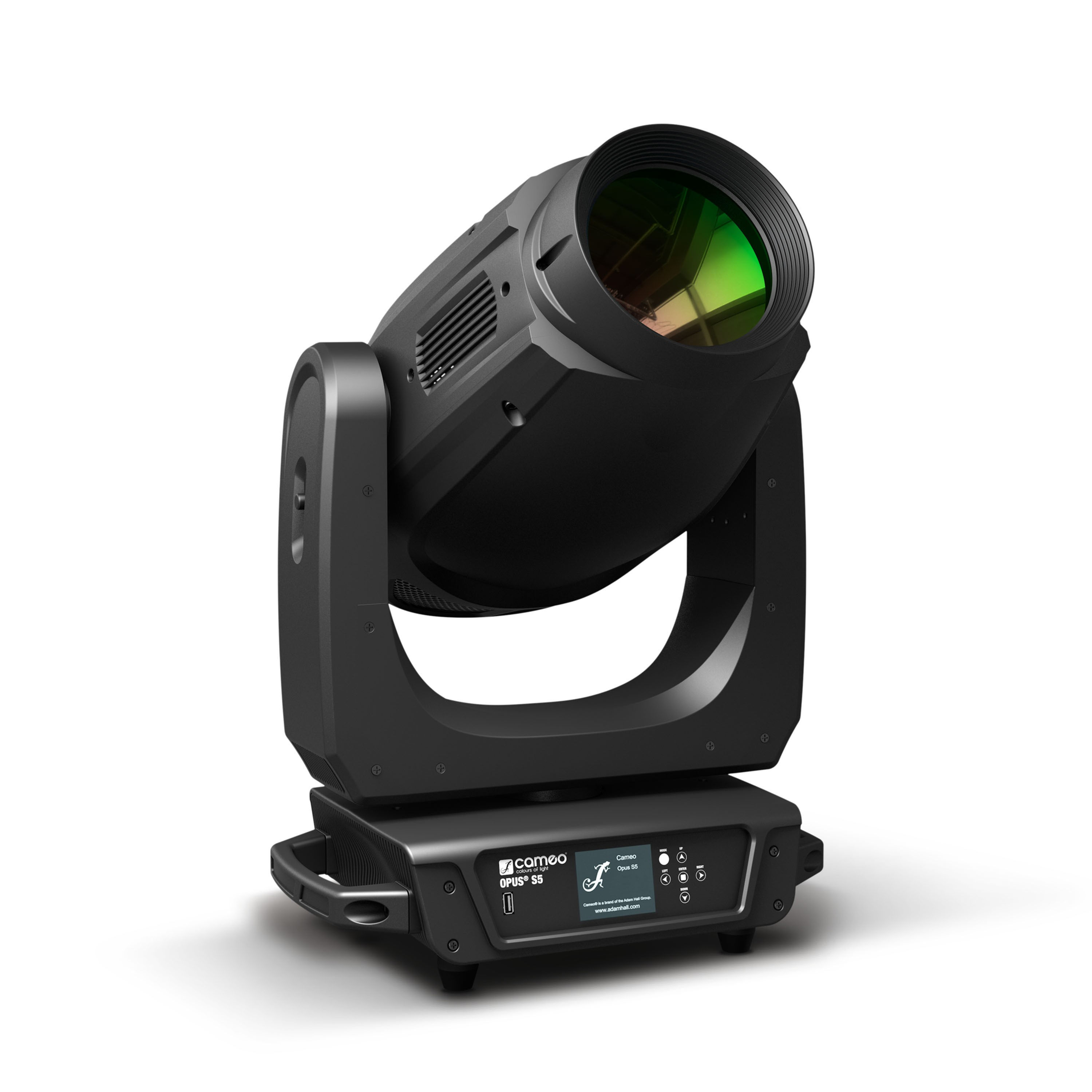

CAMEO LIGHTS OPUS S5

CAMEO LIGHTS OPUS S5

Spot Moving Head



Item No.: CLOS5



  • Compact super bright Spot Moving Head with 17.500 lm output and huge illuminance of 39,000 lux @ 5 m

  • Advanced CMY colour mixing system plus colour wheel with 7 dichroic filters

  • Linear CTO correction from 6,500 - 2,600 K

  • Highly efficient optics with extra wide 6° - 46° zoom range

  • Even and flat projection field without hot spots at any zoom angle

  • Rotating animation wheel

  • Rotating gobo wheel with 7 interchangeable indexable glass gobos + open

  • Static gobo wheel with 8 interchangeable glass gobos + open

  • Rotatable and indexable 3-facet circular prism plus 6-facet linear prism

  • Variable frost for wash-like effects plus stepless iris
    Ultra smooth 16-bit dimming with 4 selectable curves

  • Flicker-free operation thanks to selectable PWM frequencies up to 25 kHz

  • Battery powered touchscreen display plus 6 touch buttons for offline configuration

  • Flexible control via built-in W-DMX™ Receiver, DMX, RDM, Art-Net or sACN
  • Description

    Illuminating stages with brilliant, lively colours, the Cameo OPUS® S5 is a compact super bright spot moving head with a powerful 380 W white LED engine, CMY mixing system and linear CTO correction. It is highly effective in venues of all sizes thanks to its wide zoom range. An additional colour wheel with 7 dichroic filters enables instant colour changes and split colour projection. The fixture has an enormous 17,500 lm output, huge illuminance of 39,000 lux at a distance of 5 meters and rapid 540° pan and 270° tilt movement. Permitting extensive beam control, the highly efficient optics feature an extra wide zoom range from 6° to 46° and stepless iris. A continuously variable frost filter provides soft, wash-like diffusion.



    Generating spectacular morphing effects when used simultaneously, the OPUS® S5 has two gobo wheels with 7 rotating and 8 static glass gobos which can also be used in combination with the rotating animation wheel for amazingly vivid projections. In addition to a rotatable and indexable 3-facet circular prism and a 6-facet linear prism to multiply gobo projection, the luminaire includes 16-bit dimming with a choice of 4 curves.



    The OPUS® S5 offers flexible control options via DMX, RDM, Art-Net, sACN or the built-in W-DMX™ transceiver. It has a rugged ABS and metal housing with Neutrik® DMX and powerCON TRUE1 connectors and super efficient heat pipe cooling system with temperature controlled fans to ensure optimal cooling. A battery-powered touchscreen display with 6 additional touch buttons permits convenient offline configuration and two modes of menu navigation. The luminaire comes with two omega brackets and power cord.

  • Specification

    Product type LED Moving Lights
    Type Moving Head
    Colour spectrum white
    Number of LEDs 1
    Colour temperature 6600 K
    LED type 380 W
    Refresh rate adjustable to 25000 Hz
    Dispersion 6 - 46 °
    DMX input XLR 3-pin male , XLR 5-pin male
    DMX output XLR 3-pin female , XLR 5-pin female
    DMX mode 27-channel , 33-channel
    DMX Functions Animation Wheel , Auto Movement , Colour wheel , CTO , CTO Fine , Cyan , Cyan Fine , Device Settings , Dimmer , Dimmer Fine , Focus , Focus Fine , Frost , Gobo wheel , Gobo Wheel 1 , Gobo Wheel 2 , Iris , Magenta , Magenta Fine , PAN , PAN FINE , Prism , Rotation Fine , Rotation Gobo Wheel 1 , Rotation Prism , Set Dimmer Curve , strobe , TILT , TILT FINE , Yellow , Yellow Fine , Zoom , Zoom Fine
    PAN movement 540
    TILT movement 270
    High Speed Strobe > 20 Hz
    Standalone modes Auto Mode , Settings , Static
    Controls Enter , Mode , Value Down , Value Up
    Indicators Graphic Display
    Operating voltage 100 V AC - 240 V AC, 50 - 60 Hz , Neutrik True 1 IN / OUT
    Power consumption 530 W
    Housing material ABS plastic , metal
    Cabinet colour Black
    Protection class IP IP20
    Cooling Heat-pipe cooling system with temperature controlled fans
    Luminous flux 17500 lm
    Maximum Ambient Temperature -15 - 45 °C
    Width 400 mm
    Height 630 mm
    Depth 250 mm
    Weight 24 kg
    Accessories (included) 2 x Omega Clamp , Power cord
