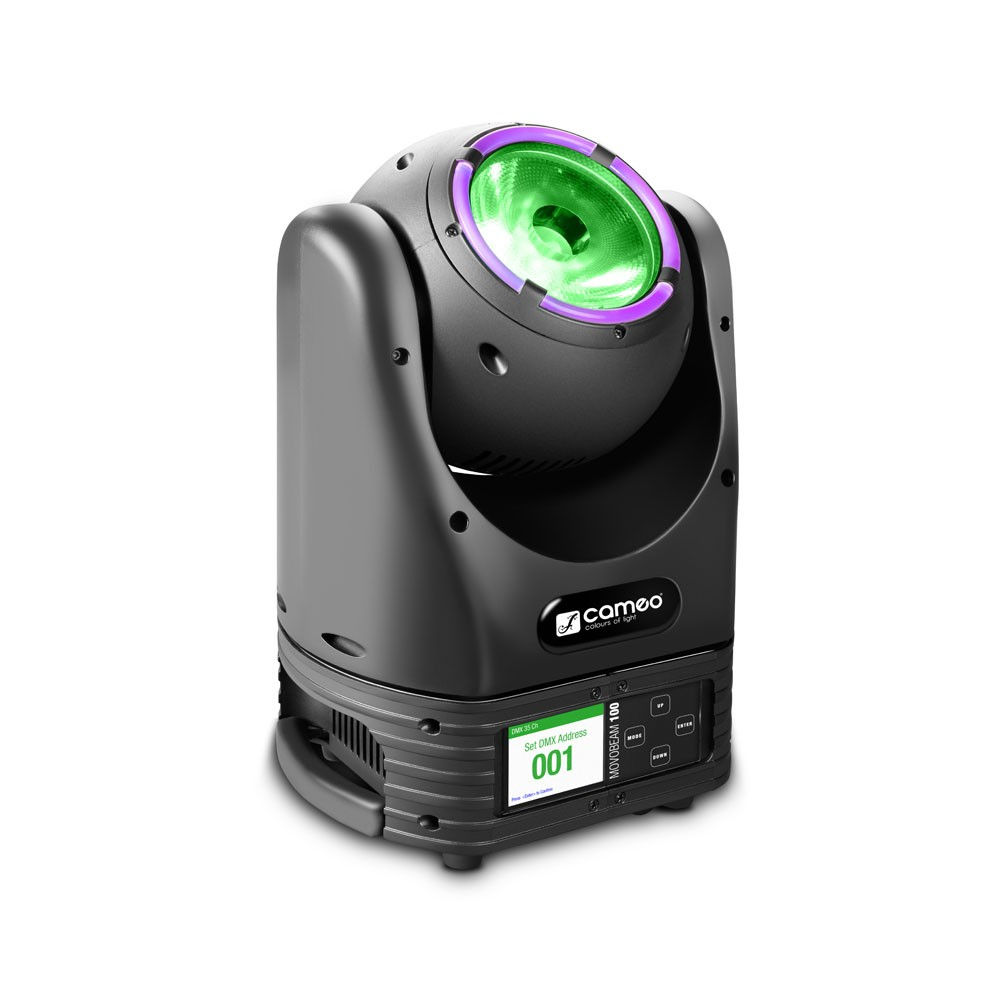

CAMEO LIGHTS MOVO BEAM 100

CAMEO LIGHTS MOVO BEAM 100

Unlimited Rotation Beam Moving Head with LED Ring



Item No.: CLMB100



  • Ultra-bright 60 W Osram RGBW LED for saturated primary colours, subtle pastel hues and natural shades of white

  • Individually controllable 4-segment RGB LED surround with single pixel control

  • 2 high-speed motors for ultra-fast continuous pan and tilt

  • Fantastic automated modes

  • 4 selectable dimming curves

  • 4 DMX modes and standalone, master or slave operation

  • 2.5" TFT display and touch sensitive buttons for intuitive configuration

  • Omega mounting bracket included
  • Description

    The MOVO® BEAM 100 is a powerful ultra-fast moving head delivering a narrow and defined 5,5° beam. A central high-performance 60 watt Osram LED produces rich RGBW mixes with saturated primary colours, subtle pastel hues and natural shades of white. It is surrounded by an RGB LED ring with 4 individually controllable segments to enable a multitude of spectacular beam effects. With its 1,000 Hz refresh rate the fixture is perfect for motion picture and TV applications.



    Driven by two high-speed, high-torque motors the MOVO® BEAM 100 provides continuous pan and tilt with smooth precision. It sports a bright 2.5" TFT display with touch sensitive buttons for convenient configuration, DMX control and amazing automated modes. Linear dimming with 4 selectable curves, a rapid strobe and colour temperature correction add to a brilliant and exciting performance.



    The MOVO® BEAM 100's compact compound housing features fan cooling to ensure reliable operation and extended LED life. It comes with an omega bracket for a variety of mounting options.

  • Specification

    Product type LED Moving Lights
    Type LED Moving Effects
    Colour spectrum RGBW
    Number of LEDs 1
    LED type 60W OSRAM (approx. 50.000 operating hours)
    Refresh rate 1000 Hz
    Dispersion 5.5 °
    DMX input XLR 3-pin male
    DMX output XLR 3-pin female
    DMX mode 15-channel , 4-channel
    DMX Functions Auto programs , colour fade , colour jump , colour macro , Colour Ring Macro , Colour Ring Macro Speed , Dimmer , Dimmer Colour Ring , Dimmer Curve , Dimmer Fine , PAN , PAN UNLIMITED ROTATION , Pan/Tilt fine , Pan/Tilt Macros , Pan/Tilt Speed , RGB Ring 1-4 , RGBW , Strobe Colour Ring , Stroboscope , TILT , TILT UNLIMITED ROTATION
    PAN movement unlimited / 540°
    TILT movement unlimited / 270°
    Standalone modes Auto programs , Static Mode
    Controls Enter , Mode , Value Down , Value Up
    Indicators 2,5” TFT Display
    Operating voltage 100 V AC - 240 V AC, 50 - 60 Hz
    Power consumption 130 W
    Power connector Blue and white power I/O
    Housing material ABS plastic , metal
    Cabinet colour Black
    Cooling fan
    Illuminance 157000lx @ 1m
    Luminous flux 1480 lm
    Width 210 mm
    Height 299 mm
    Depth 210 mm
    Weight 6 kg
