CAMEO LIGHTS MATRIX PANEL 3 WW

CAMEO LIGHTS MATRIX PANEL 3 WW

$0.00Price
5 x 5 LED Matrix Panel with single pixel control

Item No.: CLMP3WW

  • 5 x 5 LED Matrix Panel with single pixel control

  • 25 x 3 W warm white LEDs

  • 4 DMX modes, sound activation

  • Master, slave and standalone capability

  • Blinder, chase and strobe effects

  • Alphabetic character and numeral mapping

  • 4 selectable dimming curves

  • Noiseless and flicker-free operation

  • Ultra flat enclosure

  • Even more impressive in multiples

  • Description

    With a 5 x 5 array of warm white 3 watt LEDs and flicker-free performance the Cameo Matrix Panel creates exciting blinder, chase and strobe effects. Featuring powerful single pixel control it is the perfect choice for mapping alphabetic characters, numerals and complete messages. Recessed latches on all sides enable connecting multiple panels for large, impressive backdrops.

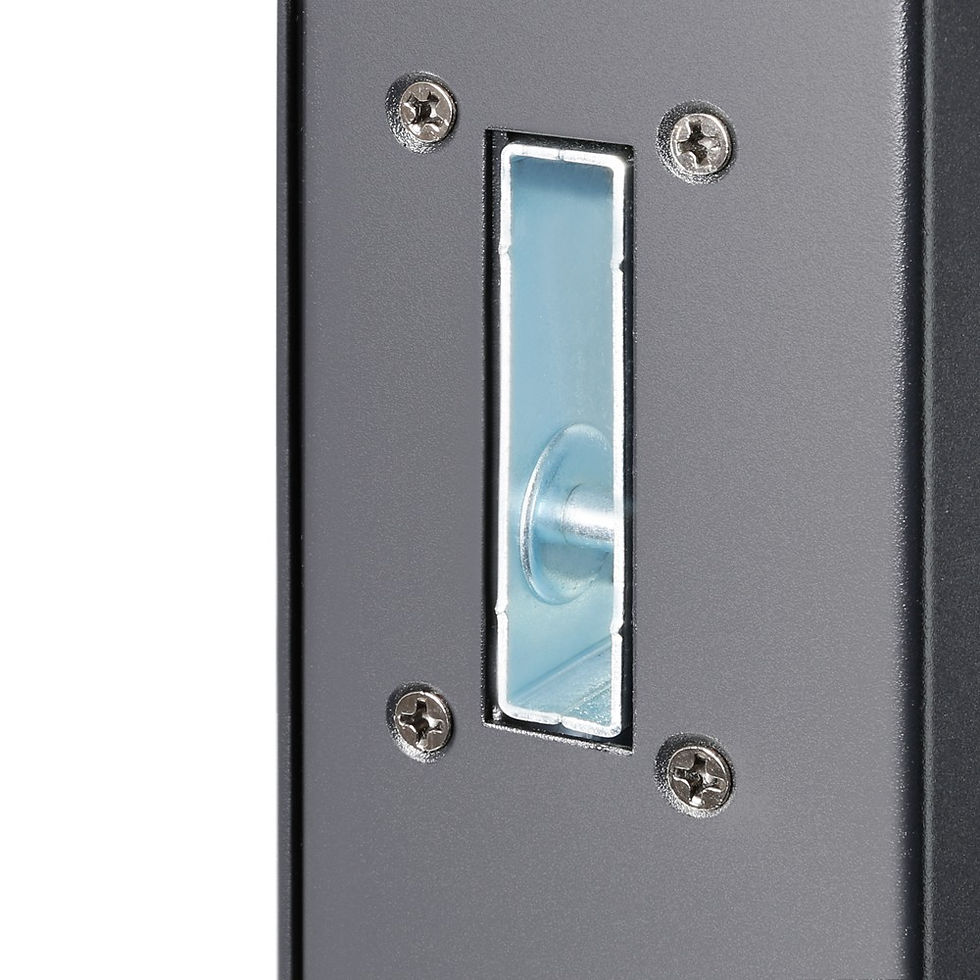

    The Matrix Panel includes four modes of DMX control, sound activation and 4 selectable dimming curves. It sports master, slave and standalone capability plus highly efficient convection cooling for noiseless operation. The ultra flat all-metal enclosure provides 3-pin DMX input and output, blue and white power connectors, a bright 4-button display and safety eye. The Matrix Panel comes with a mounting bracket and runs on all voltages from 100 – 240 volts AC.

  • Specification

    Product type LED Lighting Effects
    Type LED Effect Lights
    Colour spectrum warm white
    Colour temperature 3300 K
    Number of LEDs 25
    LED type 3 W Single LED
    Dispersion 40 °
    Refresh rate 3400 Hz
    DMX input XLR 3-pin male
    DMX output XLR 3-pin female
    DMX mode 10-channel , 2-channel , 28-channel , 5-channel
    DMX Functions Auto programs , Dimmer Fine , master dimmer , sound programs , Stroboscope
    Standalone modes Master / Slave mode , Music control
    Controls Down , Enter , Mode , Up
    Indicators 4-digit LED display
    Operating voltage 100 V AC - 240 V AC, 50 - 60 Hz
    Power consumption 100 W
    Fuse F3AL / 250 V
    Power connector Blue and white power I/O
    Housing material metal
    Cabinet colour Black
    Cooling Convection
    Operating Temperature 10 - 40 °C
    Illuminance 6100lx @ 1m
    Width 580 mm
    Height 580 mm
    Depth 67 mm
    Weight 8 kg
    Features swivel bracket , 2 x omega mounting , LED MATRIX PANEL , safety eyelet
