Wireless Microphone System with 2 x Condenser handheld microphone


Item No.: LDWIN42HHC2B5


Due to the changed situation in the area of general frequency allocations for the operation of wireless systems starting in 2015, LD Systems decided to develop the even more flexible and highly professional WIN 42 wireless system . With its outstanding audio quality, the LD Systems WIN 42 UHF system offers numerous potential applications for live performances and permanent installations. The working UHF frequency range is 516 MHz to 558 MHz . Both the handheld microphone and belt pack transmitter versions provide any vocalist, speaker or instrumentalist optimal transmission of his or her performance with the greatest possible freedom of movement. By means of a threaded connection, the microphone head of the handheld transmitter can be swapped quickly and easily (dynamic and condenser capsules). The system has more than 1680 freely selectable frequencies and thus makes it possible to operate up to 20 systems simultaneously . The "channel scan" function assists you in finding and tuning to a transmission frequency without interference. This frequency is then transmitted simply and conveniently from receiver to transmitter via an infrared link. The transmitting power is adjustable in 3 stages (10, 30, 50 mW) directly on the microphone, permitting adaptation to any environment. The True Diversity receiver houses numerous system features, for example, a transmitter battery status indicator on the receiver display, an indicator for the (transmitter) "Mute On/Off" function on the receiver display, 4 EQ presets that are switchable at the receiver, and much more. A highly professional system embodying the outstanding value-for-money that is so typical for LD Systems. UHF frequency range 516 - 558 MHz 1680 frequencies 20 groups with 577 fixed frequencies user bank with 1680 freely selectable frequencies in 25 kHz increments 255 addresses selectable channel scan true diversity receiver interchangeable microphone capsules (dynamic / condenser)

  • Specification

    Product type Wireless Microphone Systems
    Type Headsets


    LDWS100RK - LD Systems WIN 42 HHC 2 B 5 19" Rack Kit

    Product type Wireless Microphone System Accessories
    Type 19" Rack Kits
    Colour Black
    Material Steel
    Surface Powder coated
    Weight 0,2 kg


    LDWIN42R2B5 - LD Systems WIN 42 HHC 2 B 5 Double receiver

    Type Receivers
    Modulation Type FM
    Channels 2 x 1680
    Groups 2 x 20 groups + 1 user group
    Antenna inputs 2
    Antenna connector BNC
    Noise reduction Squelch
    Transmission optimization address allocation
    Total Harmonic Distortion (THD) < 1 %
    Signal-to-noise ratio > 100 dB
    Audio output, balanced 2 x XLR
    Controls 2 x menu
    Audio output, unbalanced 2 x 6.3 mm TS
    Audio mix output, unbalanced 6.3 mm jack
    Max. output level + 10 dBu
    Headphones ouput 2
    Headphones outputs 6.3 mm TRS
    Indicators 2 x multifunction LC display
    Operating voltage External Power Supply
    Operating voltage 13.5 V DC
    Width 480 mm
    Height 44 mm
    Depth 190 mm
    Weight 2,4 kg
    Accessories (included) User's manual
    Other features IR frequency synchronisation

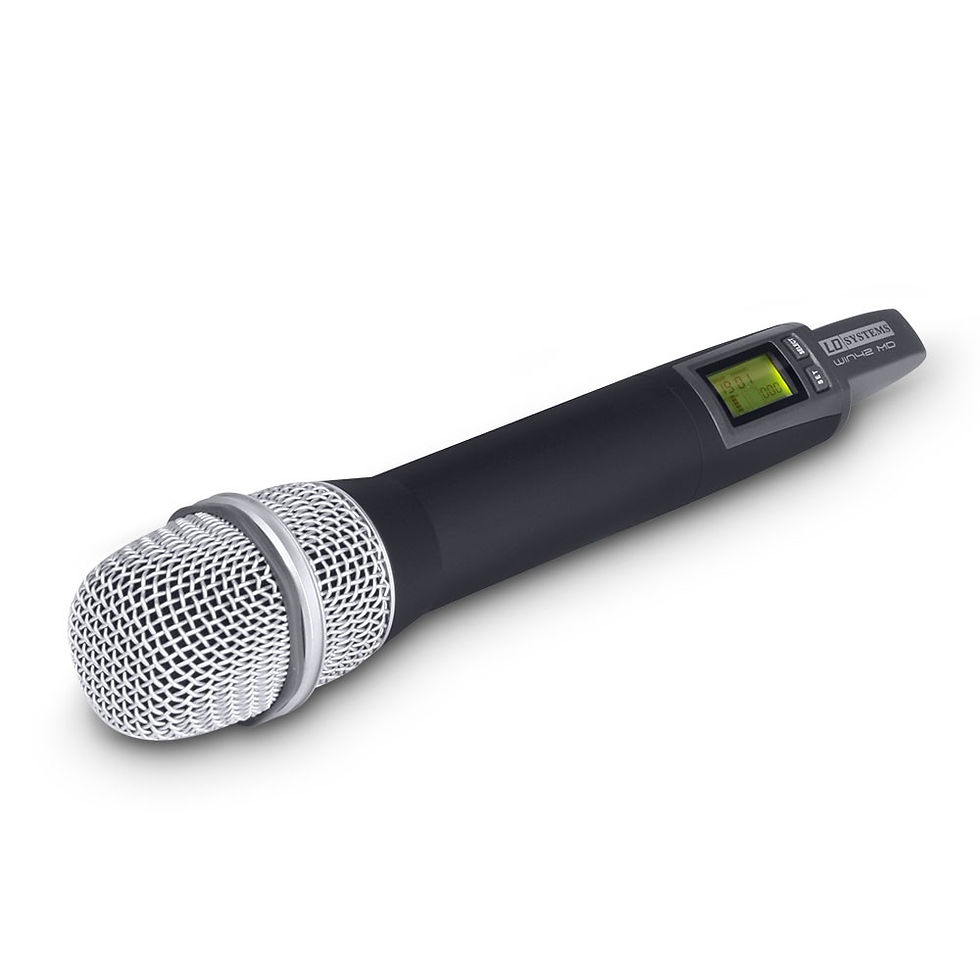

    LDWIN42MCB5 - LD Systems WIN 42 HHC 2 B 5 Condenser handheld microphone

    Transmission frequency range 516 - 558 MHz
    Channels 1680
    Groups 20 groups + 1 user group
    Microphone type condenser
    Directivity Cardioid
    Frequency response 60 - 16.000 Hz
    Rated HF output power Variable (10, 30, 50 mW)
    Controls Set
    Operating time >13 h (with alkaline batteries)
    Length 212 mm
    Diameter 44 mm
    Indicators multifunction LC display
    Operating voltage 2 x AA battery
    Weight 0,36 kg
    Other features incl. batteries
