LD SYSTEMS WIN 42 HBH2

LD SYSTEMS WIN 42 HBH2

Wireless Microphone System with Dynamic Handheld Microphone



Item No.: LDWIN42HBH2



Due to the changed situation in the area of general frequency allocations for the operation of wireless systems starting in 2015, LD Systems decided to develop the even more flexible and highly professional WIN 42 wireless system. With its outstanding audio quality, the LD Systems WIN 42 UHF system offers numerous potential applications for live performances and permanent installations. The working UHF frequency range is 734 MHz to 776 MHz. Both the handheld microphone and belt pack transmitter versions provide any vocalist, speaker or instrumentalist optimal transmission of his or her performance with the greatest possible freedom of movement. By means of a threaded connection, the microphone head of the handheld transmitter can be swapped quickly and easily (dynamic and condenser capsules). The system has more than 1680 freely selectable frequencies and thus makes it possible to operate up to 20 systems simultaneously. The "channel scan" function assists you in finding and tuning to a transmission frequency without interference. This frequency is then transmitted simply and conveniently from receiver to transmitter via an infrared link. The transmitting power is adjustable in 3 stages (10, 30, 50 mW) directly on the microphone, permitting adaptation to any environment. The half-rack True Diversity receiver houses numerous system features, for example, a transmitter battery status indicator on the receiver display, an indicator for the (transmitter) "Mute On/Off" function on the receiver display, 4 EQ presets that are switchable at the receiver, and much more. A highly professional system embodying the outstanding value-for-money that is so typical for LD Systems. UHF frequency range 734 - 776 MHz 1680 frequencies 20 groups with 577 fixed frequencies user bank with 1680 freely selectable frequencies in 25 kHz increments 255 addresses selectable channel scan true diversity receiver interchangeable microphone capsules (dynamic / condenser) Receiver display volume radio frequency level antenna A/B audio level battery status of transmitter transmitter sync via infrared squelch setting in menu equalizer setting in menu naming template in menu 10 sets storable lockable menu balanced XLR output, unbalanced 6.3 mm jack adjustable output adjustable headphone output Transmitter Display battery status RF power AF power additional system information

  • Specification

    Product type Wireless Microphone Systems
    Type Headsets / Handhelds



    LDWIN42MD - LD Systems WIN 42 HBH2 Dynamic handheld microphone

    Product type Wireless Microphone System Accessories
    Type Microphones
    Microphone type Dynamic
    Controls Set
    Operating time >13 h (with alkaline batteries)
    Weight 0,38 kg
    Length 255 mm
    Diameter 52 mm
    Other features Interchangeable microphone head



    LDWS100RK - LD Systems WIN 42 HBH2 19" Rack Kit

    Type 19" Rack Kits
    Colour Black
    Material Steel
    Surface Powder coated
    Weight 0,2 kg



    LDWIN42BP - LD Systems WIN 42 HBH2 Bodypack transmitter for LD WIN 42 BPH wireless microphone system

    Type Belt Packs
    Transmission frequency range 734 - 776 MHz
    Channels 1680
    Groups 20 groups + 1 user group
    Inputs Mini-XLR (3-pin) with phantom power (for headset)
    Frequency response 60 - 16.000 Hz
    Rated HF output power Variable (10, 30, 50 mW)
    Indicators power/battery status low (LED)
    Controls select
    Operating voltage 2 x AA battery
    Operating time >14 h (with alkaline batteries)
    Width 63 mm
    Height 87 mm
    Depth 25 mm
    Weight 0,1 kg
    Other features Transmission power adjustable in 3 stages



    LDWS100MH1 - LD Systems WIN 42 HBH2 Headset

    Type Headsets
    Directivity Cardioid
    Frequency response 20 - 20.000 Hz
    Nominal impedance 680 Ohm(s)
    Phantom power requierements 5 V
    Microphone input Mini-XLR (3-pin, female)
    Weight 0,049 kg
    Accessories (included) Foam windscreen

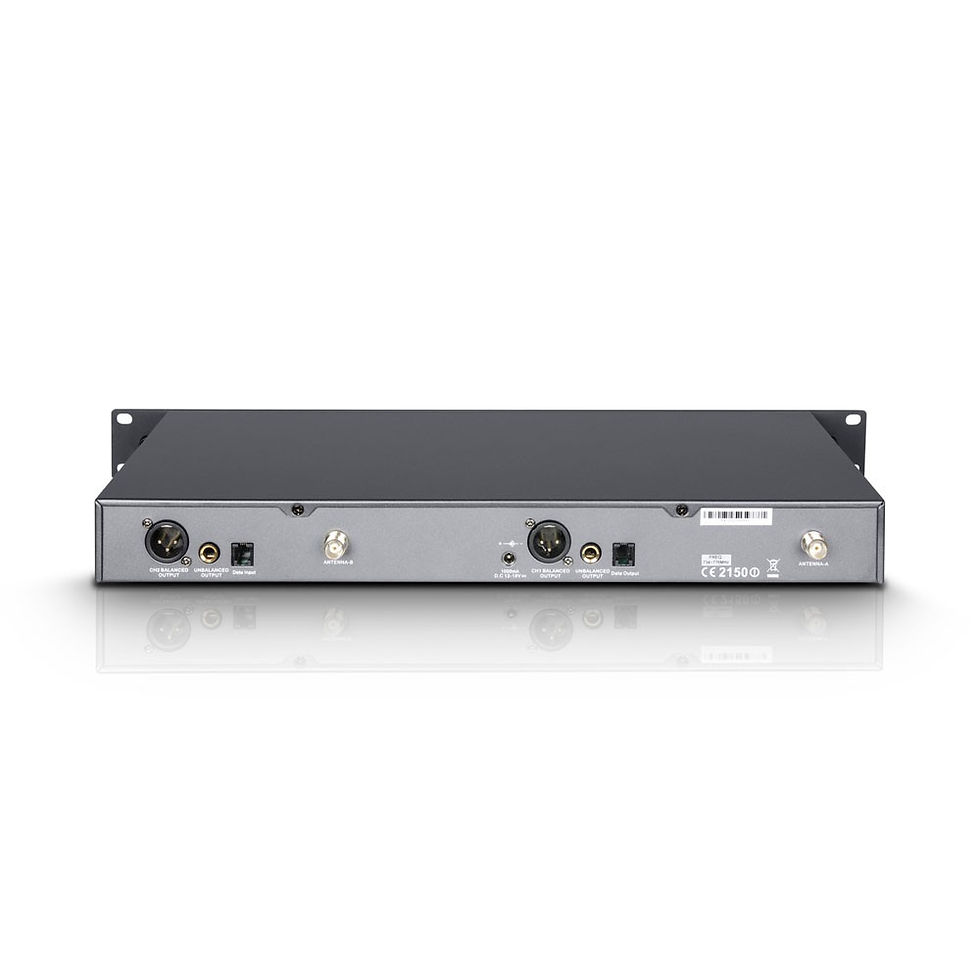

    LDWIN42R2 - LD Systems WIN 42 HBH2 Dual receiver

    Type Receivers
    Transmission frequency range 734.000 - 776,000 MHz
    Modulation Type FM
    Channels 2 x 1680
    Groups 2 x 20 groups + 1 user group
    Antenna inputs 2
    Antenna connector TNC
    Noise reduction Squelch
    Transmission optimization address allocation
    Total Harmonic Distortion (THD) < 1 %
    Signal-to-noise ratio > 100 dB
    Indicators 2 x multifunction LC display
    Audio output, balanced 2 x XLR
    Controls 2 x menu
    Operating voltage External Power Supply
    Audio output, unbalanced 2 x 6.3 mm TS
    Audio mix output, unbalanced 6.3 mm jack
    Width 480 mm
    Height 44 mm
    Depth 190 mm
    Weight 2,4 kg
    Max. output level + 10 dBu
    Headphones ouput 2
    Headphones outputs 6.3 mm TRS
    Other features channel search function
    Operating voltage 13.5 V DC
    Accessories (included) User's manual
