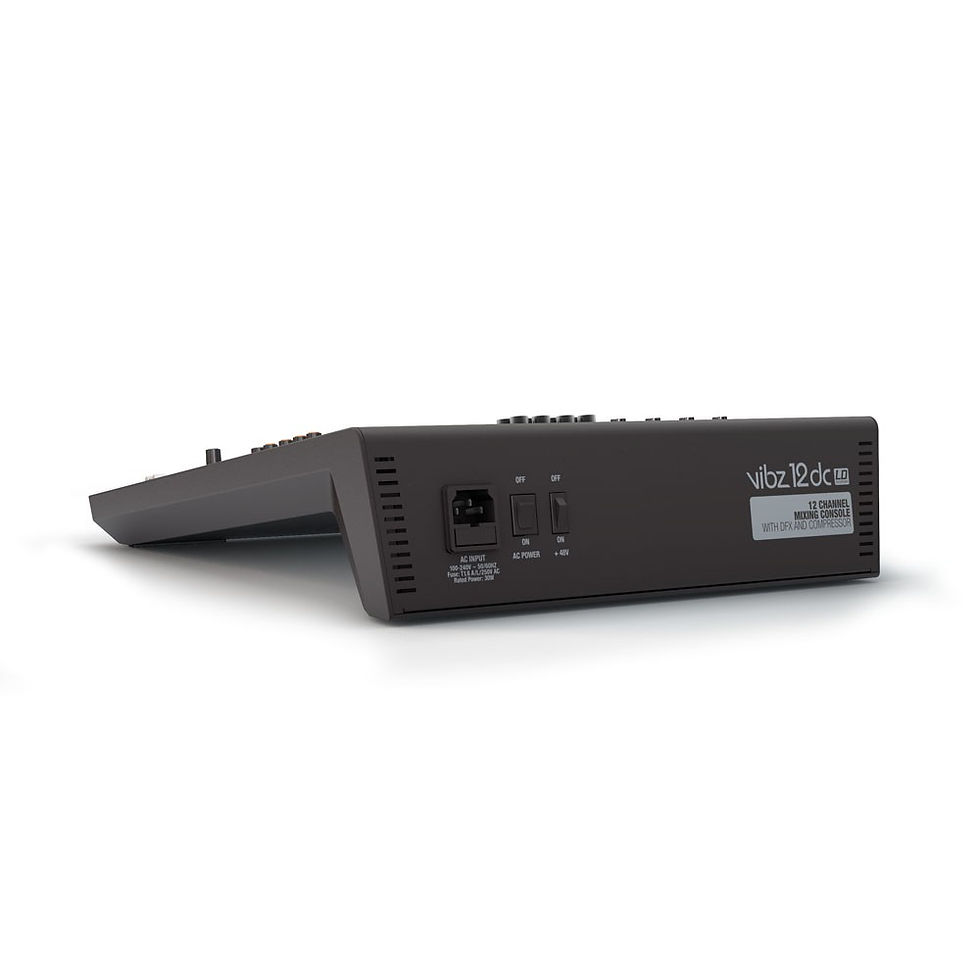

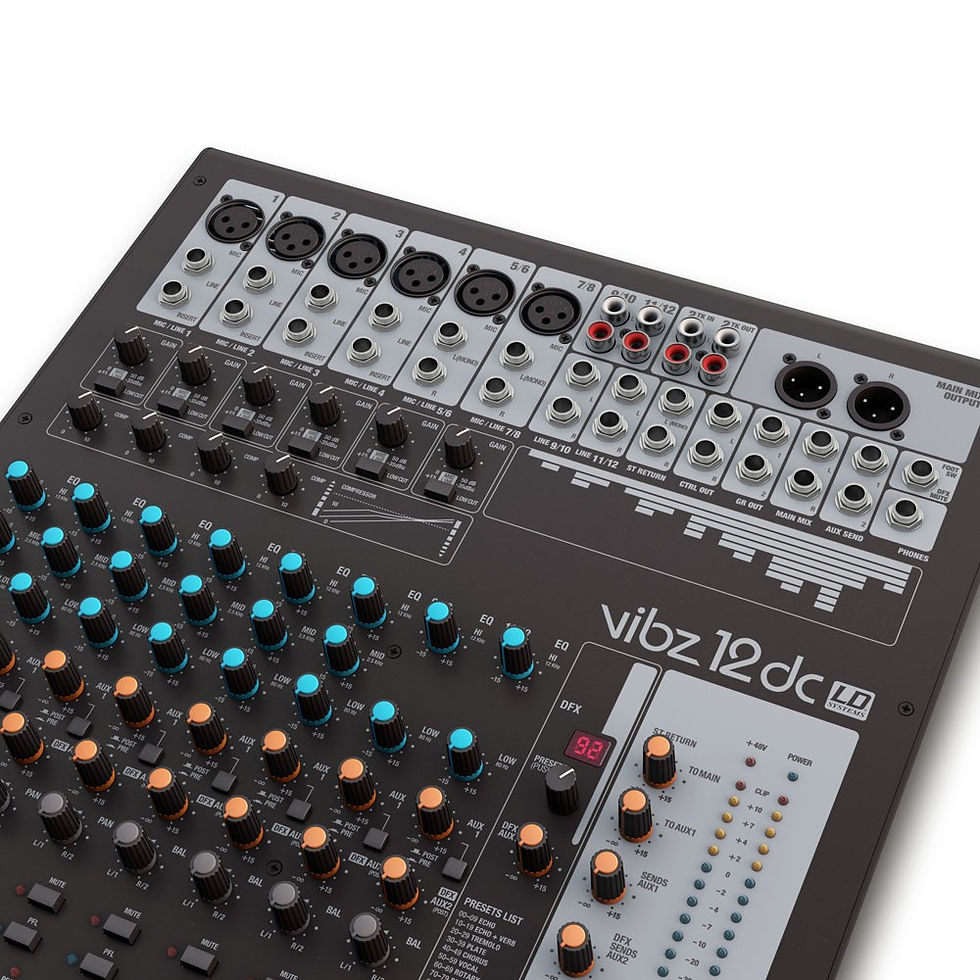

LD SYSTEMS VIBZ 12 DC

LD SYSTEMS VIBZ 12 DC

$0.00Price

12 Channel Mixing Console with DFX and Compressor



Item No.: LDVIBZ12DC



  • 12-channel mixer with 6 microphone channels

  • 4 stereo line inputs

  • Effective 3-band EQ

  • 2 stereo channels with 2-band EQ

  • Sliding adjustable compressor

  • Digital Effects Section with 100 Presets

  • Master, Monitor, Groups and headphone outputs

  • Built in power supply
  • Description

    The VIBZ 12 is a versatile mixer with six balanced microphone inputs featuring high quality preamplifiers, a low-cut filter, an effective 3-band EQ with conveniently selected mids and switchable phantom power.



    Four microphone channels can be processed separately using the built-in compressor for an effective control of dynamics; two more can alternatively be used as a stereo line channels. The other stereo channels are equipped with 2-band EQs.



    The master section of the mixer includes two effects loops, balanced XLR outputs, group and monitor outputs and a headphone jack. The VIBZ 12 also has RCA connectors for recording and playback devices and a digital Digital Effects Section with 100 presets.



    With key features such as the PFL function or the Mute buttons and its natural, transparent sound, the VIBZ 12 is the perfect choice for live performances, installations and demanding home recording applications.

  • Specification

    Product type Mixers
    Type Live
    Channels 12



    Mono Channels:

    Mono Mic and Line Input Channels 4
    Mono Mic input connectors 6.3 mm TRS , XLR
    Mono Mic Input Type electronically balanced
    Mono Mic Input Frequency Range 10 - 45000 Hz
    Amplification Range mono Mic Input 0 - 50 dB
    Mono Mic Input Input THD-N 0.0058%
    Mono Mic Input Impedance 4k Ohm(s)
    Mono Mic Input S/N Ratio 113 dB
    Mono Line Input Type electronically balanced
    Mono Line Input Frequency Range 10 - 45000 Hz
    Amplification Range mono Line Input 0 - 50 dB
    Mono Line Input Input THD-N 0.0045 %
    Mono Line Input Impedance 21k Ohm(s)
    Mono Line Input S/N Ratio 116 dB
    Mono Channel Equalizer High +/- 15 dB @ 12000 Hz
    Mono Channel Equalizer Mid +/- 15 dB @ 2,500 Hz
    Mono Channel Equalizer Low +/- 15 dB @ 80 Hz
    Controls Mono Mic and Line Input Channels 3-band EQ (High, Mid, Low) , AUX 1 umschaltbar Pre/Post , AUX 2 (DFX) Post , Compressor , DFX/AUX 1 , Gain , Low Cut (75 Hz) , PFL
    Phantom power 48 V DC switchable



    Stereo Channels:

    Stereo Line Input Channels 4
    Stereo Line Input Connectors 6.3 mm TRS , RCA
    Stereo Line Input Type electronically balanced , unbalanced
    Stereo Line Input Frequency Range 10 - 45000 Hz
    Amplification Range stereo Line Input 0 - 50 dB
    Stereo Line Input Input THD-N 0.0045 %
    Stereo Line Input Impedance 3,7k Ohm(s)
    Stereo Line Input S/N Ratio 116 dB
    Stereo channel equalizer treble +/- 15 dB @ 12000 Hz
    Stereo channel equalizer mids +/- 15 dB @ 2500 Hz
    Stereo channel equalizer bass +/- 15 dB @ 80 Hz
    Controls Stereo Line Input Channels 2-band EQ (High,Low) , 3-band EQ (High, Mid, Low) , AUX 1 umschaltbar Pre/Post , AUX 2 (DFX) Post , Balance , Channel Volume , DFX/AUX 1 , Gain , Low Cut



    Main Section:

    AUX / Effects Send Channels 2
    AUX / Effects Send Connectors 6.3 mm TRS
    Stereo AUX Return Channels 1 x stereo
    Stereo AUX Return Connectors 6.3 mm TRS
    Stereo Tape Out Channel 1 x stereo
    Stereo Tape Out Connectors 2 x RCA (Cinch)
    Stereo Tape In Channel 1 x stereo
    Stereo Tape In Connenctors 2 x RCA (Cinch)
    Balanced Stereo Main Out 1
    Balanced Stereo Main Out Connectors XLR
    Balanced Stereo Main Out Impedance 120 Ohm(s)
    Max. Balanced Stereo Main Out Level 23 dBu
    Stereo Control Room Out 1
    Stereo Control Room Out Connectors 6.3 mm TRS
    Headphones ouput 1
    Headphones outputs 6.3 mm TRS
    Digital Effects Processor Yes, 24-bit AD/DA Resolution
    Number of Presets 100
    Footswitch Connector DFX Mute 6.3 mm TRS
    Main section controls 2-track Assignment (Main, Contr. Room) , 2-track In Volume , AUX 2 Send Volume , CTRL / Phones assignment (Main/Group 1-2) , DFX Mute Schalter , DFX TO AUX Volume , DFX To Main Volume , Group 1-2 assignment to Main MIX , Group 1-2 Volume , Master Volume , PFL , Phantom Power , Power , presets , Stereo Return to AUX Volume , Stereo Return to MAIN Volume , Volume Control CTRL / Phones
    Indicators DFX Peak , DFX TO MAIN , PFL , Phantom Power , Power
    Operating voltage 100 V AC - 240 V AC, 50 - 60 Hz
    Width 350 mm
    Height 98 mm
    Depth 440 mm
    Weight 4,3 kg
