LD SYSTEMS VA 4

LD SYSTEMS VA 4

$0.00Price
Dual 4" Line Array Speaker

Item No.: LDVA4

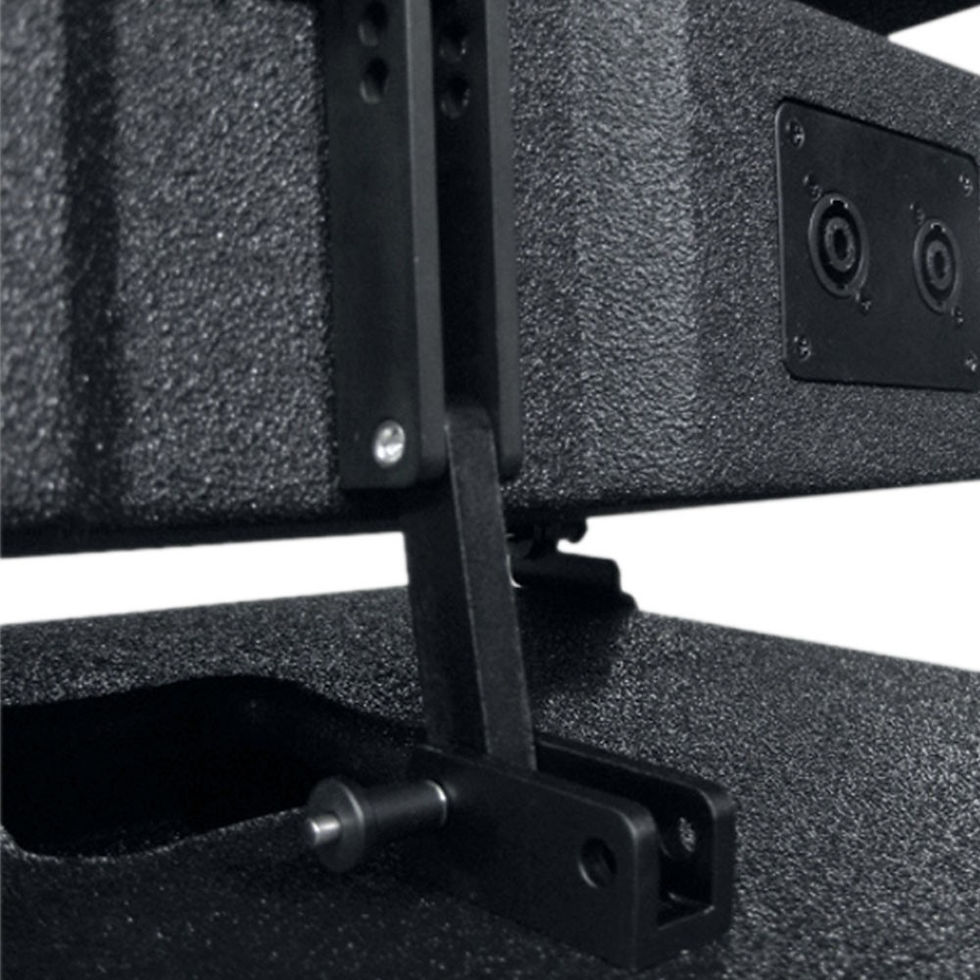

LD Systems VA4 Line Array Speaker The LD Systems VA4 is a lightweight, ultra compact 2 x 4" line array speaker cabinet for configurations with an 80Hz - 19kHz frequency response. The dual 4" woofers with high efficiency neodymium magnets and Kevlar cones have a power handling capacity of 200W continuous. Coupled to a 1" waveguide, the neodymium high frequency compression driver features a 1.35" voice coil, protection circuit and a 75W continuous rating. Individual element dispersion is 120° x 10° over a wide frequency range. The VA4 cabinet is made from 12mm birch ply painted in hard-wearing, water-resistant Dura-Coat LX. It is equipped with Neutrik NL-4 connectors, rigging hardware and easy angle adjustment from 0° to 7.5° in three 2.5° steps. The VA4 is designed both for flying and ground stack applications. For low frequency extension the dual 12“ Bandpass subwoofer V212B and the V215B 2x15” Bass reflex subwoofer perfectly complement the VA4. Ease GLL-files and controller setups for the LD Systems DPA260 are available online for optimum array configuration and easy startup.

  • Specification

    Product type Line Arrays
    Design 2-way speaker



    Woofer characteristics

    Low/mid driver dimensions 2 x 4 "
    Woofer size 2 x 101.6 mm
    Woofer type Kevlar
    Woofer magnet Neodymium
    Woofer brand Custom-made



    HF Driver characteristics

    Horn Waveguide
    HF driver dimensions 1 "
    HF Driver Size 25.4 mm
    HF driver magnet Neodymium
    HF driver brand Custom-made
    HF driver voice coil 1.35 "
    HF Driver Voice Coil 34.3 mm



    other features

    Dispersion (H x V) 120 x 10 °
    Load rating (RMS) 200 W
    HF driver RMS power 75 W
    Frequency response 80 - 19000 Hz
    Min. crossover frequency (Hz) 2100 Hz
    SPL (1W/1m) 90 dB
    Max. SPL 113 dB
    Impedance 16 Ohm(s)
    Loudspeaker protection HF Driver
    Tilt angle 0 / 2.5 / 5 / 7.5 °
    Loudspeaker inputs Neutrik Speakon, 4-pole
    Speaker output connections Neutrik Speakon, 4-pole
    Cabinet material 18 mm Birch Plywood
    Cabinet surface Dura Coat LX Texture Paint
    Cabinet construction vented
    Width 480 mm
    Height 139 mm
    Depth 261 mm
    Weight 9,6 kg
    Features Integral rigging hardware , Steel handles
