LD SYSTEMS U518 HBH 2

LD SYSTEMS U518 HBH 2

Wireless Microphone System with Bodypack, Headset and Dynamic Handheld Microphone



Item No.: LDU518HBH2



  • True diversity UHF wireless system

  • Shock-mounted dynamic and condenser microphone capsules

  • Automatic channel scan

  • Easy one-touch infrared frequency syncing

  • Pilot tone squelch circuit prevents noise

  • Switchable RF transmitter output (2, 10 or 30 mW)

  • Rugged enclosures

  • High-contrast OLED display
  • Description

    The U500® Series vocal sets were developed in Germany to bring you affordable professional technology and sound quality. The radio systems for vocals and speech deliver impressive performance and high reliability, which will certainly exceed your expectations. We have designed the range specifically for professional users to ensure that your performance is an impressive and emotional experience.



    Selectable transmit power up to 30 mW provides the U500® vocal sets with a free-field range of over 100 metres. They are available in three frequency bands: 584 - 608 MHz and 655 - 679 MHz, where 12 systems can be operated simultaneously, and 823 - 832 MHz + 863 - 865 MHz, where six systems can be operated at the same time. The True Diversity UHF wireless systems are equipped with an automatic scan facility to find the best free frequency, and convenient one-touch infrared synchronisation of transmitter and receiver to facilitate easy set up.



    High-contrast OLED displays provide an excellent overview of functions, with indicators for group, channel, radio frequency, and signal strength and battery status. You can even enter individual usernames. In addition to the squelch function, the transmitter’s silent pilot tone ensures fail-safe operation. It protects against interference and mutes the receiver if signals without this tone are present. The U500®’s efficient technology and high-quality components provide clear, distortion-free transmission without latency or artefacts. Low power consumption means that the transmitter can run for up to 10 hours with 2 x AA batteries.



    The U500® Series vocal sets are available with hand-held transmitters, headsets, lavalier microphones and single or double receivers. The hand-held transmitters feature interchangeable microphone capsules to suit singing or speaking.



    Overview of frequency ranges of vocal sets:

    • U505 // 584 - 608 MHz // 12 systems can be used simultaneously
    • U506 // 655 - 679 MHz // 12 systems can be used simultaneously
    • U508 // 823 - 832 MHz + 863 - 865 MHz // six systems can be used simultaneously
    • U506 UK (Channel 38) // 606 – 614 MHz // six systems can be used simultaneously
    • U518 // 1785 – 1800 MHz // four systems can be used simultaneously
  • Specification

    Product type Wireless Microphone Systems
    Type Headsets / Handhelds
    Transmission frequency range 1785 - 1800 MHz
    Weight 5,3 kg



    LDU518MD - LD Systems U518 HBH 2 Dynamic handheld microphone

    Product type switchable gain
    Type Microphones
    Frequency response 60 - 16000 Hz
    Microphone type Dynamic
    Directivity Cardioid
    Signal-to-noise ratio >95 dB
    Rated HF output power Variable (10, 30, 50 mW)
    Weight 0,25 kg
    Length 257 mm
    Diameter 51 mm
    Other features interchangeable capsule



    LDU518R2 - LD Systems U518 HBH 2 Dual receiver

    Product type Wireless Microphone System Accessories
    Type Receivers
    Modulation Type FM
    Frequency response 30 - 16000 Hz
    Channels 96 (8 groups of 12 channels)
    Groups 8
    Antenna inputs 2
    Antenna connector BNC
    Noise reduction Squelch
    Signal-to-noise ratio > 100 dB
    Total Harmonic Distortion (THD) < 0.1 %
    Controls Up
    Audio output, balanced 2 x XLR
    Indicators 2 x OLED Display
    Audio output, unbalanced 2 x 6.3 mm TS
    Audio mix output, balanced XLR
    Accessories (included) Power supply
    Width 483 mm
    Audio mix output, unbalanced 2 x 6.3 mm TS
    Height 45 mm
    Depth 5.2 mm
    Max. output level +20 dBu (balanced) dBu
    Weight 2,05 kg
    Headphones ouput 1
    Headphones outputs 6.3 mm TRS
    Other features IR frequency synchronisation

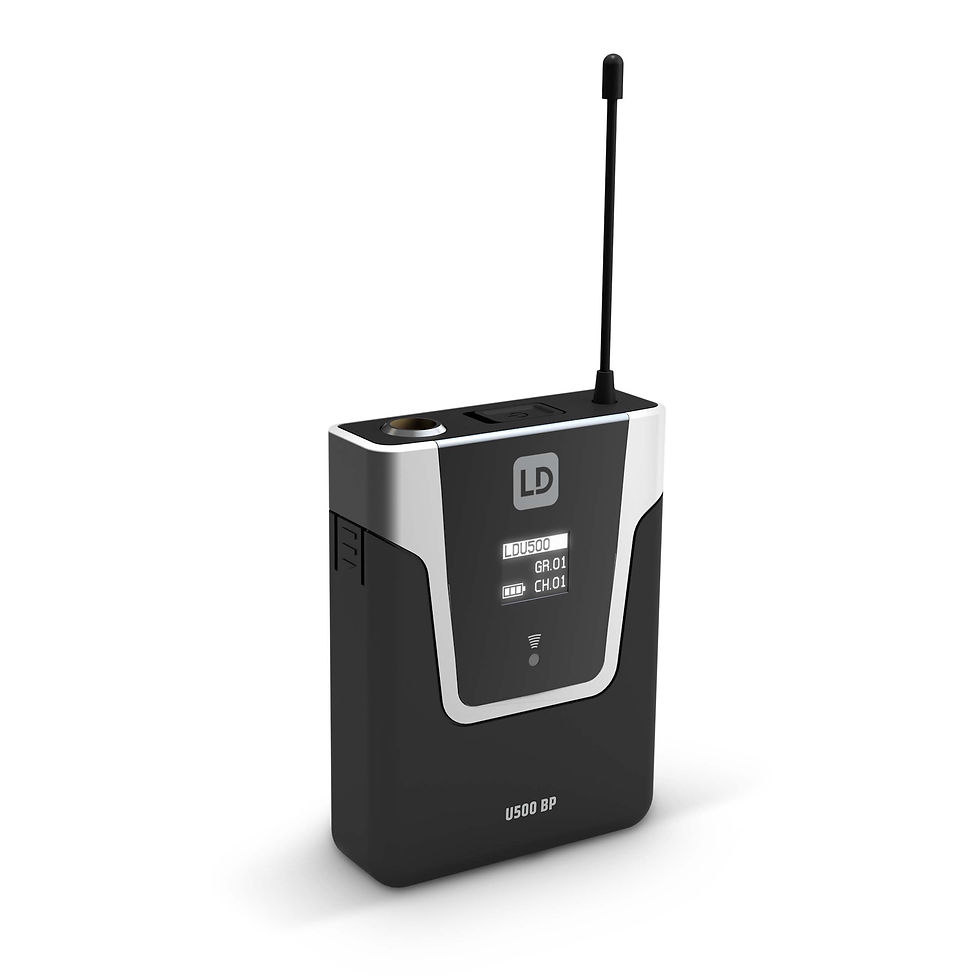

    LDU518BP - LD Systems U518 HBH 2 Bodypack transmitter

    Type Belt Packs
    Inputs Mini-XLR (3-pin)
    Signal-to-noise ratio >90 dB
    Controls select
    Rated HF output power Variable (2mW, 10mW, 30mW)
    Indicators OLED Display
    Operating voltage 2 x AA battery
    Operating time >10 h (with alkaline batteries)
    Width 65 mm
    Height 86 mm
    Depth 23 mm
    Weight 0,09 kg
    Other features Wireless Microphone System Accessories



    LDWS100MH1 - LD Systems U518 HBH 2 Headset

    Type Headsets
    Frequency response 20 - 20.000 Hz
    Nominal impedance 680 Ohm(s)
    Phantom power requierements 5 V
    Microphone input Mini-XLR (3-pin, female)
    Accessories (included) Foam windscreen
    Weight 0,049 kg
