LD SYSTEMS U508 BPHH 2

LD SYSTEMS U508 BPHH 2

Wireless Microphone System with 2 x Bodypack and 2 x Headset beige



Item No.: LDU508BPHH2



  • True diversity UHF wireless system

  • Shock-mounted dynamic and condenser microphone capsules

  • Automatic channel scan

  • Easy one-touch infrared frequency syncing

  • Pilot tone squelch circuit prevents noise

  • Switchable RF transmitter output (2, 10 or 30 mW)

  • Rugged enclosures

  • High-contrast OLED display
  • Description

    The U500® Series vocal sets were developed in Germany to bring you affordable professional technology and sound quality. The radio systems for vocals and speech deliver impressive performance and high reliability, which will certainly exceed your expectations. We have designed the range specifically for professional users to ensure that your performance is an impressive and emotional experience.



    Selectable transmit power up to 30 mW provides the U500® vocal sets with a free-field range of over 100 metres. They are available in three frequency bands: 584 - 608 MHz and 655 - 679 MHz, where 12 systems can be operated simultaneously, and 823 - 832 MHz + 863 - 865 MHz, where six systems can be operated at the same time. The True Diversity UHF wireless systems are equipped with an automatic scan facility to find the best free frequency, and convenient one-touch infrared synchronisation of transmitter and receiver to facilitate easy set up.



    High-contrast OLED displays provide an excellent overview of functions, with indicators for group, channel, radio frequency, and signal strength and battery status. You can even enter individual usernames. In addition to the squelch function, the transmitter’s silent pilot tone ensures fail-safe operation. It protects against interference and mutes the receiver if signals without this tone are present. The U500®’s efficient technology and high-quality components provide clear, distortion-free transmission without latency or artefacts. Low power consumption means that the transmitter can run for up to 10 hours with 2 x AA batteries.



    The U500® Series vocal sets are available with hand-held transmitters, headsets, lavalier microphones and single or double receivers. The hand-held transmitters feature interchangeable microphone capsules to suit singing or speaking.



    Overview of frequency ranges of vocal sets:

    • U505 // 584 - 608 MHz // 12 systems can be used simultaneously
    • U506 // 655 - 679 MHz // 12 systems can be used simultaneously
    • U508 // 823 - 832 MHz + 863 - 865 MHz // six systems can be used simultaneously
    • U506 UK (Channel 38) // 606 – 614 MHz // six systems can be used simultaneously
    • U518 // 1785 – 1800 MHz // four systems can be used simultaneously
  • Specification

    Product type Wireless Microphone Systems
    Type Headsets
    Transmission frequency range 823 - 832 MHz , 863 - 865 MHz
    Weight 5,8 kg

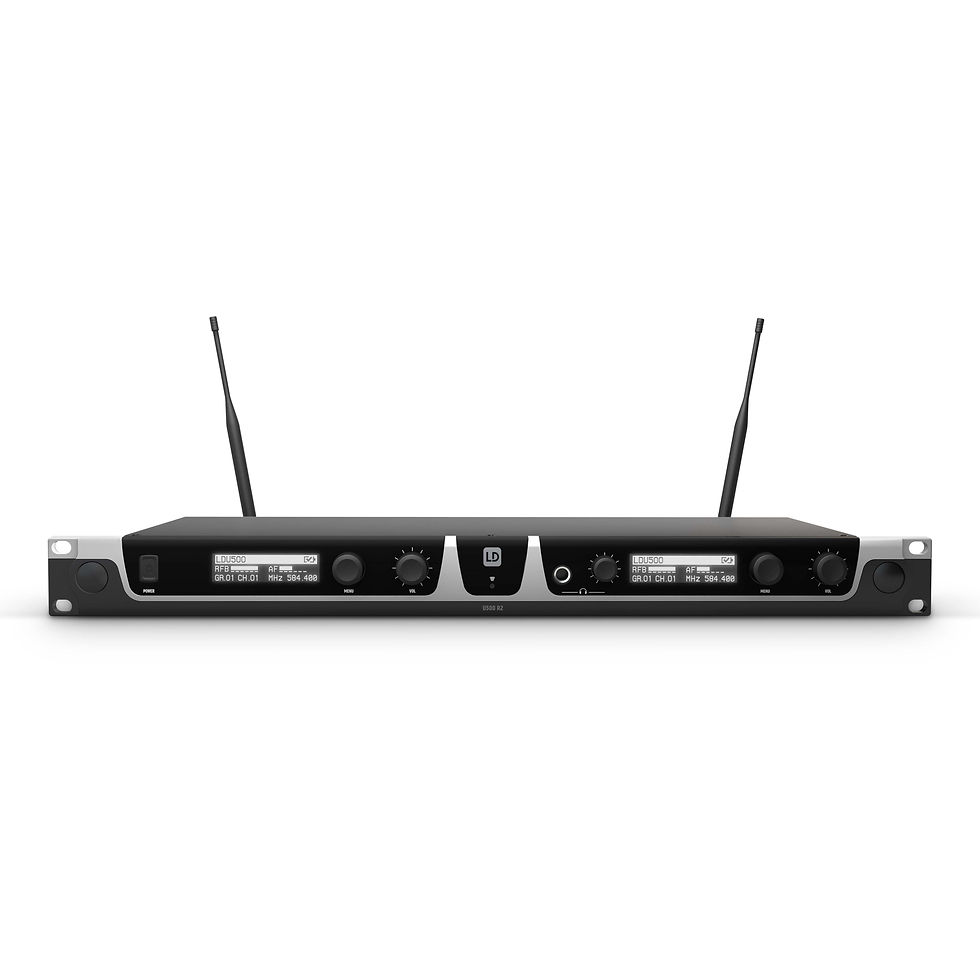

    LDU508R2 - LD Systems U508 BPHH 2 Dual receiver

    Product type Wireless Microphone System Accessories
    Type Receivers
    Modulation Type FM
    Frequency response 30 - 16000 Hz
    Channels 96 (8 groups of 12 channels)
    Groups 8
    Antenna inputs 2
    Antenna connector BNC
    Signal-to-noise ratio > 100 dB
    Noise reduction Squelch
    Total Harmonic Distortion (THD) < 0.1 %
    Controls volume
    Audio output, balanced 2 x XLR
    Indicators 2 x OLED Display
    Audio output, unbalanced 2 x 6.3 mm TS
    Audio mix output, balanced XLR
    Accessories (included) Rack kit
    Width 484 mm
    Audio mix output, unbalanced 2 x 6.3 mm TS
    Height 44 mm
    Depth 200 mm
    Max. output level +10 dBu
    Weight 2,24 kg
    Headphones ouput 1
    Headphones outputs 6.3 mm TRS
    Other features Pilot tone
    Operating voltage 12 V DC, 1000 mA

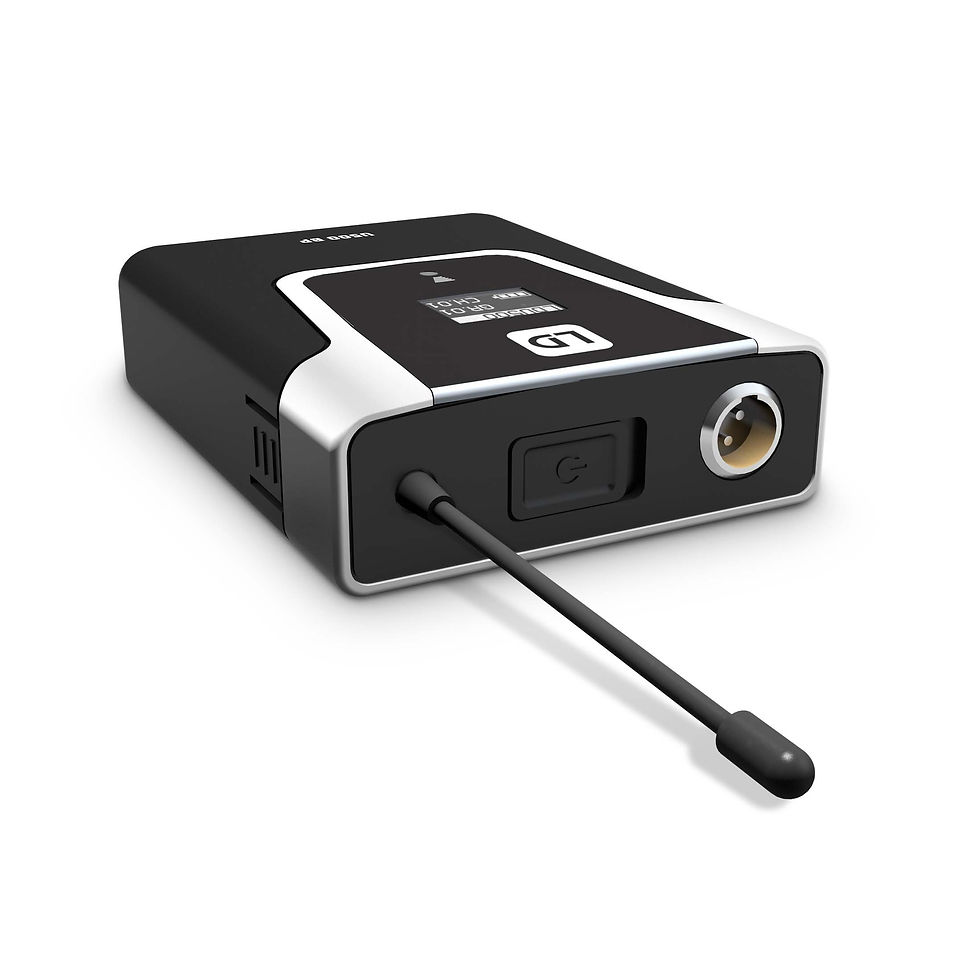

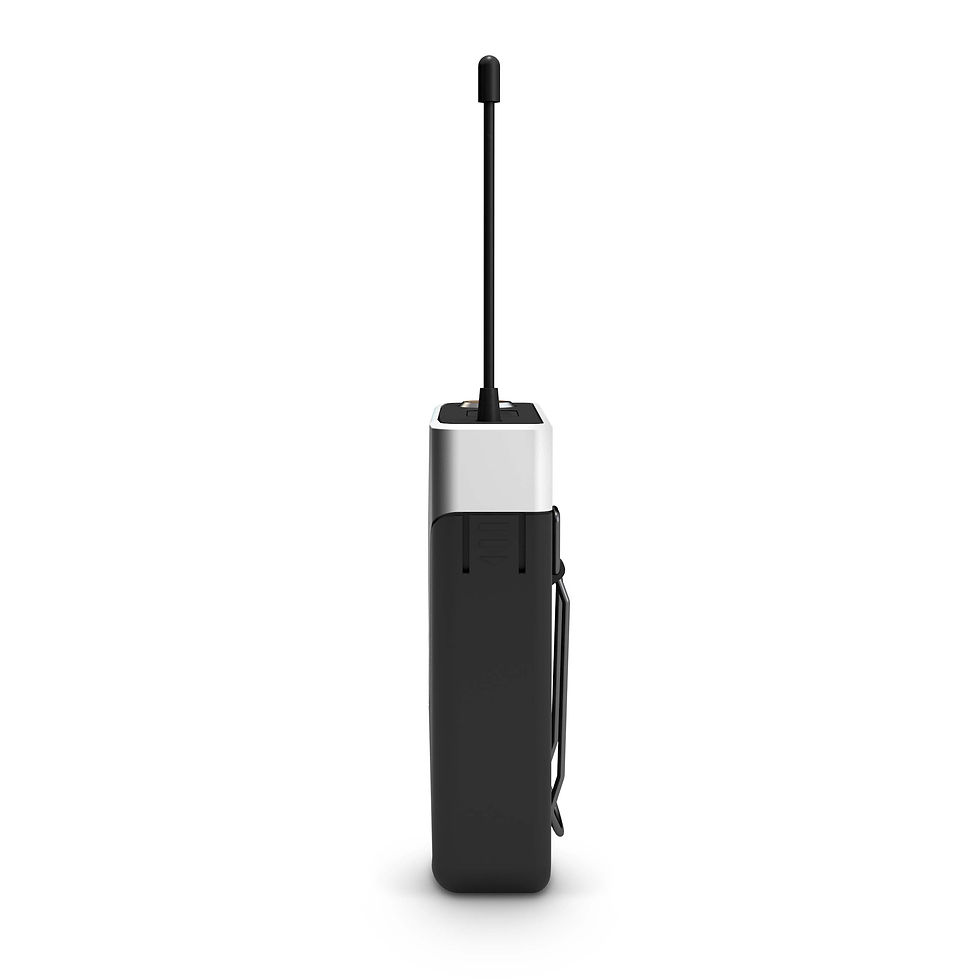

    LDU508BP - LD Systems U508 BPHH 2 Bodypack transmitter

    Type Bodypack
    Inputs Mini-XLR (3-pin)
    Signal-to-noise ratio >90 dB
    Rated HF output power Variable (2mW, 10mW, 30mW)
    Controls select
    Indicators OLED Display
    Operating voltage 2 x AA battery
    Operating time >10 h (with alkaline batteries)
    Width 65 mm
    Height 86 mm
    Depth 23 mm
    Weight 0,09 kg
    Other features switchable RF power

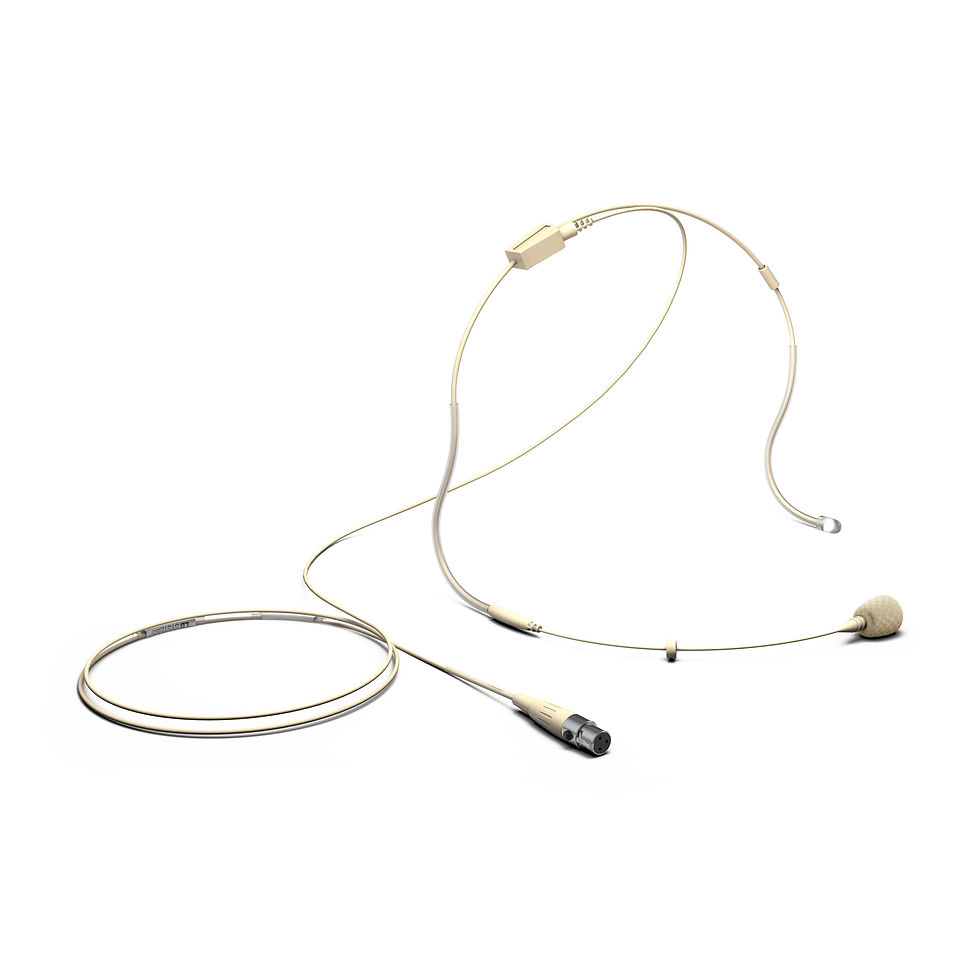

    LDWS100MH3 - LD Systems U508 BPHH 2 Headset beige-coloured

    Colour beige
    Frequency response 70 - 16.000 Hz
    Directivity Cardioid
    Nominal impedance 1400 Ohm(s)
    Max. SPL 125 dB
    Phantom power requierements 5 V
    Microphone input Mini-XLR (3-pin, female)
    Accessories (included) Foam windscreen
    Weight 0,2 kg
