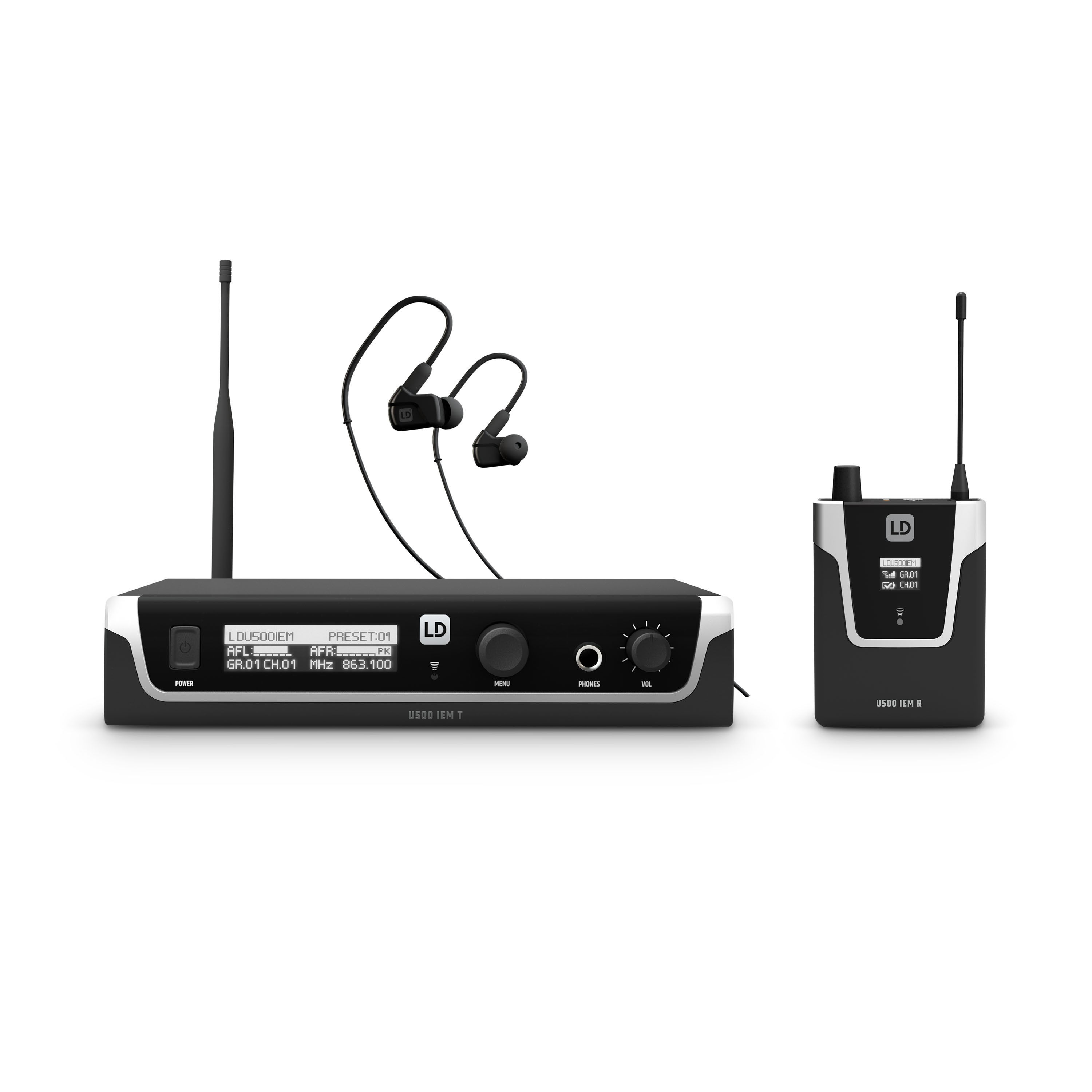

In-Ear Monitoring System with Earphones
Item No.: LDU506IEMHP
- Reliable in-ear monitoring with more than 100 m range
- 96 available channels
- 2, 10 or 30 mW ERP selectable transmission power
- Convenient infrared frequency syncing
- Individual user name assignment and memory for 10 custom presets
- Extended frequency response
- 3-band EQ with parametric mids
- Switchable limiter
- Stereo, focus and mono modes of operation
- High-contrast OLED display
- Transmitter with direct monitoring headphone output
- Bodypack receiver with three selectable squelch levels
- 10 h of bodypack receiver operation on two AA batteries
- Simultaneous operation of up to 12 systems
- U500® IEM transmitter compatible with U300® IEM bodypacks
Move freely on stage while the perfect monitor mix is delivered directly to your ears: the amazing performance and reliability of the U500® In-Ear Monitoring Systems will surpass your expectations for certain. Designed with the pro user in mind, they feature advanced technology, contemporary looks and straightforward operation.
U500® In-Ear Systems provide a selection of 96 channels and 2, 10 or 30 mW RF output power for a transmission range greater than 100 m. For quick and trouble-free setup, they allow for convenient infrared synchronisation of transmitter and receiver. U500® In-Ears sport high-contrast OLED displays and allow for individual user name assignment. In addition, you can save 10 custom presets.
To deliver pristine, precise audio U500® In-Ear Monitoring Systems include a 3-band EQ with parametric mids, a switchable limiter and a squelch circuit. They offer a choice of stereo or mono operation and a direct monitoring headphone output at the transmitter. They offer a choice of stereo or mono operation and a direct monitoring headphone output at the transmitter. With a signal-to-noise ratio greater than 95 dB and less than 0,3% THD, the U500® In-Ear's noise floor is exceptionally low.
Drawing little current only, the U500® Bodypack Receiver operates up to 10 hours on two AA batteries. A volume control allows convenient in-performance monitoring level adjustment. Three selectable squelch levels ensure optimum performance at all times.
U500® In-Ear Monitoring Systems are available for operation in five frequency ranges. The 470 - 490 MHz, 514 - 542 MHz, 584 - 608 MHz and 655 - 679 MHz bands permit running up to 12 systems simultaneously. In the 823 - 832 MHz + 863 - 865 MHz range six systems can be operated at the same time providing wireless monitoring for your entire band.
Product type In-ear Monitoring Type Set Weight 0,755 kg
LDU506IEMR - LD Systems U506 IEM HP Receiver
Product type In-ear Monitoring Accessories Type Receivers Transmission frequency range 655 - 679 MHz Channels 12 Transmission method FM, mono/stereo Frequency response 40 - 16000 Hz Audio output 3.5 mm TRS Max. audio output level 80 mW @ 33 Ohm mW Indicators RF (LED) Operating time < 10 Std. Antenna connector Fixed to housing Controls volume Operating voltage 2 x 1.5 V AA Features battery status LED Width 64 mm Height 100 mm Depth 24 mm Weight 0,095 kg Accessories (included) Antenna
LDU506IEMT - LD Systems U506 IEM HP Transmitter
Type Transmitters Modes of operation mono/stereo Rated HF output power 30 mW Signal-to-noise ratio 93 dB Total Harmonic Distortion (THD) 0.3 % Dynamic range 88 dB Inputs 2 Input connectors XLR (balanced) Input impedance (kOhms) 12 kOhm Antenna connector BNC Controls volume headphones Operating voltage 12 - 18 V DC Width 212 mm Height 43 mm Depth 123 mm Weight 0,66 kg Accessories (included) power adapter
