LD SYSTEMS U505 HHD

LD SYSTEMS U505 HHD

$0.00Price

Wireless Microphone System with Dynamic Handheld Microphone



Item No.: LDU505HHD



  • True diversity UHF wireless system

  • Shock-mounted dynamic and condenser microphone capsules

  • Automatic channel scan

  • Easy one-touch infrared frequency syncing

  • Pilot tone squelch circuit prevents noise

  • Switchable RF transmitter output (2, 10 or 30 mW)

  • Rugged enclosures

  • High-contrast OLED display
  • Description

    The U500® Series vocal sets were developed in Germany to bring you affordable professional technology and sound quality. The radio systems for vocals and speech deliver impressive performance and high reliability, which will certainly exceed your expectations. We have designed the range specifically for professional users to ensure that your performance is an impressive and emotional experience.



    Selectable transmit power up to 30 mW provides the U500® vocal sets with a free-field range of over 100 metres. They are available in three frequency bands: 584 - 608 MHz and 655 - 679 MHz, where 12 systems can be operated simultaneously, and 823 - 832 MHz + 863 - 865 MHz, where six systems can be operated at the same time. The True Diversity UHF wireless systems are equipped with an automatic scan facility to find the best free frequency, and convenient one-touch infrared synchronisation of transmitter and receiver to facilitate easy set up.



    High-contrast OLED displays provide an excellent overview of functions, with indicators for group, channel, radio frequency, and signal strength and battery status. You can even enter individual usernames. In addition to the squelch function, the transmitter’s silent pilot tone ensures fail-safe operation. It protects against interference and mutes the receiver if signals without this tone are present. The U500®’s efficient technology and high-quality components provide clear, distortion-free transmission without latency or artefacts. Low power consumption means that the transmitter can run for up to 10 hours with 2 x AA batteries.



    The U500® Series vocal sets are available with hand-held transmitters, headsets, lavalier microphones and single or double receivers. The hand-held transmitters feature interchangeable microphone capsules to suit singing or speaking.



    Overview of frequency ranges of vocal sets:

    • U505 // 584 - 608 MHz // 12 systems can be used simultaneously
    • U506 // 655 - 679 MHz // 12 systems can be used simultaneously
    • U508 // 823 - 832 MHz + 863 - 865 MHz // six systems can be used simultaneously
    • U506 UK (Channel 38) // 606 – 614 MHz //
    • U518 // 1785 – 1800 MHz //
  • Specification

    Product type Wireless Microphone Systems
    Type Set
    Transmission frequency range 584 - 608 MHz
    Weight 2,629 kg



    LDU505R - LD Systems U505 HHD Receiver

    Product type Wireless Microphone System Accessories
    Type Receivers
    Modulation Type FM
    Channels 96 (8 groups of 12 channels)
    Groups 8
    Antenna inputs 2
    Antenna connector BNC
    Frequency response 30 - 16000 Hz
    Signal-to-noise ratio > 100 dB
    Noise reduction Squelch
    Total Harmonic Distortion (THD) <0.1 %
    Audio output, balanced XLR
    Controls volume
    Audio output, unbalanced 6.3 mm jack
    Operating voltage 12 - 18 V DC
    Max. output level +10 dBu
    Weight 0,85 kg
    Other features Pilot tone
    Indicators OLED Display
    Operating voltage 12 V DC, 500 mA
    Width 212 mm
    Height 44 mm
    Depth 159 mm
    Accessories (included) power adapter

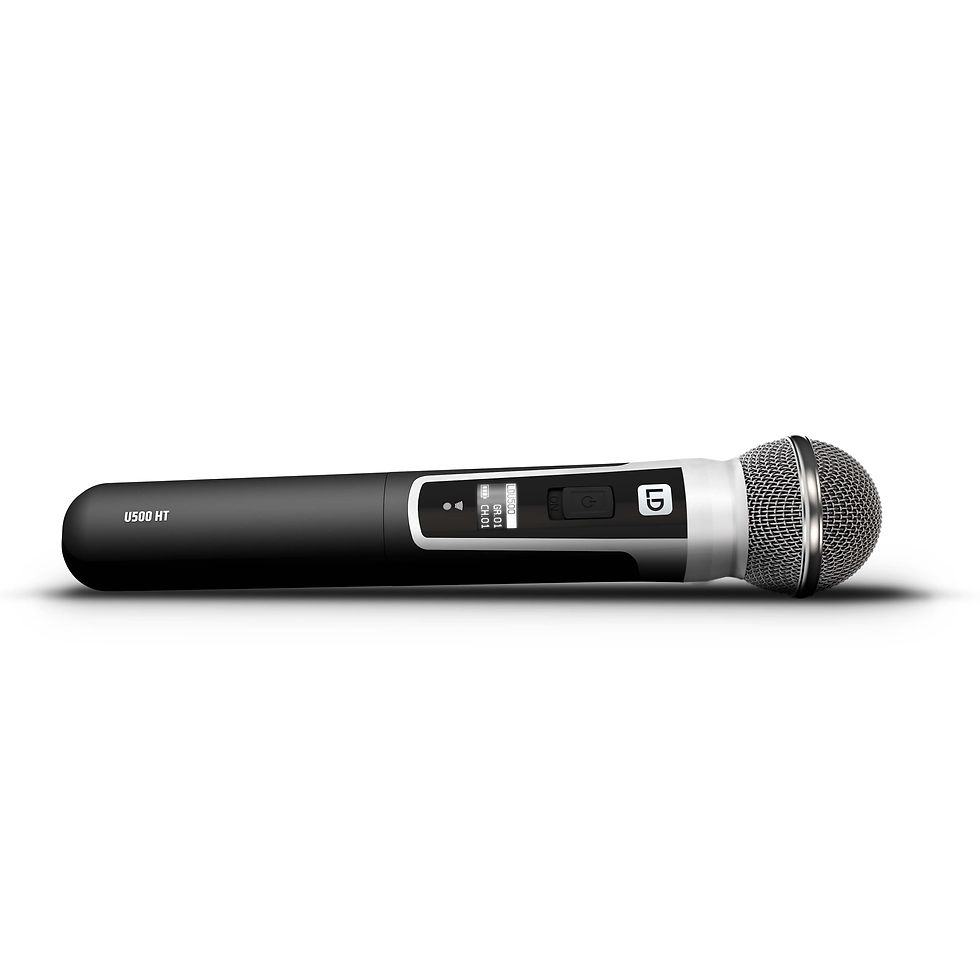

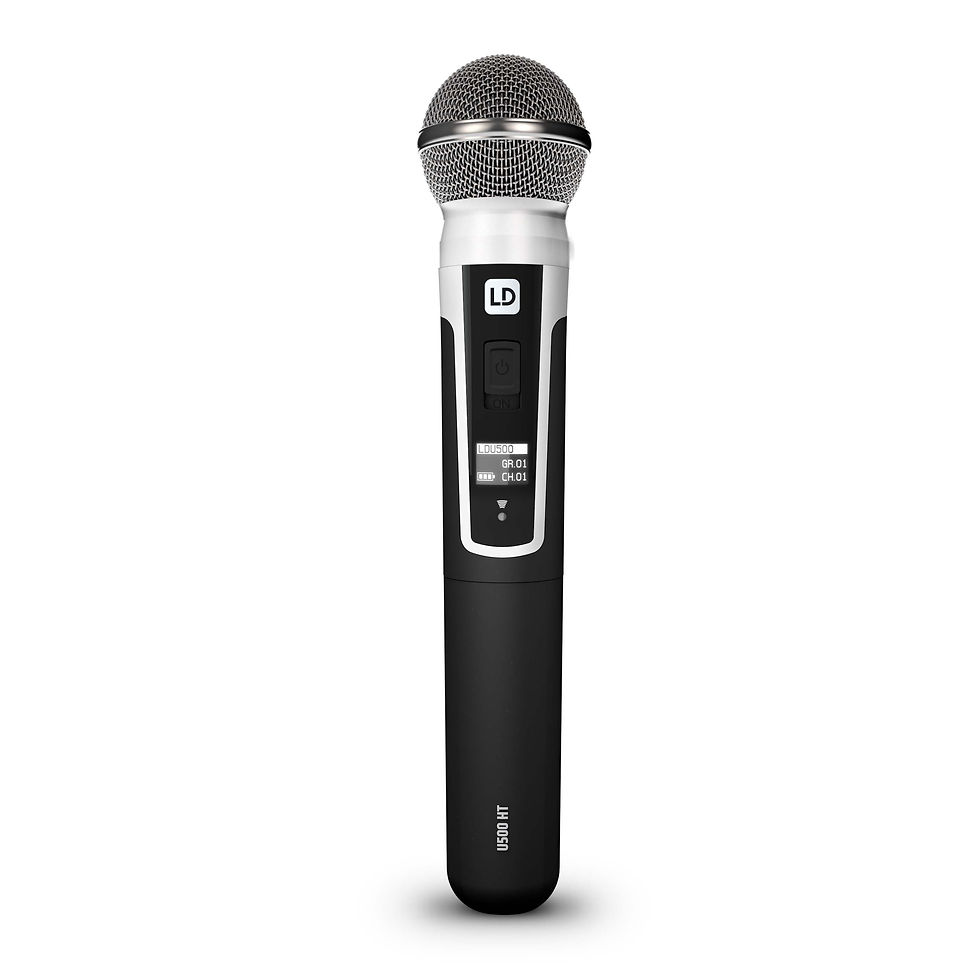

    LDU505MD - LD Systems U505 HHD Dynamic handheld microphone

    Type Microphones
    Microphone type Dynamic
    Directivity Cardioid
    Frequency response 60 - 16,000 Hz
    Signal-to-noise ratio >95 dB
    Rated HF output power Variable (2mW, 10mW, 30mW)
    Controls select
    Operating voltage 2 x AA battery
    Operating time >10 h (with alkaline batteries)
    Length 257 mm
    Diameter 51 mm
    Weight 0,25 kg
    Other features switchable RF power
