Wireless Microphone System with 2 x Bodypack and 2 x Headset
Item No.: LDU505BPH2
- True diversity UHF wireless system
- Shock-mounted dynamic and condenser microphone capsules
- Automatic channel scan
- Easy one-touch infrared frequency syncing
- Pilot tone squelch circuit prevents noise
- Switchable RF transmitter output (2, 10 or 30 mW)
- Rugged enclosures
- High-contrast OLED display
The U500® Series vocal sets were developed in Germany to bring you affordable professional technology and sound quality. The radio systems for vocals and speech deliver impressive performance and high reliability, which will certainly exceed your expectations. We have designed the range specifically for professional users to ensure that your performance is an impressive and emotional experience.
Selectable transmit power up to 30 mW provides the U500® vocal sets with a free-field range of over 100 metres. They are available in three frequency bands: 584 - 608 MHz and 655 - 679 MHz, where 12 systems can be operated simultaneously, and 823 - 832 MHz + 863 - 865 MHz, where six systems can be operated at the same time. The True Diversity UHF wireless systems are equipped with an automatic scan facility to find the best free frequency, and convenient one-touch infrared synchronisation of transmitter and receiver to facilitate easy set up.
High-contrast OLED displays provide an excellent overview of functions, with indicators for group, channel, radio frequency, and signal strength and battery status. You can even enter individual usernames. In addition to the squelch function, the transmitter’s silent pilot tone ensures fail-safe operation. It protects against interference and mutes the receiver if signals without this tone are present. The U500®’s efficient technology and high-quality components provide clear, distortion-free transmission without latency or artefacts. Low power consumption means that the transmitter can run for up to 10 hours with 2 x AA batteries.
The U500® Series vocal sets are available with hand-held transmitters, headsets, lavalier microphones and single or double receivers. The hand-held transmitters feature interchangeable microphone capsules to suit singing or speaking.
Overview of frequency ranges of vocal sets:
- U505 // 584 - 608 MHz // 12 systems can be used simultaneously
- U506 // 655 - 679 MHz // 12 systems can be used simultaneously
- U508 // 823 - 832 MHz + 863 - 865 MHz // six systems can be used simultaneously
- U506 UK (Channel 38) // 606 – 614 MHz // six systems can be used simultaneously
- U518 // 1785 – 1800 MHz // four systems can be used simultaneously
Product type Wireless Microphone Systems Type Headsets Transmission frequency range 584 - 608 MHz Weight 5,235 kg

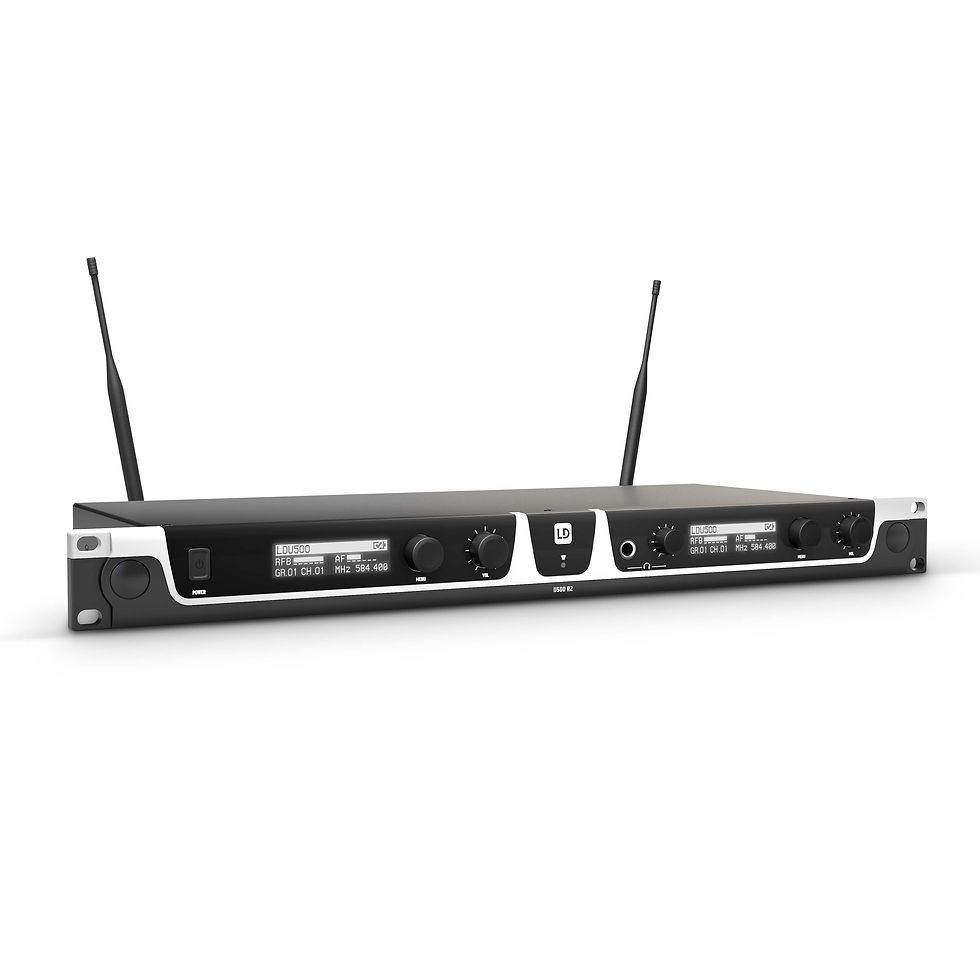

LDU505R2 - LD Systems U505 BPH 2 Dual receiver
Product type Wireless Microphone System Accessories Type true diversity Modulation Type FM Frequency response 30 - 16000 Hz Channels 96 (8 groups of 12 channels) Groups 8 Antenna inputs 2 Antenna connector BNC Signal-to-noise ratio > 100 dB Noise reduction Squelch Total Harmonic Distortion (THD) < 0.1 % Controls volume Audio output, balanced 2 x XLR Indicators 2 x OLED Display Audio output, unbalanced 2 x 6.3 mm TS Audio mix output, balanced XLR Accessories (included) power adapter Width 484 mm Audio mix output, unbalanced 2 x 6.3 mm TS Height 44 mm Depth 200 mm Max. output level +10 dBu Weight 2,05 kg Headphones ouput 1 Headphones outputs 6.3 mm TRS Other features Pilot tone Operating voltage 12 V DC, 1000 mA

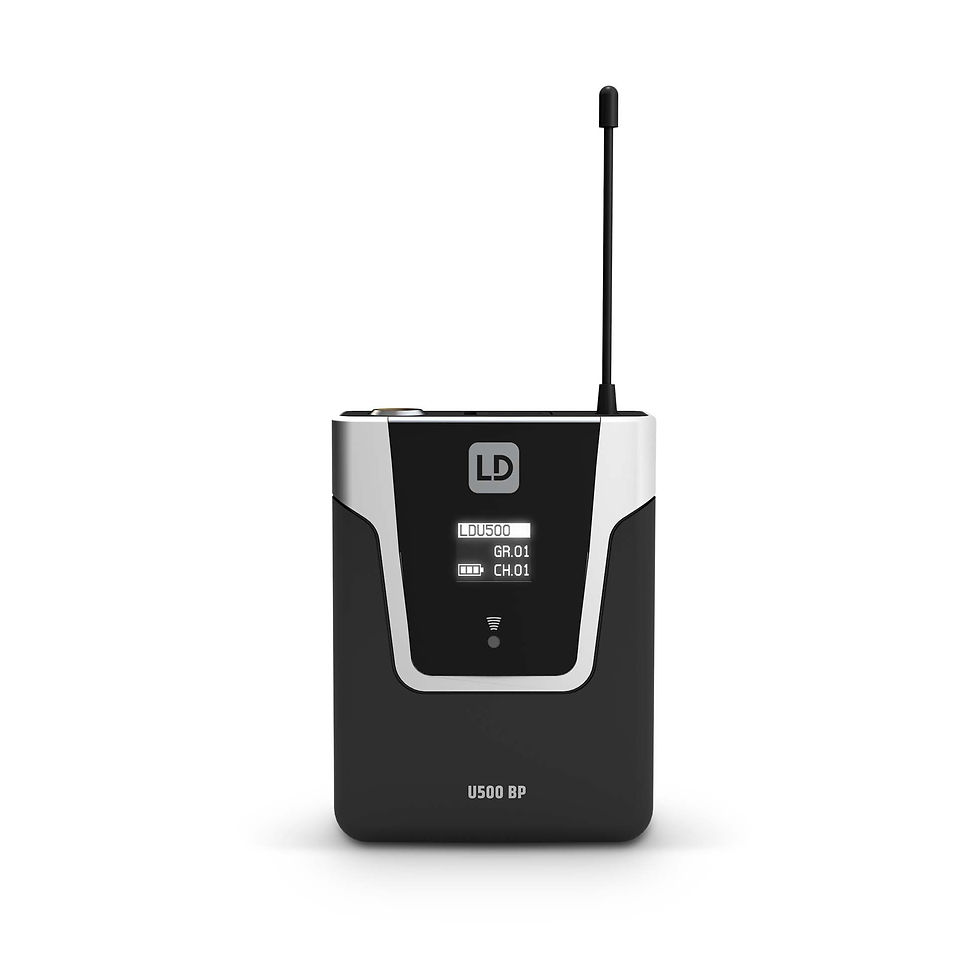

LDU505BP - LD Systems U505 BPH 2 Bodypack transmitter
Type Bodypack Inputs Mini-XLR (3-pin) Signal-to-noise ratio >90 dB Rated HF output power Variable (2mW, 10mW, 30mW) Controls Set Indicators OLED Display Operating voltage 2 x AA battery Operating time >10 h (with alkaline batteries) Width 65 mm Height 86 mm Depth 23 mm Weight 0,09 kg Other features switchable RF power
LDWS100MH1 - LD Systems U505 BPH 2 Headset
Frequency response 20 - 20.000 Hz Directivity Cardioid Nominal impedance 680 Ohm(s) Phantom power requierements 5 V Microphone input Mini-XLR (3-pin, female) Accessories (included) Foam windscreen Weight 0,049 kg
