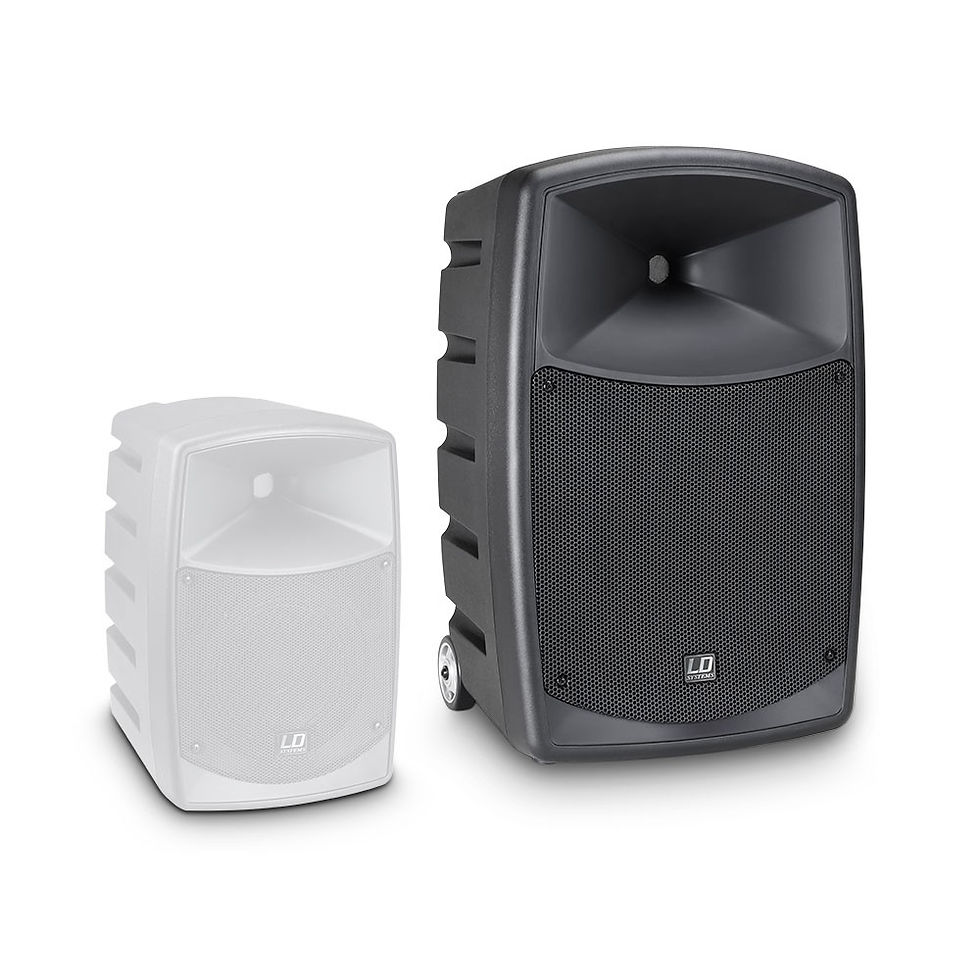

LD SYSTEMS ROADBUDDY 10

Battery Powered Bluetooth Speaker with Mixer and Wireless Microphone



Item No.: LDRBUD10



  • Battery-powered speaker solution

  • Integrated radio receiver 863 - 865 MHz for license-free operation

  • Bluetooth player with USB port and SD card slot

  • Class D power amplifier with 480 watts of peak power

  • 2 combo sockets for microphone or line inputs

  • 3.5 mm Aux input

  • Master section with 2-band EQ

  • Built-in wheels, pull-out handle and fixing for 35 mm tripod mount

  • Wireless microphone and IR-remote control included
  • Description

    The LD Systems Roadbuddy 10 is an elegant solution for voice and music transmission on the go. The 2-way speaker with a 10" custom woofer and a 1" compression driver is operated with a rechargeable battery for up to 8 hours and is powered by a class D power amplifier with a highly efficient switching power supply and 480 watts of peak power.



    The Roadbuddy relies fully on wireless transmission: it has an UHF radio receiver which operates in the license-free 863 - 865 MHz range, and can be expanded with an additional system. The on-board Bluetooth player with backlit multifunction display ,equalizer, USB port and SD card slot supports the mp3, wma and wav formats. A handheld microphone with 10 mW output power(LDRBUD10) or as an alternative a headset microphone with belt pack (LDRBUD10HS) and an IR-remote control for the player are included.



    For wired devices, the Roadbuddy has two channels with combo jacks and individual volume controllers that are switchable for microphone and line level, a stereo input via RCA (Cinch) sockets (mono summed) and a 3.5 mm Aux input. Treble, Bass, Echo and Master volume controllers complete the control panel.



    The LD Systems Roadbuddy is easily transportable thanks to built-in castor wheels and a pull-out handle. On the top, there is a handy storage compartment for up to two hand-held transmitter microphones. The plastic housing of this lightweight device has been designed to accommodate a 35 mm tripod mount.

  • Specification

    Product type Battery-powered PA speaker
    Low/mid driver dimensions 10 "
    Woofer size 254 mm
    Woofer magnet Ferrite
    Woofer brand Custom-made
    HF driver dimensions 1 "
    HF Driver Size 25.4 mm
    HF driver magnet Ferrite
    HF driver brand Custom-made
    Amplifier Class D
    RMS 120 W
    Peak power 480 W
    Frequency response 55 - 18000 Hz
    SPL (1W/1m) 96 dB
    Max. SPL 115 dB
    Protection circuits over-current , overload protection , short circuit
    Controls AUX / MP3 switch , CD / Tape IN Level , Echo , high , low , Mic 1 Level , Mic 2 Level , Total volume
    Indicators Charge/battery status , Power



    Media player

    Supported media Bluetooth , SD Card , USB stick
    Supported formats MP3 file , WAV-CD , WMA file
    Media player controls equalizer , Mode (Menu / Bluetooth /SD / USB) , Next Track , Play / Pause , Previous Track , Repeat , Stop
    Media player display elements Lighted multifunctional LC display
    Line inputs 1
    Line input connectors 2 x RCA , 2 x XLR , 3.5 mm jack , 6.3 mm jack
    Mic inputs 2
    Mic inputs 2 x XLR , 6.3 mm jack



    Wireless Unit

    Transmission frequency range 863 - 865 MHz
    Modulation Type FM
    Channels 16
    Frequency Response Wireless Unit 50 - 17000 Hz
    Controllers Wireless Unit ASC , Mute Level (Squelch) , Power / Volume , Value Down , Value Up
    Indicators Wireless Unit AF (LED) , LED Display , RF (LED)
    Connections Wireless Unit nTNC for receiver antenna
    RF Transmitter Power Output 10 mW
    Handheld Microphone Weight 0.285 kg
    Handheld Microphone Material Aluminium
    Operating voltage Switching power supply
    Operating voltage 100 V - 120 V / 60 Hz , 220 V - 240 V AC / 50 Hz
    Rechargeable batteries 12 V / 5 Ah
    Cabinet material polypropylene
    Cabinet construction vented
    Width 415 mm
    Height 525 mm
    Depth 328 mm
    Weight 16,5 kg
    Other features extendable handle , IR Remote for Media Player , Stand mount 36 mm , Transport casters , transport handle
