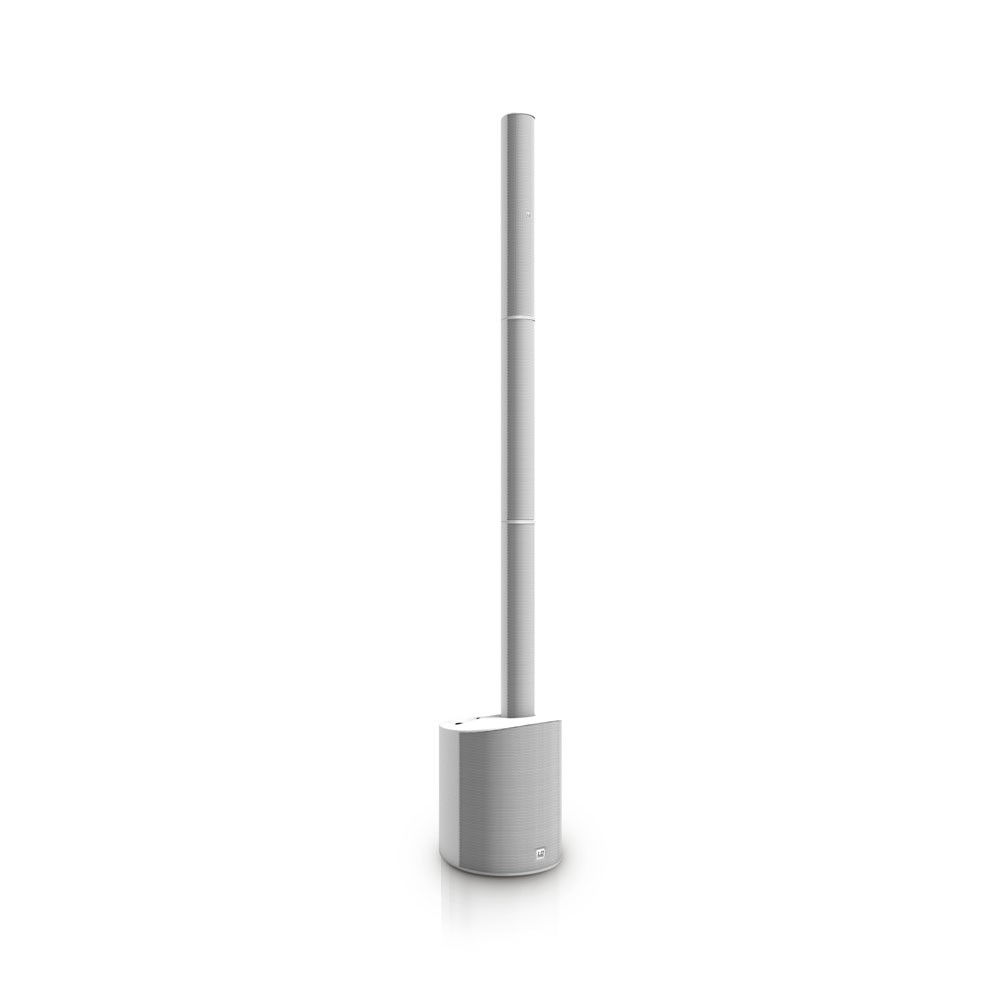

LD SYSTEMS MAUI 5 W

LD SYSTEMS MAUI 5 W

Ultra Portable Column PA System with Mixer and Bluetooth white



Item No.: LDMAUI5W



  • Ultra compact column PA

  • All-in-one sound reinforcement and monitoring system

  • 800 watts of peak power

  • Vastly extended coverage

  • LECC digital processing for controlled dynamic performance

  • Built-in 4-channel mixer with Bluetooth© technology

  • Comprehensive connectivity

  • Cableless assembly in seconds

  • Easy portability
  • Description

    The ultra compact MAUI 5 weighs in at about 11 kg while delivering 800 watts of peak power and a maximum SPL of 120 dB. Providing both sound reinforcement with extended coverage and feedback resistant monitoring the subwoofer base and 3-piece column system assembles in seconds with custom multipin connectors. The junior member of the MAUI family is most easily portable and fits onto any car seat.



    The vented 8" subwoofer also houses the system's Class D amplification with overcurrent, short circuit and thermal protection, LD Systems' proprietary LECC digital processing and a 4-channel mixer. Featuring Bluetooth technology for wireless streaming and microphone, line level and hi-Z inputs which can be used simultaneously the MAUI 5 lets you connect a wide variety of sources including music players and instruments such as keyboards or guitars. Individual level controls, subwoofer and master volumes plus high shelf filtering for room correction enable a perfectly balanced performance. The MAUI 5 is also available in black (LDMAUI5).

  • Specification

    Product type PA Complete Systems
    Colour white
    Max. SPL (continuous) 114 dB
    Max. SPL (peak) 120 dB
    Frequency response 50 - 20000 Hz
    Dispersion (H x V) 120° x 20 °
    Overall height 1985 mm
    Weight 11,3 kg
    Other features 4 channel mixer , Bluetooth , DSP-based signal processing



    Woofer characteristics

    Low/mid driver dimensions 8 "
    Woofer size 203.2 mm
    Woofer magnet Ferrite
    Woofer brand Custom-made
    Woofer voice coil 2 "
    Woofer voice coil (mm) 50.8 mm
    Cabinet construction vented
    Cabinet material ABS plastic
    Subwoofer width 305 mm
    Subwoofer height 405 mm
    Subwoofer depth 395 mm



    Mid/Hi System

    Midrange size 4 x 3 "
    Midrange size 4 x 76.2 mm
    Midrange magnet Neodymium
    Midrange brand Custom-made
    Midrange voice coil 1 "
    Midrange voice coil 25.4 mm
    Mid/Hi system impedance 4 Ohm(s)
    Loudspeaker inputs 1
    Speaker input connections Custom-made multipin
    Cabinet construction mid/high Closed
    Mid/Hi system cabinet material ABS plastic
    Mid/Hi system width 82 mm
    Mid/Hi system height 535 mm
    Mid/Hi system depth 105 mm



    Amplifier module (integrated in subwoofer)

    Amplifier Class D
    Amplifier output system (RMS) 200 W
    Amplifier output system (peak) 800 W
    Protection circuits DSP-based multiband limiter , over-current , short circuit , thermal overload
    Cooling Convection
    Controls BT level , BT pairing , limiter , Line level , Main level , Mic level , MP3 / Hi-Z level , On , Protect (protection circuit engaged) , Signal , Sub level
    Indicators Limit , On , Protect (protection circuit engaged) , Signal
    Operating voltage Switching power supply
    Operating voltage 100 V AC - 120 V AC, 50 - 60 Hz , 200 V AC - 240 V AC, 50 - 60 Hz (Automatic conversion)
    Line inputs 2 x stereo
    Line input connectors 6.3 mm jack , XLR
    Mic inputs 1
    Mic inputs 6.3 mm jack , XLR
    MP3 inputs 1
    MP3 input connectors 3.5 mm jack
    Hi-Z inputs 1
    Hi-Z input connectors 6.3 mm jack
    Loudspeaker outputs 1
    Speaker output connections Custom-made multipin



    DSP characteristics

    Bit depth AD/DA converter 24 / 24 bit
    Internal sampling frequency 48 kHz
