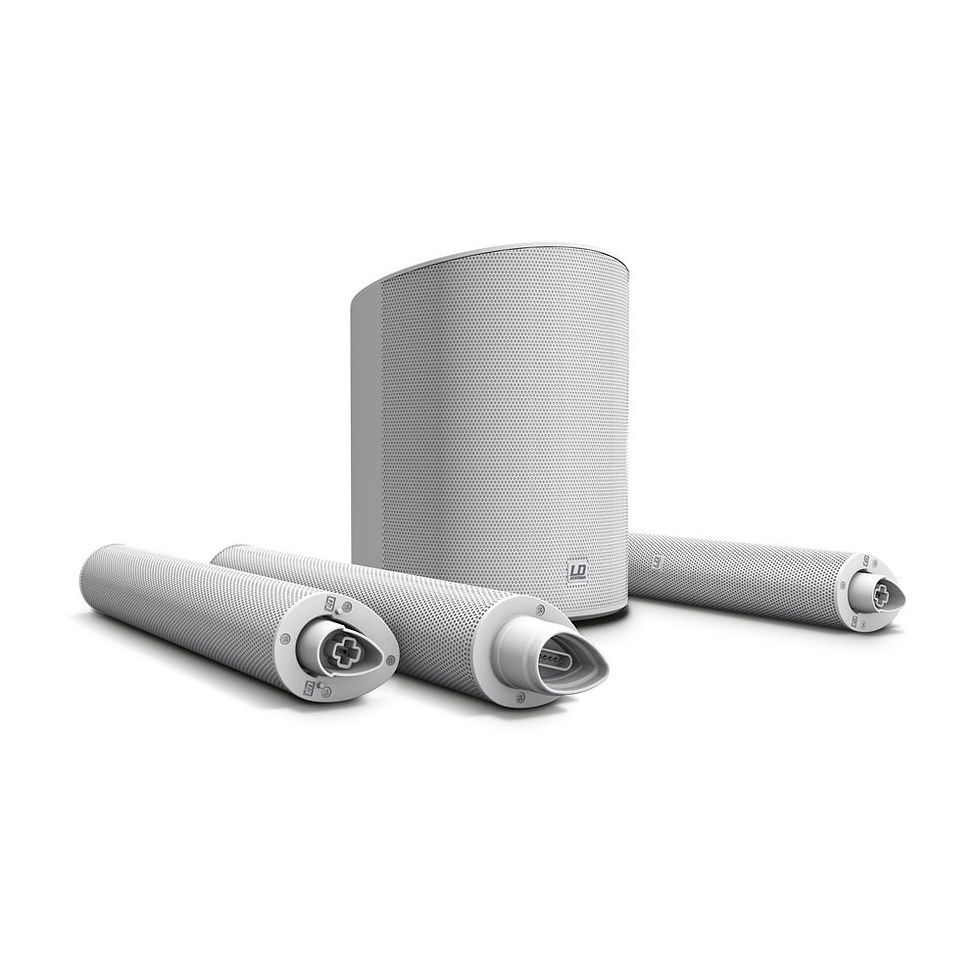

LD SYSTEMS MAUI 5 GO W

Ultra-Portable Battery-Powered Column PA System white



Item No.: LDMAUI5GOW



  • Plug-and-play lithium-ion battery for up to 20 hours of continuous performance

  • Quick-Swap Technology® for virtually unlimited battery power

  • For crowds of 100+ people

  • Ultra-portable 4-piece design weighing under 13 kg / 29 lbs

  • Built-in 4-channel mixer

  • Bluetooth® stereo audio streaming

  • All-in-one sound reinforcement and monitoring system

  • Line array driver arrangement for extended and extra wide coverage
  • Description

    Perfectly equipped throughout, the MAUI® 5 GO is the ultimate system to deliver crystal-clear, powerful sound in any location. The ultra-portable battery-powered column-PA is supplied by a high-performance lithium-ion unit that provides power for up to 20 hours operating time. The charger is built into the subwoofer. An external charging dock is available as an accessory. Inputs for microphone, instrument and line signals as well as Bluetooth® stereo streaming make the MAUI® 5 GO the ideal system for street musicians or for music and speech reproduction at private and business events and all mains power-free applications.



    Its superlight weight of just 13 kg makes the four-piece design ultra-easy to transport, and thanks to its special multipin connectors, it is assembled and ready to use in seconds. The line-array arrangement of the drivers achieves an extremely high range. The system’s wide dispersion and excellent feedback-resistance removes the need for separate monitors. With 800 watts peak power, the MAUI® 5 GO is the loudest and best-sounding battery-powered PA system on the market, effortlessly providing sound for audiences of over 100 people.



    For unparalleled sound quality in all applications, the column system features LD Systems' LECC DSP with multi-band limiter, equalizer, compressor and crossover. The integrated 4-channel mixer provides separate volume controls for the input channels, sum and subwoofer as well as a variable high-frequency boost to facilitate fast and balanced adjustment to the sound. LD Systems’ Quick-Swap Technology® also facilitates immediate and simple battery replacement for practically unrestricted operating times for the MAUI® 5 GO.

  • Specification

    Product type PA Complete Systems
    Type active
    Number of subwoofers 1
    Colour white
    Max. SPL (peak) 120 dB
    Frequency response 50 - 20000 Hz
    Dispersion (H x V) 120° x 20 °
    Overall height 1985 mm
    Weight 12,9 kg



    Battery

    Rechargeable batteries 29.6V / 5200 mAh
    Battery manufacturer LG Chem
    Battery technology Lithium-ion
    Battery operation time at maximum load 10 h @ 104 dB (Live music) , 20 hours @ 98 dB (Lounge) , 6 hours at 120 dB (DJ mode)
    Charging time 2 hours up to 80% , 3 hours up to 100%



    Woofer characteristics

    Low/mid driver dimensions 8 "
    Woofer size 203.2 mm
    Woofer magnet Ferrite
    Woofer brand Custom-made
    Woofer voice coil 2 "
    Woofer voice coil (mm) 50.8 mm
    Cabinet construction vented
    Cabinet material ABS plastic
    Subwoofer width 305 mm
    Subwoofer height 405 mm
    Subwoofer depth 395 mm
    Subwoofer weight 8.9 kg



    Mid/Hi System

    Midrange size 4 x 3 "
    Midrange size 4 x 76.2 mm
    Midrange magnet Neodymium
    Midrange brand Custom-made
    Midrange voice coil 1 "
    Midrange voice coil 25.4 mm
    Mid/Hi system impedance 4 Ohm(s)
    Loudspeaker inputs 1
    Speaker input connections Custom-made multipin
    Cabinet construction mid/high Closed
    Mid/Hi system cabinet material ABS plastic
    Mid/Hi system width 82 mm
    Mid/Hi system height 535 mm
    Mid/Hi system depth 105 mm
    Mid/Hi system weight 3.8 (3ps) kg



    Amplifier module (integrated in subwoofer)

    Amplifier Class D
    Amplifier output system (RMS) 200 W
    Amplifier output system (peak) 800 W
    Protection circuits DSP-based multiband limiter , over-current , short circuit , thermal overload
    Cooling Convection
    Operating Temperature 0 - 50 °C
    Controls BT level , BT pairing , Line level , Main level , Mic level , Mono/stereo mode , MP3 / Hi-Z level , On / Off , Sub level
    Indicators Limit , On , Protect (protection circuit engaged) , Signal
    Operating voltage Switching power supply
    Operating voltage 100 V AC - 120 V AC, 50 - 60 Hz , 200 V AC - 240 V AC, 50 - 60 Hz (Automatic conversion)
    Power consumption 300 W
    Line inputs 2 x stereo
    Line input connectors 6.3 mm jack , XLR
    Mic inputs 1
    Mic inputs 6.3 mm jack , XLR
    MP3 inputs 1
    MP3 input connectors 3.5 mm jack
    Hi-Z inputs 1
    Hi-Z input connectors 6.3 mm jack
    Loudspeaker outputs 1
    Speaker output connections Custom-made multipin



    DSP characteristics

    Bit depth AD/DA converter 24 / 24 bit
    Internal sampling frequency 48 kHz
