LD SYSTEMS MAUI 28 G2 W

LD SYSTEMS MAUI 28 G2 W

$0.00Price

Compact Column PA System with Mixer and Bluetooth white



Item No.: LDMAUI28G2W



  • All-in-one column speaker for PA and monitor applications

  • 2,000 watts peak Class-D system power offers high performance with a low weight

  • Powerful bass reproduction with 2 x 8" woofers

  • Balanced mids thanks to the 16 x 3" full-range speakers

  • Precise and silky highs with 2 x 1" high-frequency drivers

  • Increased range and wider coverage through the array arrangement

  • Homogeneous dispersion pattern through a BEM-optimised tweeter wave guide

  • Distortion-free sound even at the highest volume thanks to LD Systems DynX® DSP technolog

  • Full control through a 4-channel mixer including Bluetooth® Stereo Audio Streaming

  • Two-piece column for compact transport

  • Secure plug-and-play connection thanks to the wireless multi-pin mechanism

  • A wide range of application options through dismountable columns

  • Easy operation with presets for mono or stereo configuration

  • Extensive and smart accessories for installation and transport
  • Description

    A complete sound system that you can carry together with your instrument: introducing the MAUI 28 G2. The two column elements in the padded shoulder bag, the subwoofer in one hand and the guitar or keyboard in the other - and off you go! Setting up the complete system, which doubles as PA and monitor system is just as easy thanks to the special multi-pin cable plugs. The compact and elegant MAUI 28 G2 offers an unbeatable sound quality and wide-ranging sound distribution. It was developed with year-long experience in the design of the column systems as a user-friendly solution for medium sized gigs and fixed installations.



    The MAUI 28 G2 is equipped with two 8" woofers, sixteen 3" full-range speakers and two 1" neodymium HF drivers. They are driven by a light Class-D power amplifier with an enormous 2,000 watts peak power and produce a grunty bass, balanced mids and precise and silky highs. The DynX® DSP technology from LD Systems provides a top-class performance every time and the highest level of freedom from distortion. It includes a multiband limiter which protects against overloading, an EQ, a compressor and a 3-way crossover with run time correction.



    The design of the MAUI 28 G2 line array achieves a longer range, increased resistance to feedback and a wider space coverage, which makes separate monitor speakers superfluous. The wave guide of the tweeters has been developed using the Boundary Element Method (BEM), a numerical simulation of the sound radiation and dispersion. It reduces reflections from the floor and ceiling and prevents sidelobe levels and thus achieves an homogeneous dispersion - Your audience hears you in the back row just as clearly as in the front.



    With the integrated 4-channel mixer, system presets for mono or stereo configuration and Bluetooth® Audio Streaming, you have full control over the system. Whether you are a singer-songwriter, solo entertainer, DJ or musician in a small band, you will be thrilled with the extraordinary sound and portability of the MAUI 28 G2. The column and the subwoofer can be set up separately: thus, the system is extremely flexible and is also an excellent choice for fixed installations. With a selection of clever transport accessories and special mounting hardware, the MAUI 28 G2 is a well thought out overall solution, down to the last details.

  • Specification

    Product type PA Complete Systems
    Type active
    Colour white
    Max. SPL (peak) 126 dB
    Frequency response 45 - 20000 Hz
    Dispersion (H x V) 120° x 20 °
    Overall height 2059 mm
    Weight 30,9 kg

    Woofer characteristics

    Low/mid driver dimensions 2 x 8 "
    Woofer size 2 x 203 mm
    Woofer magnet Ferrite
    Woofer brand Custom-made
    Woofer voice coil 2 "
    Woofer voice coil (mm) 50.8 mm
    Cabinet construction vented
    Cabinet material 15 mm Plywood
    Cabinet surface texture paint
    Subwoofer width 370 mm
    Subwoofer height 484 mm
    Subwoofer depth 480 mm
    Subwoofer weight 19.7 kg



    Mid/Hi System

    Midrange size 16 x 3 "
    Midrange size 16 x 76.2 mm
    Midrange magnet Ferrite
    Midrange brand Custom-made
    Midrange voice coil 1 "
    Midrange voice coil 25.4 mm
    Horn Waveguide
    Tweeter dimensions 2 x1 "
    Tweeter dimensions (mm) 25.4 mm
    Tweeter magnet Neodymium
    Tweeter brand Custom-made
    Tweeter voice coil 1 "
    Tweeter voice coil (mm) 25.4 mm
    Loudspeaker inputs 1
    Speaker input connections Custom-made multipin
    Cabinet construction mid/high Closed
    Mid/Hi system cabinet material Aluminium
    Mid/Hi system cabinet surface HD coating
    Mid/Hi system width 96 mm
    Mid/Hi system height 780 / 795 mm
    Mid/Hi system depth 104 mm
    Mid/Hi system weight 5.6 / 5.6 kg

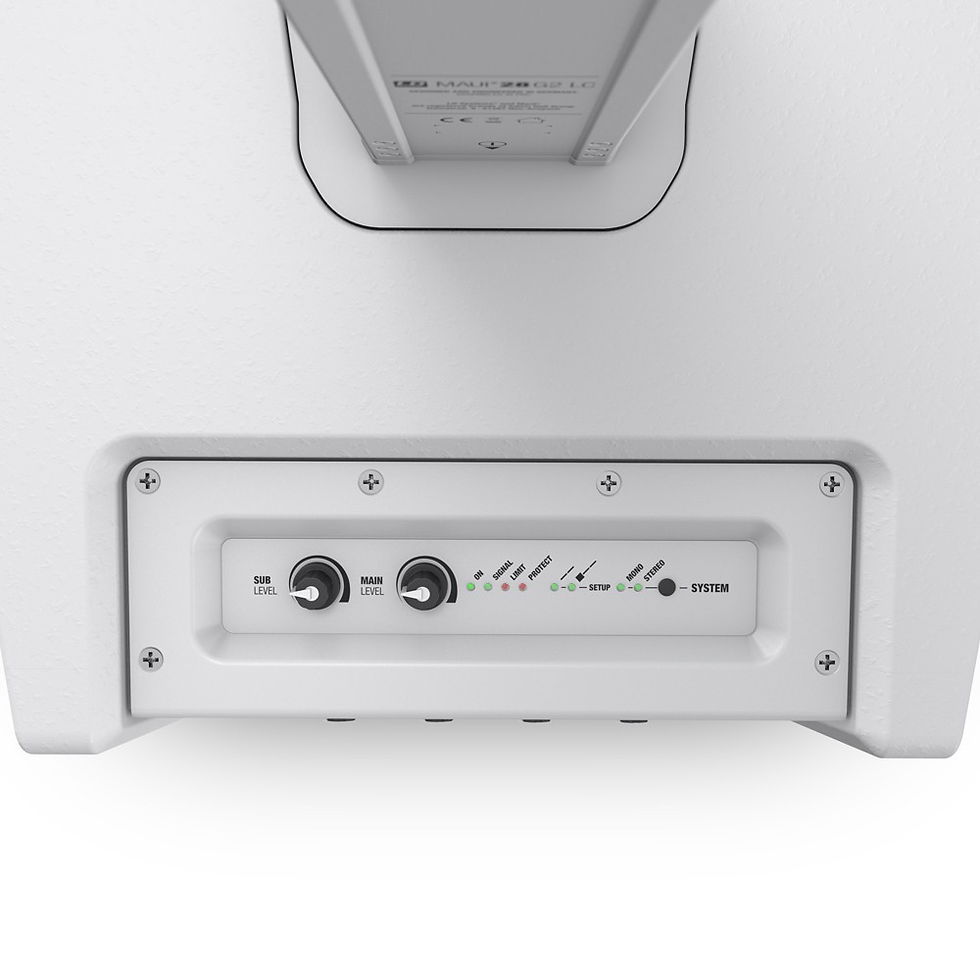

    Amplifier module (integrated in subwoofer)

    Amplifier Class D
    Amplifier output system (RMS) 1000 W
    Amplifier output system (peak) 2000 W
    Protection circuits DC protection , Multiband limiter , short circuit , thermal overload
    Cooling Convection
    Operating Temperature 0 - 40 °C
    Humidity Range 10% to 80%, (non-condensing)
    Controls Bluetooth switch , Hi-Z Level , Line level , Main level , Mono/stereo switch , MP3/Bluetooth Level , Power , Sub level
    Indicators Limit , mono , On , Protect (protection circuit engaged) , Setup , Signal , stereo
    Power connector IEC power cable (included)
    Operating voltage 100 - 120 V / 50 - 60 Hz or 200 - 240 V / 50 - 60 Hz (automatic switching)
    Power consumption Off / On / Max. 0/11/600 W
    Line inputs 2 x stereo
    Line input connectors RCA , XLR/6.3 mm jack
    Line outputs 2 (1x System Out, 1x Sub Out)
    Line output connectors XLR
    Mic inputs 1
    Mic inputs XLR/6.3 mm jack
    MP3 inputs 1
    MP3 input connectors 3.5 mm jack
    Hi-Z inputs 1
    Hi-Z input connectors 6.3 mm jack
    Loudspeaker outputs 1
    Speaker output connections Custom-made multipin



    DSP characteristics

    Bit depth AD/DA converter 24 bit
    Internal sampling frequency 48 kHz
    Signal/noise ratio 100 dB
