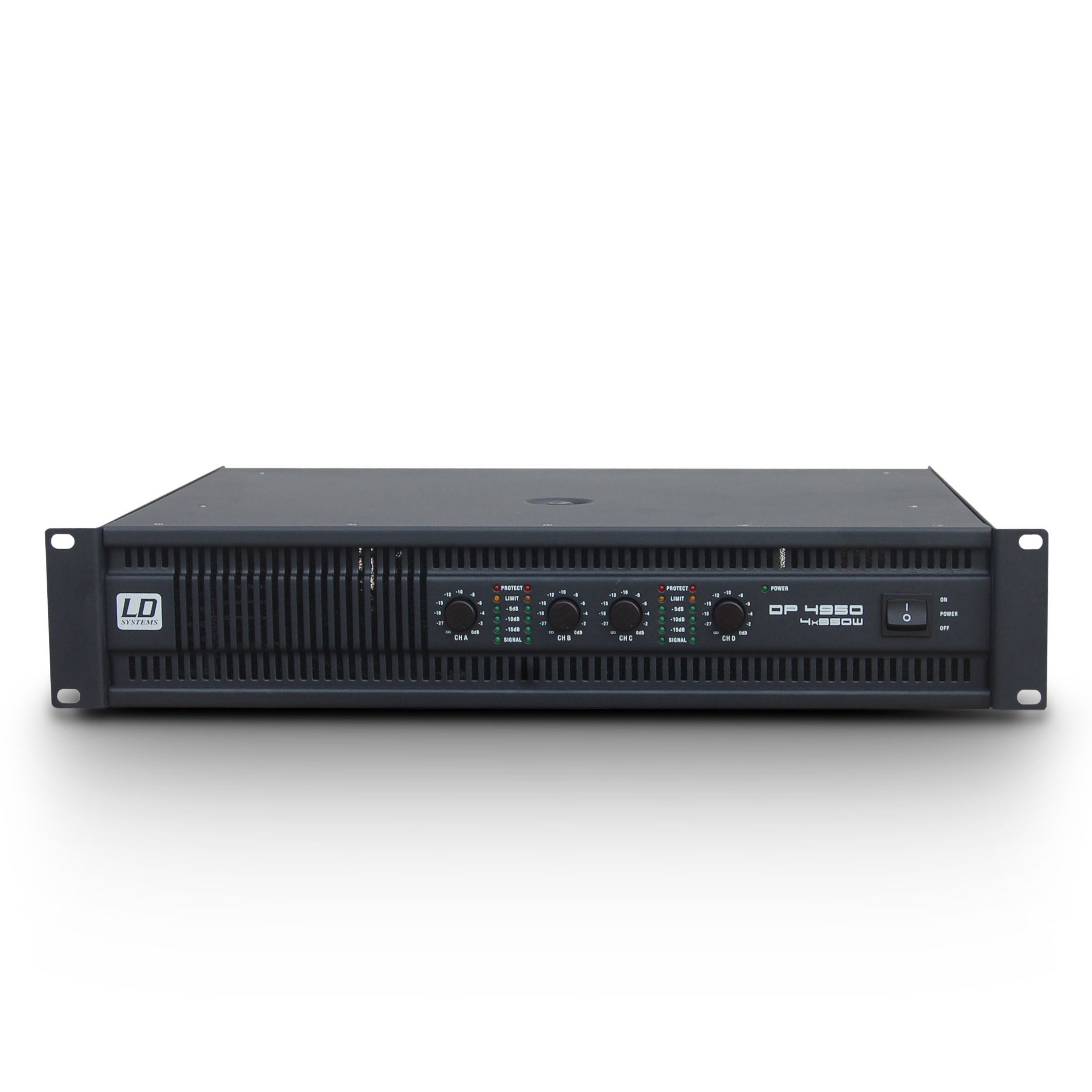

PA Power Amplifier 4 x 810 W 4 Ohms


Item No.: LDDP4950


The new DEEP2 amp series features four class-H power amplifiers with toroidal core offering amplifying levels from 2 x 400 W till 2 x 810 W at 4 Ohm. During the development of this series we attached a great importance to the reliability and the durability of the amps in continuous operation, this is why we used exclusively high end and selected components for the construction of these products. The DEEP2 series features a Clip Limiter as well as every common protection circuit. On the rear panel you will find all the common In- and Outputs. The DEEP2 series will convince every user thanks to a dynamic and very clear sound which is perfectly adapted for Subbass applications as well as for multifunctional speakers. All models are lightweight and feature a robust steel plate housing and a very user friendly and compact design. The DEEP2 series will prove to be a profitable and reliable choice for bands, renting companies and professional users thanks to its excellent price/performance ratio.

  • Specification

    Product type Power Amplifiers
    Type PA Power Amplifiers
    Rated ouput power (1kHz @ 4 Ohms) 4 x 810 W
    Rated ouput power (1kHz @ 8 Ohms) 4 x 490 W
    Rated ouput power (1kHz @ 8 Ohms, bridged) 2 x 1600 W
    Output circuitry Class H
    Frequency response 20 - 20000 Hz
    Total Harmonic Distortion (THD) < 0.1 %
    Signal-to-noise ratio 105 dB
    Damping factor > 400
    Crosstalk >70 dB
    Gain 38 dB
    Input sensitivity 0.775 V
    Protection circuits DC protection , short circuit , thermal overload
    Controls 4 x volume , bridge/stereo mode selector , ground lift , mains switch (on/off)
    Indicators Limit , Power , Protect (protection circuit engaged) , Signal
    Loudspeaker outputs 4
    Speaker output connections Speakon compatible
    Cooling highly efficient, automatic
    Operating voltage transformer
    Operating voltage 230 V AC / 50-60 Hz
    Weight 19,6 kg
