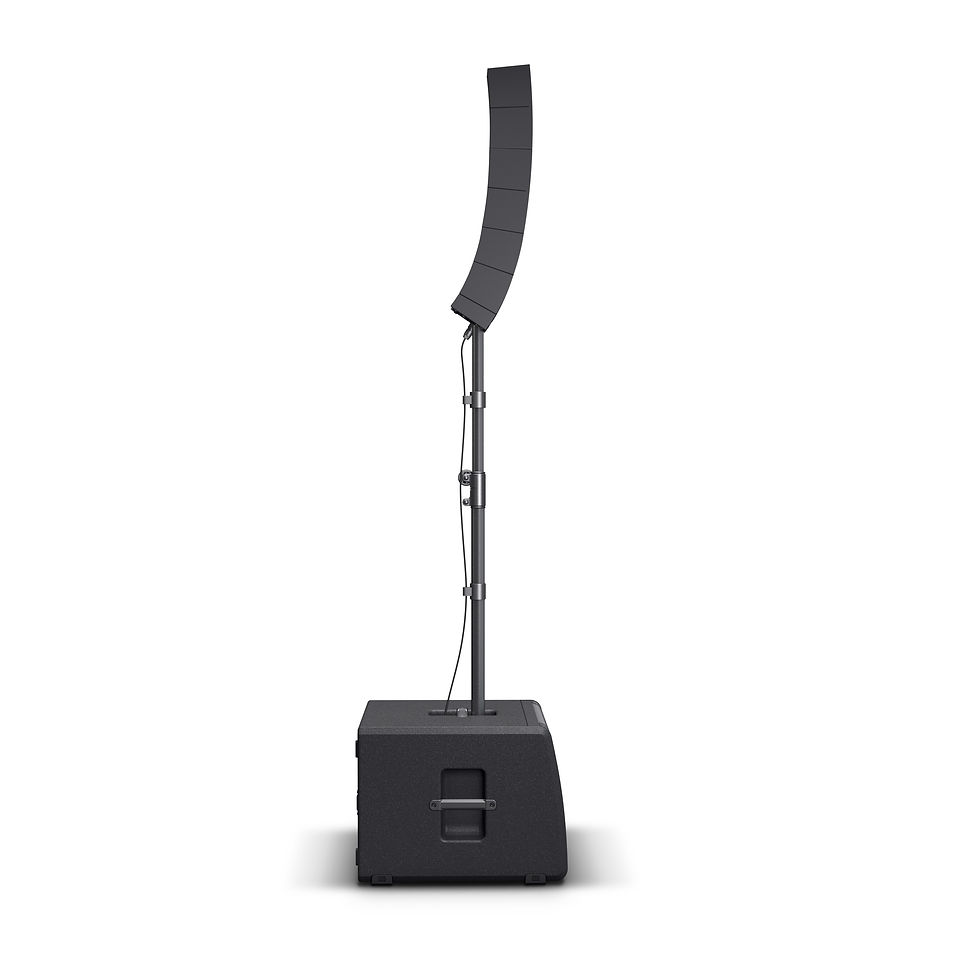

LD SYSTEMS CURV 500 TS

LD SYSTEMS CURV 500 TS

Compact Touring Array System



Item No.: LDCURV500TS



  • Portable touring array system for live events, DJs and bands

  • 25 premium transducers and WaveAhead® technology for breath-taking high-definition sound

  • 1,000 watts RMS system power and 131 dB max. SPL

  • Fully scalable for far and near field applications

  • SmartLink® plug & play adapter for versatile application

  • Durable aluminum unibody satellite construction

  • 18 mm birch ply subwoofer cabinet with Polyurea finish

  • Ergonomic handles for convenient transport and setup
  • Description

    The compact, highly portable CURV 500® Touring Array System is fully scalable with up to four interlocking aluminium unibody line array elements operating on a SmartLink® plug and play adapter. It comes with two standard CURV satellites that feature a single 4" midrange and triple 1" high frequency drivers using LD Systems' WaveAhead® technology, and two duplex satellites with twice the speaker complement.



    The ported 15" subwoofer base includes the CURV 500® Touring Array System's class D amplification with multiband limiter, short circuit, thermal and overcurrent protection. It sports comprehensive connectivity on combo and speakON compatible connectors, six DSP presets for quick system configuration, an M20 pole mount and three ergonomic handles for easy portability. Providing impressive versatility, the lightweight CURV 500® Touring Set delivers high definition audio with powerful punch, superb balance and extended vertical and horizontal coverage. The set includes a subwoofer pole and dedicated speaker cable.

  • Specification

    Product type PA Complete Systems
    System output (RMS): 1000 W
    Colour Black
    Number of array satellites 4
    Number of Smartlink adapters 1
    Number of subwoofers 1
    Max. SPL (continuous) 125 dB
    Max. SPL (peak) 131 dB
    Frequency response 40 - 20000 Hz
    Dispersion (H x V) 110° horizontal, vertical 34 °
    RMS Subwoofer: 700 W , Array Satellites: 300 W
    Peak power Subwoofer: 1400 W , Array Satellites: 600 W
    Amplifier Class D
    Protection circuits DSP-based multiband limiter , overload , short circuit , thermal overload
    Weight 48,2 kg
    Accessories (included) Distance bar , Power cord , Speaker cable CURV 500 CABLE 1 (2.2 m)



    Subwoofer

    Low/mid driver dimensions 15 "
    Low/mid driver dimensions (mm) 381 mm
    Cabinet construction vented
    Housing material plywood
    Cabinet surface Polyurea
    Dimensions Subwoofer (W x H x D) 600 x 437 x587 mm
    Subwoofer weight 35.5 kg
    Subwoofer features 4 ergonomic handels , 6 System DSP Presets , Powercon , speakON output , Threaded flange M20



    LDCURV500DSAT - LD Systems CURV 500 TS Duplex Satellite Black

    Product type Installation Loudspeakers
    Type Wall-mounted Loudspeaker
    Midrange size 2 x 4 "
    Tweeter dimensions 6 x 1 "
    Load rating (RMS) 80 W
    Peak power 160 W
    Dispersion 110° horizontal, vertical (each satellite) 7 °
    Impedance 8 Ohm(s)
    Material die-cast aluminium
    Surface Powder coated
    Colour Black
    Width 122 mm
    Height 240 mm
    Depth 126 mm
    Weight 3,3 kg



    LDCURV500S2 - LD Systems CURV 500 TS Two Array satellites for the CURV 500® Portable Array System, black

    Product type PA Complete Systems Accessories
    Midrange size 1 x 4 "
    Tweeter dimensions 3 x 1 "
    Load rating (RMS) 40 W
    Peak power 3 x 240 W
    Speakers per amplifier channel (DSP44/45K) 8x1, 4x2, 2x3, 2x4, 5, 6 (LOW Z)
    Dispersion 110° horizontal, vertical (each satellite) 10 °
    Impedance 16 Ohm(s)
    Height 122 mm
    Depth 122 mm
    Features WaveAhead® Technology
    Weight 3,44 kg



    LDCURV500SLA - LD Systems CURV 500 TS SmartLink Adapter for up to Four LD CURV 500® Satellites, Black

    Type Smartlink® Adapter
    Connectors 1x Speakon compatible
    Depth 57 mm
    Features 2x M6 thread for optional wall mount
    Weight 0,35 kg
