LD SYSTEMS CURV 500 PS

LD SYSTEMS CURV 500 PS

Portable Array System Power Set Including Distance Bars & Speaker Cables



Item No.: LDCURV500PS



  • The first truly portable array system

  • Fully scalable for far and near field applications

  • WaveAhead® technology for high definition audio

  • SmartLink® plug & play adapter for universal mounting options

  • Built-in 4 channel mixer with DFX and Bluetooth® technology

  • Durable lightweight aluminium unibody array elements

  • For mobile and fixed applications
  • Description

    If more power is required, the patented CURV 500® Power Set can provide a power of 920 watts RMS and a maximum sound pressure of 134 dB. Two subwoofers and eight satellites offer all the advantages of the CURV 500® System and have sufficient power reserves for larger events or applications with high power requirements, especially in the bass range.



    The compact, transport-friendly CURV 500® is an easily configurable array system with eight interlocking satellites, which are operated via a SmartLink® adapter. The elements, only 12 x 12 cm in size, are equipped with LD System's own WaveAhead® technology, one 4" and three 1" drivers provide a coherent and extremely detailed playback with high pressure and dynamics.

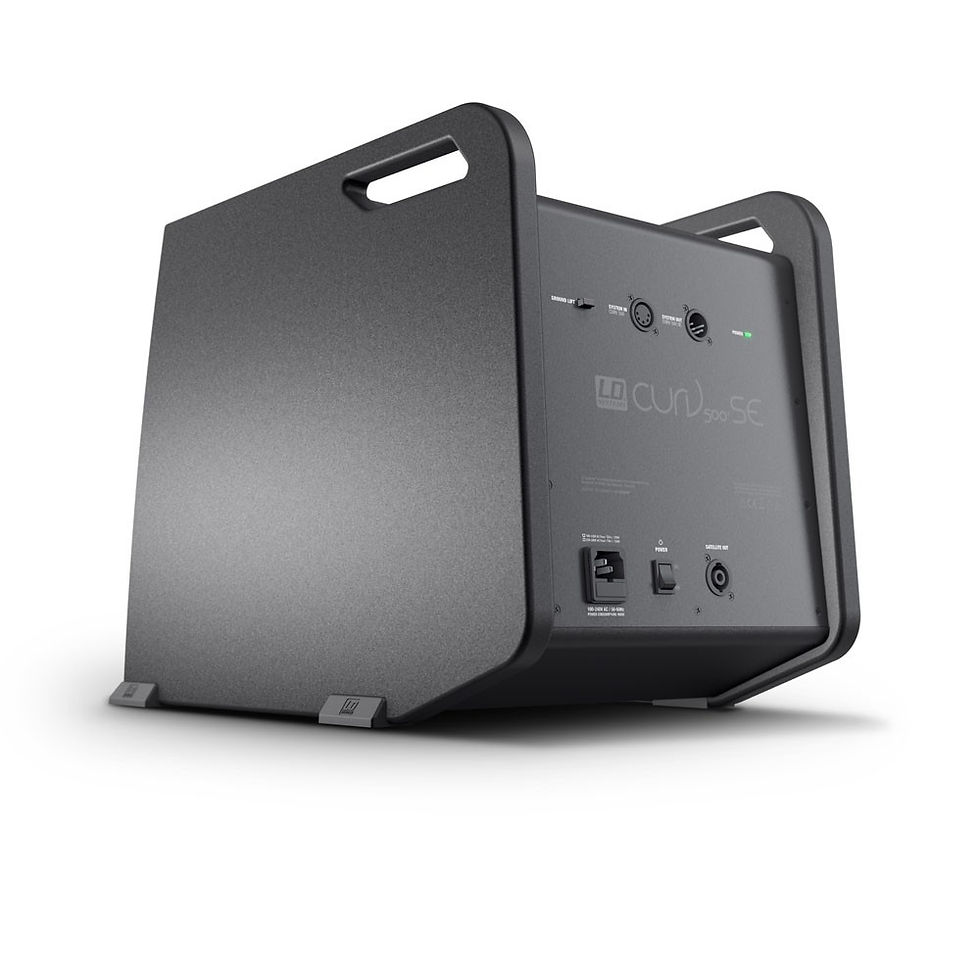

    The 10" bass-reflex subwoofer houses the Class D power amplifier and includes a limiter, protection against short circuit, overheating, over-voltage, as well as a 4-channel mixer with 16 digital effect presets and Bluetooth®. Combo, and Speakon-compatible sockets offer extensive connectivity options, and the subwoofer features four digital system presets, an M20 threaded flange and three ergonomic carrying handles. The second subwoofer with its own power amplifier offers identical technical specifications, but does not require any mixer.

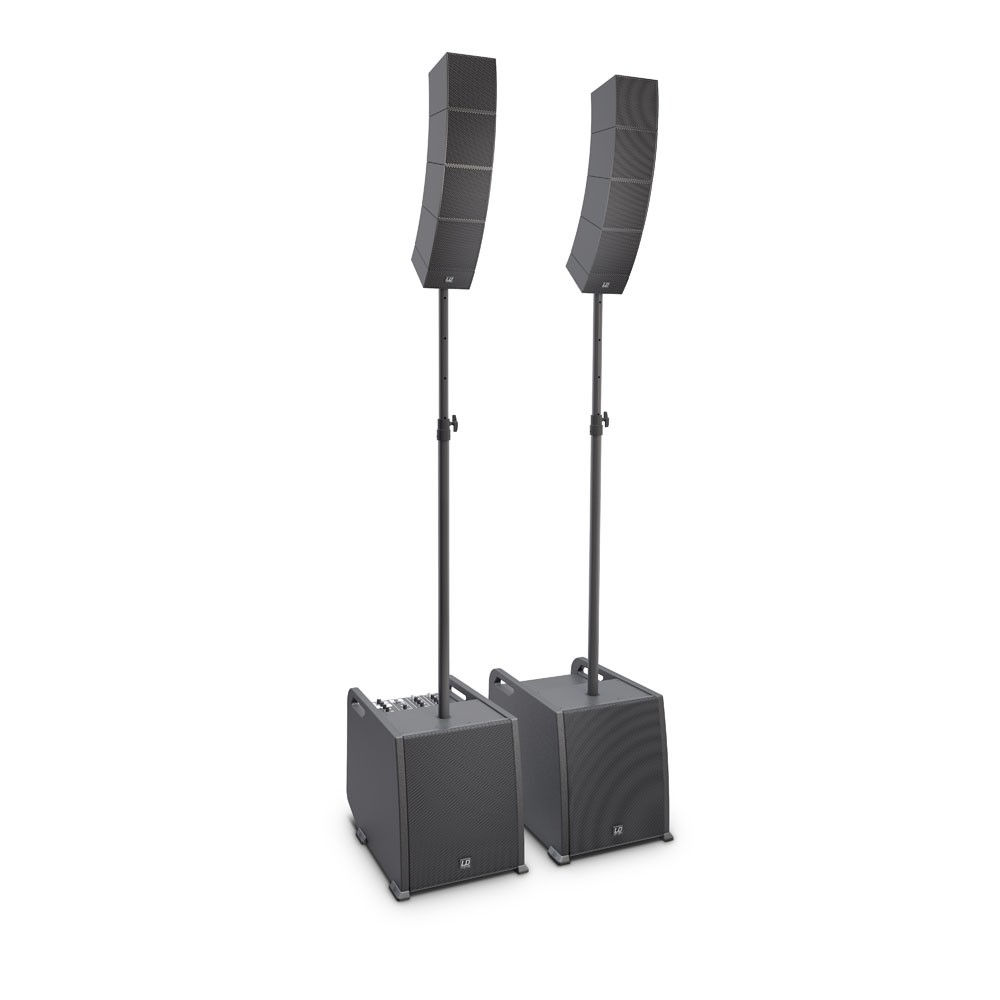

    The CURV 500® Power Set includes two subwoofers, one with a mixer unit, eight satellites, two SmartLink® adapters, two extension tubes and matching speaker cables.

  • Specification

    Product type PA Complete Systems
    System output (RMS): 920 W
    Colour Black
    Number of array satellites 8
    Number of Smartlink adapters 2
    Number of subwoofers 2
    Max. SPL (continuous) 128 dB
    Max. SPL (peak) 134 dB
    Frequency response 47 - 20000 Hz
    Dispersion (H x V) 110° horizontal, vertical (each satellite) 10 °
    RMS Subwoofer: 300 W , Array Satellites: 2 x 160 W, Subwoofer Extension 300 W
    Peak power Subwoofer: 1200 W , Array Satellites: 2 x 640, Subwoofer Extension: 1200 W
    Amplifier Class D
    Protection circuits DSP-based multiband limiter
    Weight 59,1 kg
    Accessories (included) 2 x Distance bar , 2 x Power cable , 2 x Speaker cable CURV 500 CABLE 1 (2.2 m) , 5-pin XLR system cable (10 m)



    Subwoofer

    Low/mid driver dimensions 10 "
    Woofer size 254 mm
    Cabinet construction vented
    Cabinet material plywood
    Cabinet surface PA painting
    Dimensions Subwoofer (W x H x D) 325 x 383 x 491 mm
    Subwoofer weight 16.5 kg
    Subwoofer features 16 DFX Presets , 3 ergonomic handels , 4 channel mixer , 4 System DSP Presets , Bluetooth , Threaded flange M20



    Array Satellites

    Mid/Hi system MF: 1 x 4" / HF: 3 x 1" with WaveAhead® Technology / 16 ohms
    Array Satellite Features internal crossover , metal grille , WaveAhead® Technology
    Array Satellite Material die-cast aluminium
    Array Satellite Surface: Powder coated
    Array Satellite Dimensions (W x H x D) 122 x 122 x 122 mm
    Array Satellite Weight 1.7 kg



    Smartlink® Adapter

    Smartlink Adapter Features 2 x 16 mm pole mount socket , 2x M6 thread for optional wall mount
    Smartlink Adapter Connectors 1 x Speakon-compatible , 1x Phoenix
    Smartlink Adapter Material die-cast aluminium
    Smartlink Adapter Surface Powder coated
    Smartlink Adapter Dimensions (W x H x D) 122 x 57 x 122 mm
    Smartlink Adapter Weight 0.6 kg
