LD SYSTEMS CURV 500 ES

LD SYSTEMS CURV 500 ES

Portable Array System Entertainer Set Including Distance Bar & Speaker Cable



Item No.: LDCURV500ES



  • The first truly portable array system

  • Fully scalable for far and near field applications

  • WaveAhead® technology for high definition audio

  • SmartLink® plug & play adapter for universal mounting options

  • Built-in 4 channel mixer with DFX and Bluetooth® technology

  • Durable lightweight aluminium unibody array elements

  • For mobile and fixed applications
  • Description

    The CURV 500® Entertainer Set consists of a high-performance 10" bass reflex subwoofer and an easily configurable array system with four satellites. Featuring a power of 460 watts RMS and a maximum sound pressure level of 128 dB, the CURV 500® ES Set is the ideal sound system for small events or conferences and meetings.

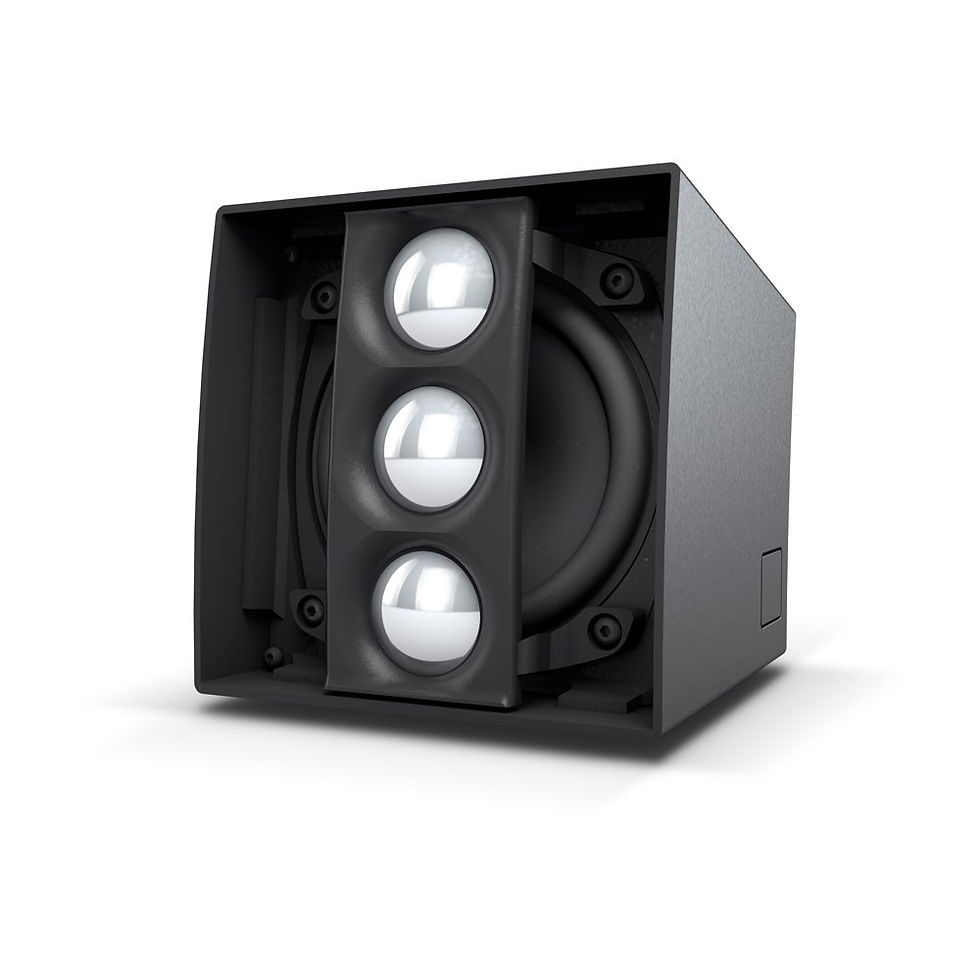

    The compact, transport-friendly CURV 500® is an array system with 4 interlocking satellites, which are operated via a SmartLink® adapter. The elements, only 12 x 12 cm in size, are equipped with LD System's own WaveAhead® technology. One 4" and three 1" drivers provide a coherent and extremely detailed playback with high pressure and dynamics.



    The 10" bass-reflex subwoofer houses the Class D power amplifier and includes a limiter, protection against short circuit, overheating, over-voltage, as well as a 4-channel mixer with 16 digital effect presets and Bluetooth®. Combo, and Speakon- compatible sockets offer extensive connectivity options, and the subwoofer features four digital system presets, an M20 threaded flange and three ergonomic carrying handles.



    The Entertainer Set can be operated in stereo mode with a total of eight array satellites (max. four on each side). This variant is particularly useful in voice applications, where bass playback is not in the foreground. Speakers or moderators especially appreciate the clarity, transparency and typical benefits of array systems. With the Power Extension set, the Entertainer Set can provide even more power at any time, especially in the bass range, thus expanding to a high-performance Power Set.



    The CURV 500® Entertainer Set includes a subwoofer with a mixer unit, four satellites, SmartLink® adapters, distance bar and speaker cables.

  • Specification

    Product type PA Complete Systems
    System output (RMS): 460 W
    Colour Black
    Number of array satellites 4
    Number of Smartlink adapters 1
    Number of subwoofers 1
    Max. SPL (continuous) 122 dB
    Max. SPL (peak) 128 dB
    Frequency response 47 - 20000 Hz
    Dispersion (H x V) 110° horizontal, vertical (each satellite) 10 °
    RMS Subwoofer: 300 W , Array Satellites: 2 x 160 W
    Peak power Subwoofer: 1200 W , Array Satellites: 2 x 640 W
    Amplifier Class D
    Protection circuits DSP-based multiband limiter , overload , short circuit , thermal overload
    Weight 26,8 kg
    Accessories (included) Distance bar , Power cord , Speaker cable CURV 500 CABLE 1 (2.2 m)



    Subwoofer

    Low/mid driver dimensions 10 "
    Woofer size 254 mm
    Cabinet construction vented
    Cabinet material plywood
    Cabinet surface PA painting
    Dimensions Subwoofer (W x H x D) 325 x 383 x 491 mm
    Subwoofer weight 16.5 kg
    Subwoofer features 16 DFX Presets , 3 ergonomic handels , 4 channel mixer , 4 System DSP Presets , Bluetooth , Threaded flange M20



    Array Satellites

    Mid/Hi system MF: 1 x 4" / HF: 3 x 1" with WaveAhead® Technology / 16 ohms
    Array Satellite Features internal crossover , metal grille , WaveAhead® Technology
    Array Satellite Material die-cast aluminium
    Array Satellite Surface: Powder coated
    Array Satellite Dimensions (W x H x D) 122 x 122 x 122 mm
    Array Satellite Weight 1.7 kg



    Smartlink® Adapter

    Smartlink Adapter Features 2 x 16 mm pole mount socket , 2x M6 thread for optional wall mount
    Smartlink Adapter Connectors 1 x Speakon-compatible , 1x Phoenix
    Smartlink Adapter Material die-cast aluminium
    Smartlink Adapter Surface Powder coated
    Smartlink Adapter Dimensions (W x H x D) 122 x 57 x 122 mm
    Smartlink Adapter Weight 0.6 kg
