LD SYSTEMS CONTRACTOR CICS 52 100 V

LD SYSTEMS CONTRACTOR CICS 52 100 V

5.25" 2-way in-ceiling speaker 100 V



Item No.: LDCICS52100V



  • Elegant ceiling speaker

  • 5.25" woofer

  • 1.2" high-frequency driver

  • Low installation depth

  • 40 watts continuous power

  • Frequency range up to 20 kHz

  • High speech intelligibility

  • Easy and safe assembly

  • For hotels, restaurants, bars, lounges, shopping centres, conference rooms etc.

  • Also available as a 100 V version
  • Description

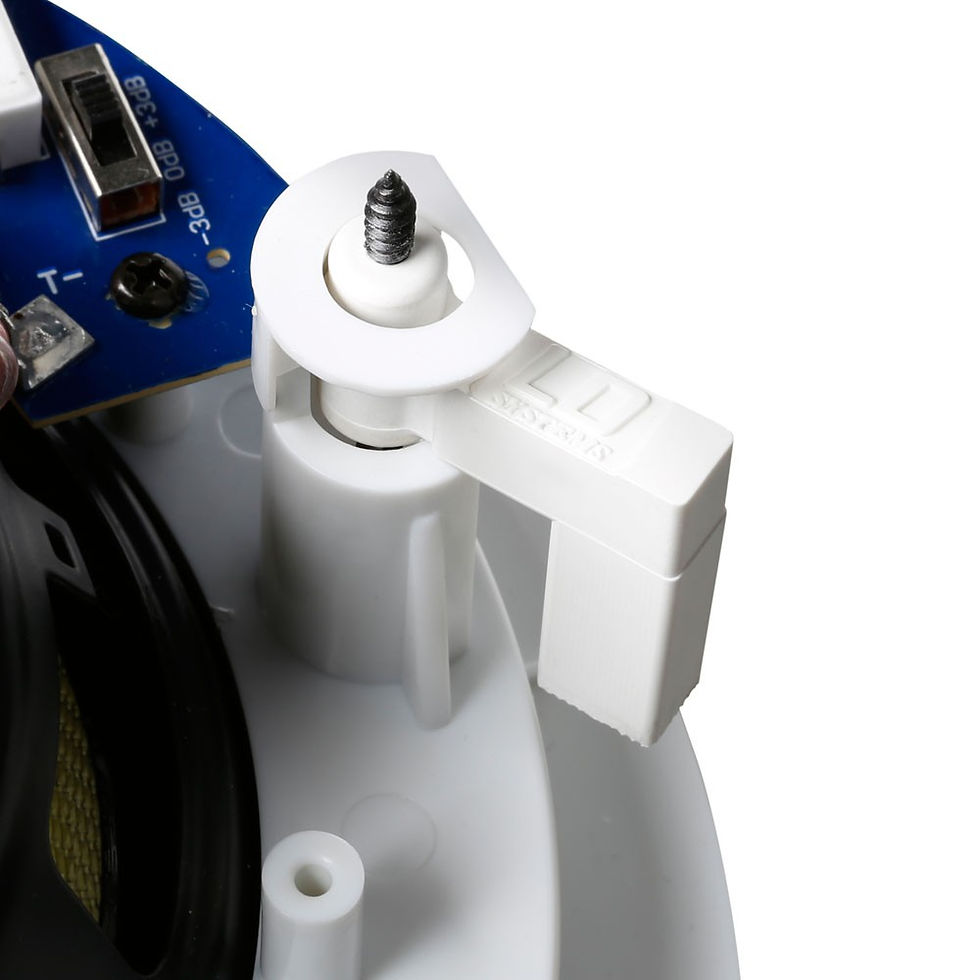

    The Contractor CICS 52 is a round in-wall speaker for installation in ceilings, that delivers a powerful sound and an appealing look. It is equipped with a 5.25" woofer and coaxial arranged 1.2" tweeter that feature a frequency response up to 20 kHz and high speech intelligibility. The CICS 52 reaches a sound pressure level of 88 dB at 1 W / 1 m and has a power capacity of 40 watts of continuous power. It features a secure mounting system with swivels for easy and fast installation. The ceiling speaker is designed for a wide scope of applications, providing a discreet sound in hotels, restaurants, bars, lounges, training and conference rooms, or shopping centres.



    For ELA systems, the CICS 52 is available as a 100 Volt version (CICS 52 100 V) with three taps for 6, 12, and 24 watts.

  • Specification

    Product type Installation Loudspeakers
    Type Ceiling-mounted Loudspeaker
    Version Wall and ceiling installation speaker
    Speaker type 2-way speaker
    Colour white
    Woofer dimensions 5.25 "
    Woofer size 133 mm
    Tweeter dimensions 1.2 "
    Tweeter dimensions (mm) 30 mm
    Cut-out measurement 170 mm
    Mounting depth 83 mm
    Min. Material Thickness 2.5 mm
    Max. Material Thickness 31 mm
    Impedance (low-impedance) 8 Ohm(s)
    100 V Inputs 12 W , 24 W , 6 W
    Frequency response 80 - 20000 Hz
    Sensitivity (1 W / 1 m) 88 dB
    Low-impedance rated load (RMS) 40 W
    Depth 92 mm
    Diameter 202 mm
    Weight 1,31 kg
