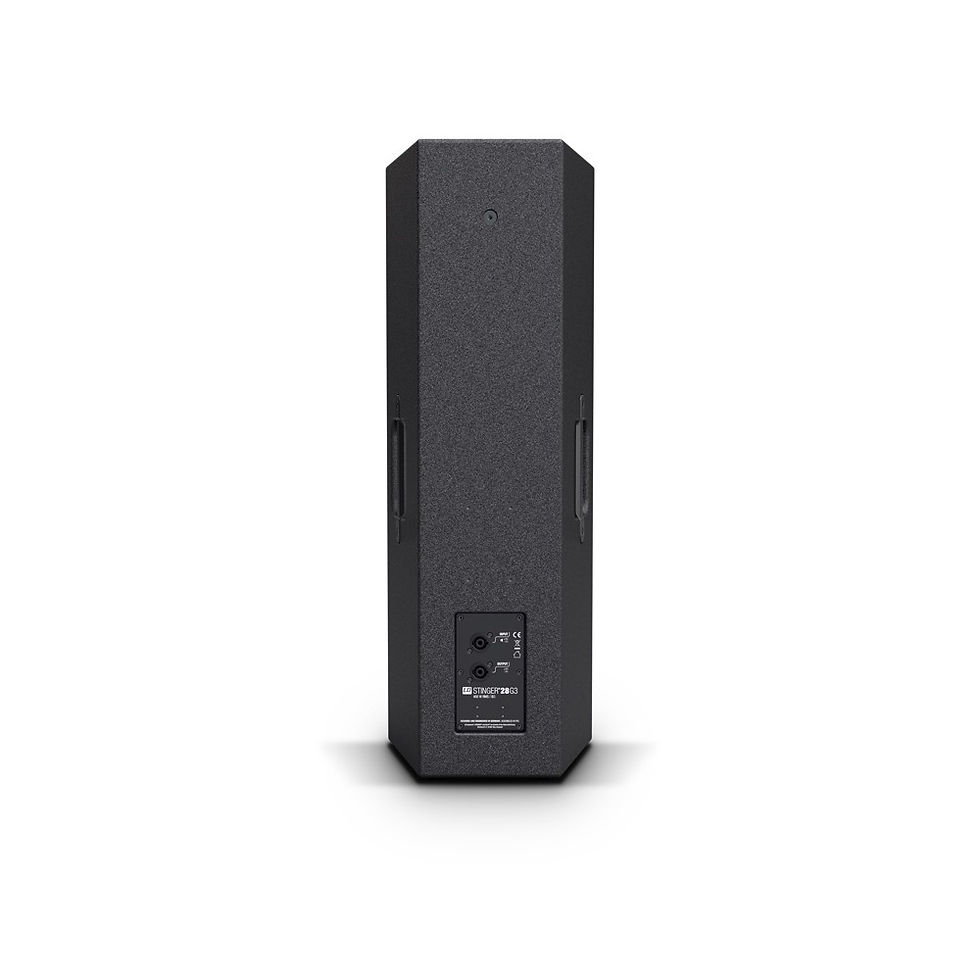

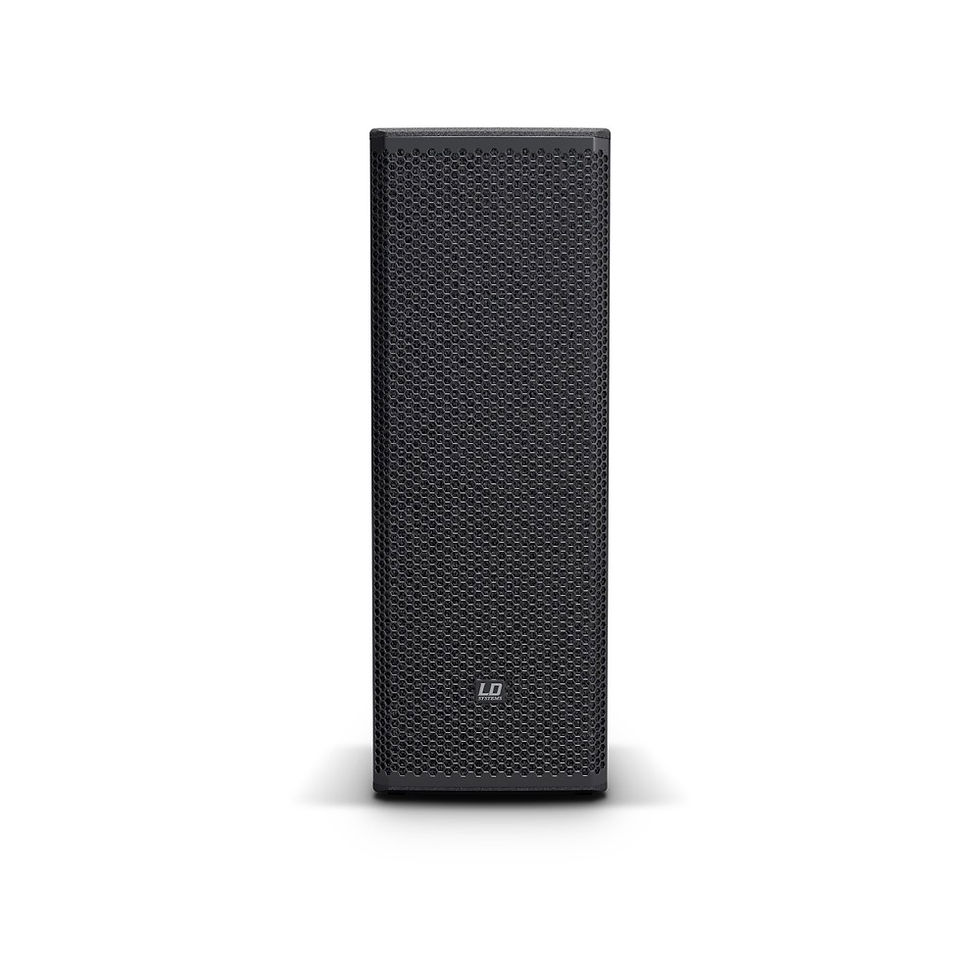

LD SYSTEMS STINGER 28 G3

LD SYSTEMS STINGER 28 G3

$0.00Price

Passive 2 x 8" 2-way bass-reflex PA speaker



Item No.: LDEB282G3



  • 2-way passive 2 x 8” bass reflex PA speaker

  • 400 watts RMS power handling

  • 125 dB maximum SPL

  • 2 x 8“ custom woofer and BMS compression driver

  • BEM optimized HF waveguide for uniform coverage

  • Birch ply cabinet with ultra rugged polyurea finish and M10 suspension points

  • Shock-resistant front grill provides maximum speaker protection

  • 36 mm Dual-Tilt pole receptacle for 0° or 5° mounting angles

  • Large selection of smart installation and transport accessories
  • Description

    Engineered for rock-solid reliability day in, day out this passive 2-way loudspeaker is a truly professional performer. With its multi-purpose bass reflex construction it is equally suitable for fullrange, satellite or monitor use in live PA systems and permanent installations. The Stinger® 28 G3 boasts a mighty 400 watts RMS power handling and 125 dB maximum sound pressure. It is loaded with dual custom designed 8” woofers and a BMS compression driver delivering a punchy low end and smooth, crisp highs. The HF waveguide has been designed using BEM, the numerical modeling of sound radiation and propagation. It reduces floor and ceiling reflections, effectively eliminates side lobes and achieves a controlled uniform coverage pattern.



    The Stinger® 28 G3 is designed to be a real workhorse throughout. The enclosure is made of rigid birch ply and coated with ultra tough polyurea for extraordinary strength and durability. Sporting a steel front grille, Dual-Tilt pole receptacle, multiple suspension points and ergonomic handles the Stinger® 28 G3 is an attractively priced choice for truly professional sound reinforcement. A large selection of accessories facilitate live and installed applications.

  • Specification

    Product type PA loudspeaker
    Type passive
    Low/mid driver dimensions 2 x 8 "
    Woofer size 2 x 203.2 mm
    Woofer magnet Ferrite
    Woofer brand Custom-made
    Woofer voice coil 2 "
    Woofer voice coil (mm) 50.8 mm
    Horn BEM optimized CD Horn
    HF driver dimensions 1 "
    HF Driver Size 25.4 mm
    HF driver magnet Ferrite
    HF driver brand BMS
    HF driver voice coil 1 "
    HF Driver Voice Coil 25.4 mm
    Dispersion (H x V) 90 x 50 °
    Load rating (RMS) 400 W
    Peak power 800 W
    Frequency response 58 - 20000 Hz
    SPL (1W/1m) 99 dB
    Max. SPL 125 dB
    Impedance 8 Ohm(s)
    Protection circuits HF Driver
    Loudspeaker inputs 1
    Speaker input connections Speakon compatible
    Loudspeaker outputs 1
    Speaker output connections Speakon compatible
    Speakers per amplifier channel (DSP44/45K) 3
    Cabinet material 12 mm Plywood
    Cabinet surface Polyurea
    Cabinet construction vented
    Width 270 mm
    Height 756 mm
    Depth 290 mm
    Weight 19,3 kg
