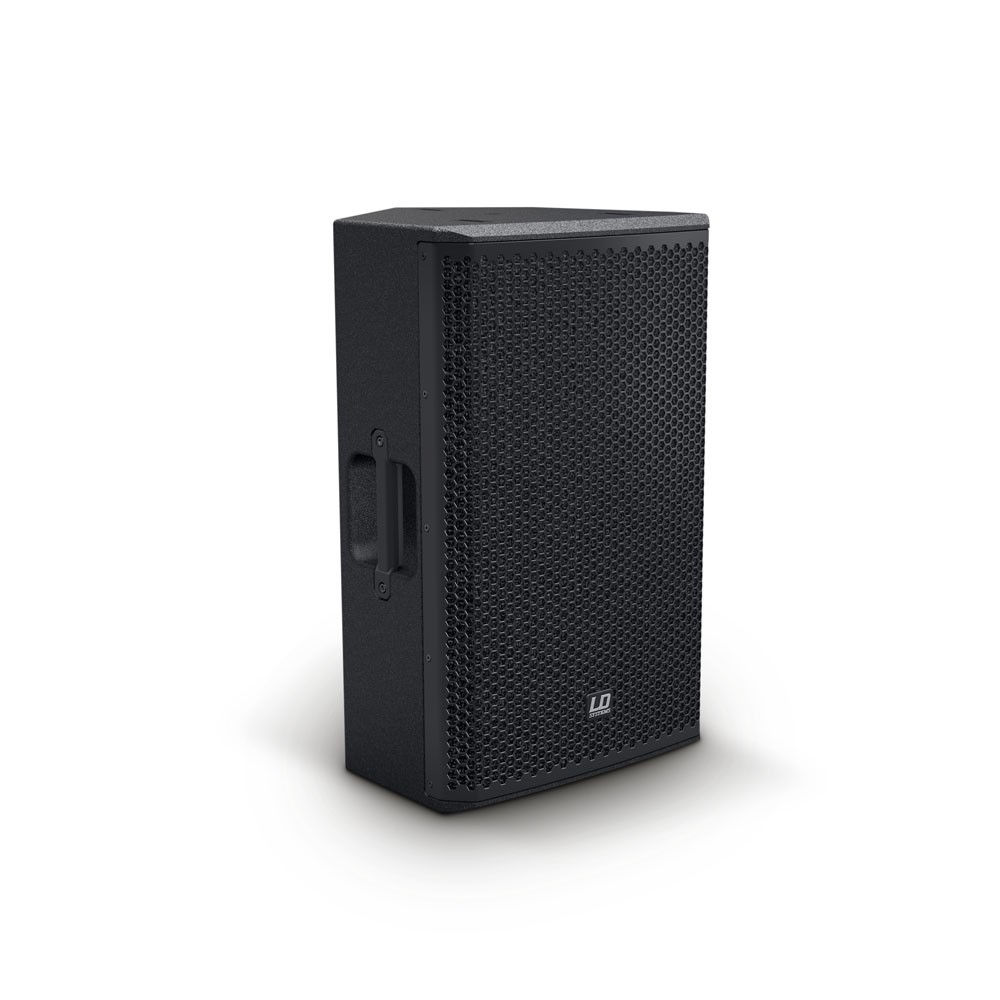

LD SYSTEMS STINGER 12 G3

LD SYSTEMS STINGER 12 G3

$0.00Price
2-Way Passive 12” Bass Reflex PA Speaker

Item No.: LDEB122G3

  • 2-way passive 12” bass reflex PA speaker

  • 400 watts RMS power handling

  • 125 dB maximum SPL

  • 12“ custom woofer and BMS compression driver

  • BEM optimized HF waveguide for uniform coverage

  • Birch ply cabinet with ultra rugged polyurea finish and M10 suspension points

  • Shock-resistant front grill provides maximum speaker protection

  • 36 mm Dual-Tilt pole receptacle for 0° or 5° mounting angles

  • Large selection of smart installation and transport accessories

  • Description

    This highly professional 2-way loudspeaker is designed for absolute, long-term reliability. With its multifunctional bass reflex cabinet as a full range speaker, satellite and ground monitor, it is suited to mobile and fixed PA systems. The Stinger® 12 G3 provides 400 watts of continuous power; the maximum sound pressure level is 125 dB. Its specially developed 12" woofer and the BMS HF driver achieve a powerful bass reproduction and fresh natural highs. The wave guide of the tweeter has been developed using the Boundary Element Method (BEM), a numerical simulation of the sound radiation and dispersion. It reduces reflections from the floor and ceiling and prevents sidelobe levels and thus achieves a controlled and homogeneous dispersion. The Stinger® 12 G3 is designed as a real all-round workhorse. The cabinet is made from robust birch plywood and offers an exceptional stability and durability thanks to its extremely durable polyurea coating. The features include a steel grille, a Dual-Tilt stand attachment, flight points and ergonomic handles. The Stinger® 12 G3 is an affordable solution for professional PA applications; extensive accessories support use on stage and in fixed installations.

  • Specification

    Product type PA loudspeaker
    Type passive
    Low/mid driver dimensions 12 "
    Woofer size 304.8 mm
    Woofer magnet Ferrite
    Woofer brand Custom-made
    Woofer voice coil 2.5 "
    Woofer voice coil (mm) 63.5 mm
    Horn BEM optimized CD Horn
    HF driver dimensions 1 "
    HF Driver Size 25.4 mm
    HF driver magnet Ferrite
    HF driver brand BMS
    HF driver voice coil 1 "
    HF Driver Voice Coil 25.4 mm
    Dispersion (H x V) 90 x 50 °
    Load rating (RMS) 400 W
    Peak power 800 W
    Frequency response 58 - 20000 Hz
    SPL (1W/1m) 99 dB
    Max. SPL 125 dB
    Impedance 8 Ohm(s)
    Protection circuits HF Driver
    Loudspeaker inputs 1
    Speaker input connections Speakon compatible
    Loudspeaker outputs 1
    Speaker output connections Speakon compatible
    Speakers per amplifier channel (DSP44/45K) 3
    Cabinet material 15 mm Plywood
    Cabinet surface Polyurea
    Cabinet construction vented

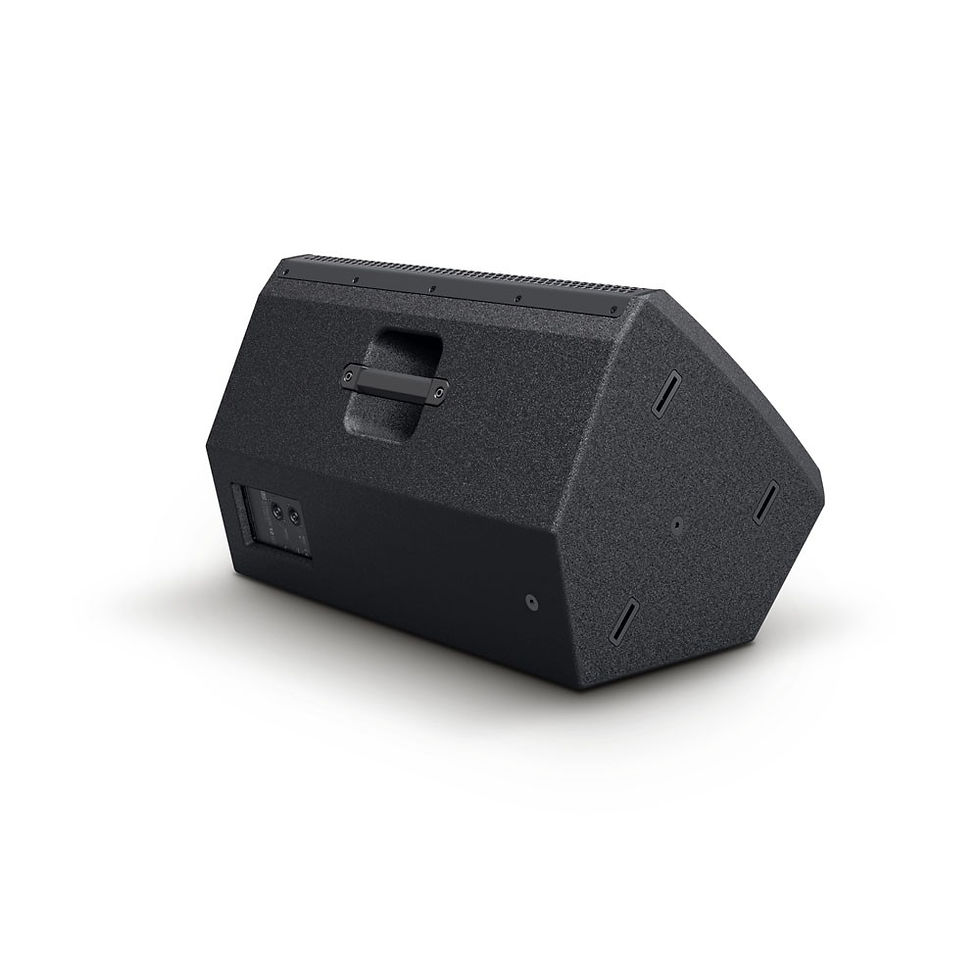

    Monitor angle 54 °
    Width 390 mm
    Height 627 mm
    Depth 377 mm
    Weight 19,4 kg
