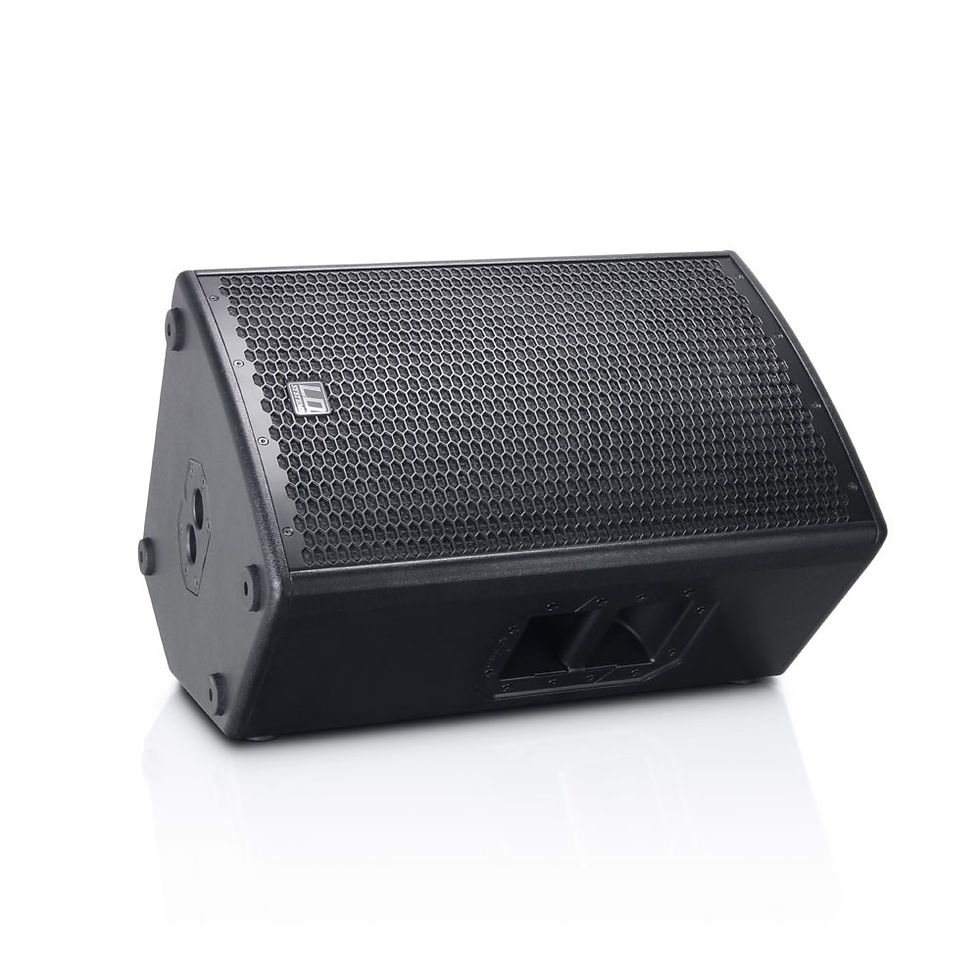

LD SYSTEMS GT 12 A

LD SYSTEMS GT 12 A

$0.00Price
12” powered PA loudspeaker

Item No.: LDGT12A

  • Multifunctional Lightweight Speaker

  • Innovative Design

  • 0/5° Dual-Tilt Flange

  • Up to 1000 Watt Class D 2-Band EQ

  • Specially developed Dura-Vinyl Surface

  • Rugged Hardware

  • Incredible Price/Performance Ratio

  • Description

    With its 12" custom woofer and 1" Celestion compression driver complement the GT 12 A active fullrange loudspeaker delivers high definition audio with a peak SPL of 122 dB, 60 Hz – 19 kHz frequency response and 90° x 60° dispersion.



    Covered in tough, textured Dura-Vinyl for protection and long-lasting appearance the rugged 15mm MDF bass reflex enclosure integrates a 54° monitor angle, honeycomb pattern steel grille and dual tilt pole mount.



    Providing outstanding value, the GT 12 A is powered by a built-in Class D digital amplifier with highly efficient SMPS technology and 1,000 watts peak output. It features XLR and 6.3 mm connectors for line and microphone input, a 2-band EQ and overcurrent and overvoltage protection for reliable operation.



    A protective cover is available as accessory.

  • Specification

    Product type PA loudspeaker
    Type Actives
    Low/mid driver dimensions 12 "
    Woofer size 304.8 mm
    Woofer magnet Ferrite
    Woofer brand Custom-made
    Woofer voice coil 2.5 "
    Woofer voice coil (mm) 63.5 mm
    Horn CD horn
    HF driver dimensions 1 "
    HF Driver Size 25.4 mm
    HF driver magnet Ferrite
    HF driver brand Celestion
    HF driver voice coil 1 "
    HF Driver Voice Coil 25.4 mm
    Amplifier Class D
    Dispersion (H x V) 90 x 60 °
    RMS 250 W
    Peak power 1000 W
    Frequency response 60 - 19000 Hz
    Max. SPL (continuous) 119 dB
    Max. SPL (peak) 122 dB
    Protection circuits HF Driver , over voltage , over-current
    Input sensitivity Mic: 150 mV / Line: -10 dBu
    Controls Bass , Line Gain , Mic Gain , Power , Treble , volume
    Indicators Limit , Power , Protect (protection circuit engaged) , Signal
    Line inputs 1
    Line input connectors 6.3 mm jack , XLR
    Mic inputs 1
    Mic inputs 6.3 mm jack , XLR
    Line outputs 1
    Line output connectors XLR
    Operating voltage Switching power supply
    Operating voltage 110 V AC - 120 V AC , 220 V AC - 240 V AC (Auto), 50 - 60 Hz
    Cabinet material 15 mm MDF
    Cabinet surface Dura-vinyl textured paint
    Cabinet construction vented
    Monitor angle 54 °
    Width 389 mm
    Height

    565 mm
