LD SYSTEM GT 10 A

LD SYSTEM GT 10 A

10” powered PA loudspeaker



Item No.: LDGT10A



  • Multifunctional Lightweight Speaker

  • Innovative Design

  • 0/5° Dual-Tilt Flange

  • Up to 800 Watt Class D 2-Band EQ

  • Specially developed Dura-Vinyl Surface

  • Rugged Hardware

  • Incredible Price/Performance Ratio
  • Description

    Loaded with a custom 10" woofer and 1" Celestion compression driver the GT 10 A active fullrange loudspeaker provides exceptional value and crisp, well balanced audio with a 65 Hz – 19 kHz frequency response, 90° x 60° dispersion and 119dB peak SPL.

    The sturdy bass reflex cabinet is made from 15mm MDF and covered in heavy-duty textured Dura-Vinyl for protection and lasting appearance. It features a honeycomb steel grille, 54° monitor angle and dual tilt stand mount.

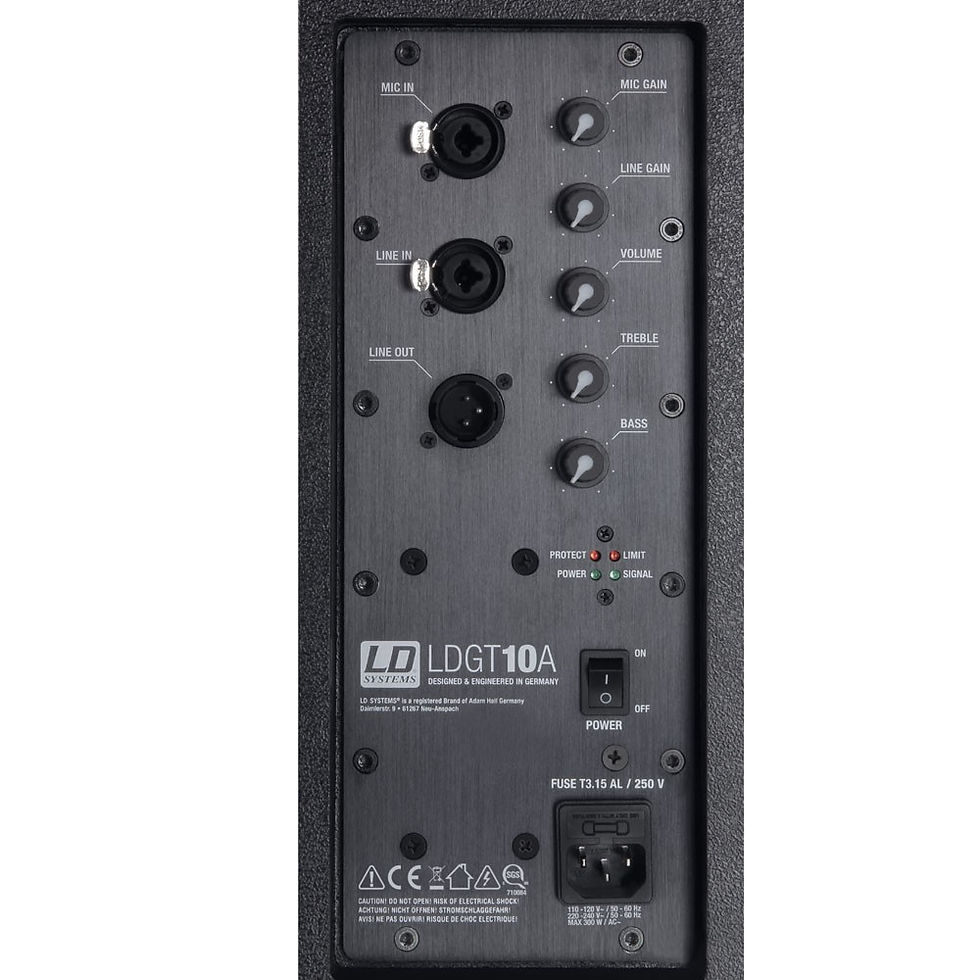

    The GT 10 A is powered by a built-in Class D digital amplifier with high efficiency SMPS and 800 watts peak output. It provides line and microphone inputs on XLR and 6.3 mm connectors, a 2-band EQ and is protected against overcurrent and overvoltage for reliable operation.



    A protective cover is available as accessory.

  • Specification

    Product type PA loudspeaker
    Type Actives
    Low/mid driver dimensions 10 "
    Woofer size 254 mm
    Woofer magnet Ferrite
    Woofer brand Custom-made
    Woofer voice coil 2 "
    Woofer voice coil (mm) 50.8 mm
    Horn CD horn
    HF driver dimensions 1 "
    HF Driver Size 25.4 mm
    HF driver magnet Ferrite
    HF driver brand Celestion
    HF driver voice coil 1 "
    HF Driver Voice Coil 25.4 mm
    Amplifier Class D
    Dispersion (H x V) 90 x 60 °
    RMS 200 W
    Peak power 800 W
    Frequency response 65 - 19000 Hz
    Max. SPL (continuous) 116 dB
    Max. SPL (peak) 119 dB
    Protection circuits HF Driver , over voltage , over-current
    Input sensitivity Mic: 150 mV / Line: -10 dBu
    Controls Limit , Power , Protect (protection circuit engaged) , Signal
    Line inputs 1
    Line input connectors 6.3 mm jack , XLR
    Mic inputs 1
    Mic inputs 6.3 mm jack , XLR
    Line outputs 1
    Line output connectors XLR
    Operating voltage Switching power supply
    Operating voltage 110 V AC - 120 V AC , 220 V AC - 240 V AC (Auto), 50 - 60 Hz
    Cabinet material 15 mm MDF
    Cabinet surface Dura-vinyl textured paint
    Cabinet construction vented
    Monitor angle 54 °
    Width 328 mm
    Height 500 mm
    Depth 293 mm
    Features dual-tilt flange (0°/5°) , rugged steel grille
    Weight 13,8 kg
