LD SYSTEM 10 A G3

LD SYSTEM 10 A G3

Active 10" 2-way bass-reflex PA speaker



Item No.: LDEB102AG3



  • Active 10" 2-way bass-reflex PA speaker

  • 127 dB max. SPL and 300-watt RMS performance with a highly-efficient digital amplifier

  • Perfect all-rounder for full-range, satellite and monitor applications

  • Practical presets for fast and user-specific frequency tuning

  • Homogeneous dispersion pattern thanks to a BEM-optimised tweeter wave guide

  • 10" custom woofer and BMS tweeter driver

  • Distortion-free sound at even maximum volumes, thanks to DynX® DSP technology

  • 2 line/mic input channels with individual gain controllers plus mono mix output

  • 12 mm birch plywood housing with ultra-robust polyurea coating and M10 rigging points

  • Shock-resistant front grille for optimal protection of the speaker.

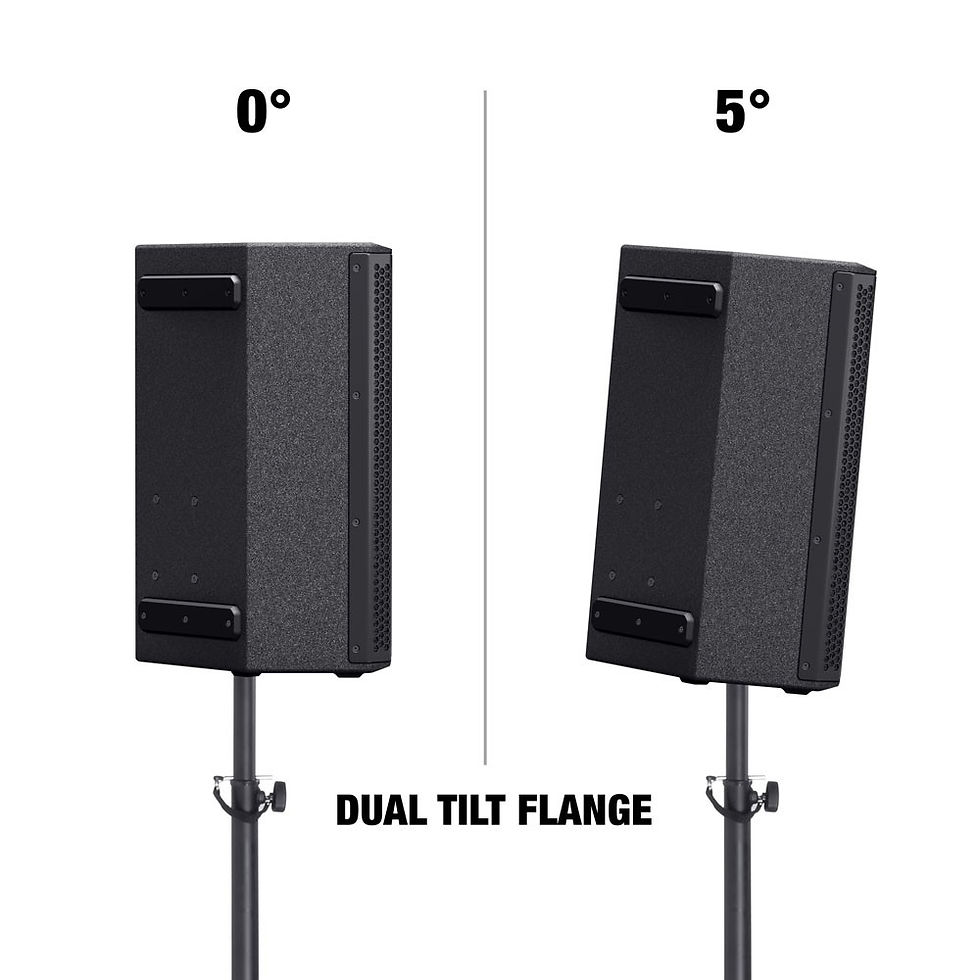

  • 36 mm dual tilt stand attachment with 0° and 5° tilt angle

  • Extensive and smart accessories for installation and transport
  • Description

    This highly professional 2-way active system is designed for absolute, long-term reliability. With its multi-functional bass reflex housing and finely tuned, user-friendly presets, the speakers are suitable as full-range, box, satellite and floor monitors. The Stinger® 10 A G3 is powered by a highly efficient Class-D amplifier with a powerful 300-watt continuous output. The specially developed 10" woofer and a BMS tweeter driver achieve a powerful bass response and fresh, natural trebles. The wave guide of the tweeter has been developed using the Boundary Element Method (BEM), a numerical simulation of the sound radiation and dispersion. It reduces reflection from floors and ceilings and prevents sidelobe levels, thus achieving controlled and homogeneous dispersion. LD Systems’ proprietary DynX® DSP technology means that the Stinger® 10 A G3 delivers perfect performance with maximum clarity and power under all conditions. The signal processing of the crossover function and the multi-band limiter achieve an optimal runtime and high freedom from distortion. Designed as an all-around workhorse, the housing of the speaker is made of robust birch plywood. An extremely resilient coating of polyurea offers exceptional robustness and durability. The features include a steel front grille, a dual-tilt stand attachment, flight points and ergonomic handles. The Stinger® 10 A G3 is a good value and attractive solution for professional sound systems, with extensive accessories that support usage on the stage and in fixed installations.

  • Specification

    Product type PA loudspeaker
    Type active
    Low/mid driver dimensions 10 "
    Woofer size 254 mm
    Woofer magnet Ferrite
    Woofer brand Custom-made
    Woofer voice coil 2 "
    Woofer voice coil (mm) BEM optimized CD Horn
    HF driver dimensions 1 "
    HF Driver Size 25.4 mm
    HF driver magnet Ferrite
    HF driver brand BMS
    HF driver voice coil 1 "
    HF Driver Voice Coil 25.4 mm
    Amplifier Class D
    Dispersion (H x V) 90 x 50 °
    RMS 300 W
    Peak power 600 W
    Frequency response 65 - 20000 Hz
    Max. SPL (peak) 127 dB
    Protection circuits Multiband limiter , over voltage , over-current , thermal overload
    Input sensitivity -9 dBu
    Controls 2 x gain , 2 x Mic/Line
    Indicators Limit , Mic , Mode , On , Protect (protection circuit engaged) , Signal
    Line inputs 2
    Line input connectors 6.3 mm jack , XLR
    Line outputs 1
    Line output connectors XLR
    Operating voltage 100 - 120 V / 50 - 60 Hz or 200 - 240 V / 50 - 60 Hz (automatic switching) , Switching power supply
    Operating Temperature 0 - 40 °C
    Relative Humidity < 80% (non-condensing)
    Cabinet material 12 mm Plywood
    Cabinet surface Polyurea
    Cabinet construction vented
    Monitor angle 54 °
    Width 325 mm
    Height 527 mm
    Depth 318 mm
    Weight 12,7 kg
