CAMEO LIGHTS EVOS S3

CAMEO LIGHTS EVOS S3

Spot Moving Head



Item No.: CLES3



  • Super-bright LED spot moving head with 12,000 lm light output

  • Even, homogenous 1.5:1 ratio light distribution

  • CMY colour blending with linear CTO and additional colour wheel with 7 dichroic filters

  • Motorised zoom 10° to 38°

  • Motorised focusing

  • Rotating gobo wheel with 7 indexable and replaceable glass gobos + open

  • Static gobo wheel with 8 replaceable metal gobos + open

  • Rotatable and indexable circular 3-facet prism

  • Linear frost filter and continuously variable iris diaphragm with pulse effects of up to 2 Hz

  • Flexible control options via built-in W-DMX™ transceiver, DMX, RDM, Art-Net or sACN
  • Description

    The Cameo EVOS® S3 is a super-bright spot moving head with a powerful 350-watt cool white LED and specially developed optics for even light distribution. It offers an impressive light performance of 12,000 lm, fast 540° panning and 270° tilting and produces brilliant and vibrant colours with its CMY colour blending and linear CTO-correction. The spotlight also features a colour wheel with 7 dichroic filters and a motorised zoom changes the beam angle from a tight 10° to an expansive 38°. It is equipped with a motorised focus and a continuously variable iris diaphragm that facilitates pulse effects of up to 2 Hz, and a continuously adjustable frost filter supplies a soft, washlight-like spread.



    With two gobo wheels and a circular 3-facet prism, the EVOS® S3 is equipped for impressive projections and effects. The rotating gobo wheel is fitted with 7 indexable glass gobos, the static gobo wheel is fitted with 8 metal gobos. All the gobos can easily be switched out and combined with the rotating and indexable prisms for maximum effect.

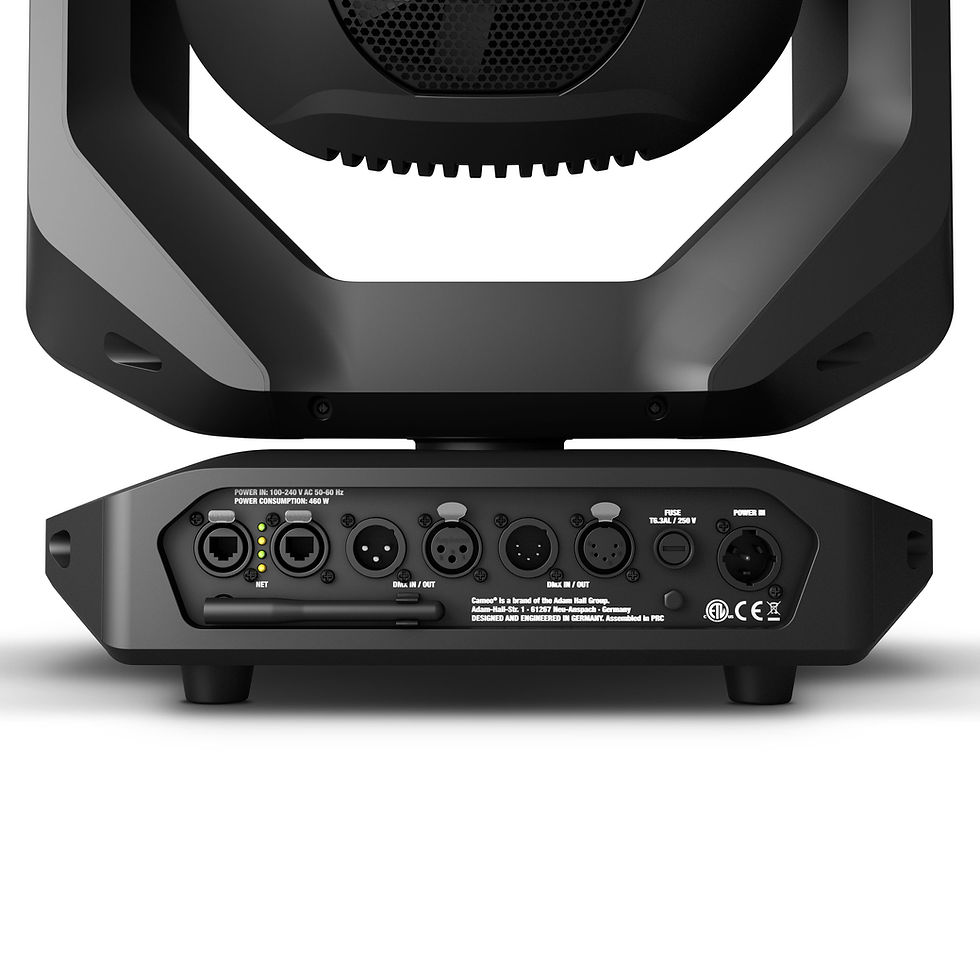

    The EVOS® S3 offers flexible control options via DMX, RDM, Art-Net, sACN or the built-in W-DMX™ transceiver. It features robust metal and ABS housing with a silent, temperature-controlled fan, 3 and 5-pin DMX inputs and outputs and powerCON TRUE1-compatible power sockets. The spot moving head is supplied with two Omega brackets and power cable.

  • Specification

    Product type LED Moving Lights
    Type Moving Head
    Colour spectrum cold white
    Number of LEDs 1
    Colour temperature 6800 K
    LED type 350 W
    Refresh rate adjustable to 25000 Hz
    Dispersion 10 - 38 °
    DMX input RJ45 Ethernet In (ArtNET) , XLR 3-pin male , XLR 5-pin male
    DMX output RJ45 Ethernet Out (ArtNET) , XLR 3-pin female , XLR 5-pin female
    DMX mode 22-channel , 32-channel
    DMX Functions Auto programs , Colour wheel , CTO , CTO Fine , Cyan , Cyan Fine , Device Settings , Dimmer , Dimmer Fine , Focus , Focus Fine , Frost , Gobo wheel , Gobo Wheel 1 , Gobo Wheel 2 , Gobo Wheel Fine Index , Gobo Wheel Rotation & Index , Iris , Magenta , Magenta Fine , PAN , PAN FINE , Pan/Tilt Macros , Prism , Set Dimmer Curve , strobe , TILT , TILT FINE , Yellow , Yellow Fine , Zoom , Zoom Fine
    PAN movement 540°
    TILT movement 270°
    High Speed Strobe > 20 Hz
    Standalone modes Auto Mode , Device Settings , Static
    Controls Enter , Mode , Value Down , Value Up
    Indicators OLED Display
    Operating voltage 100 V AC - 240 V AC, 50 - 60 Hz
    Power consumption 460 W
    Efficiency 26 lm/W
    Housing material ABS plastic , metal
    Cabinet colour Black
    Protection class IP IP20
    Cooling Advanced heatpipe-liquid cooling system with temperature controlled fans
    Illuminance 14,760 lx @ 5 m (12°) , 41,000 lx @3 m, (narrow)
    Luminous flux 12,000 lm
    Maximum Ambient Temperature -15 - 45 °C
    Width 403 mm
    Height 663 mm
    Depth 257 mm
    Weight 23,5 kg
    Features 2 x Omega Clamp , Power cord
