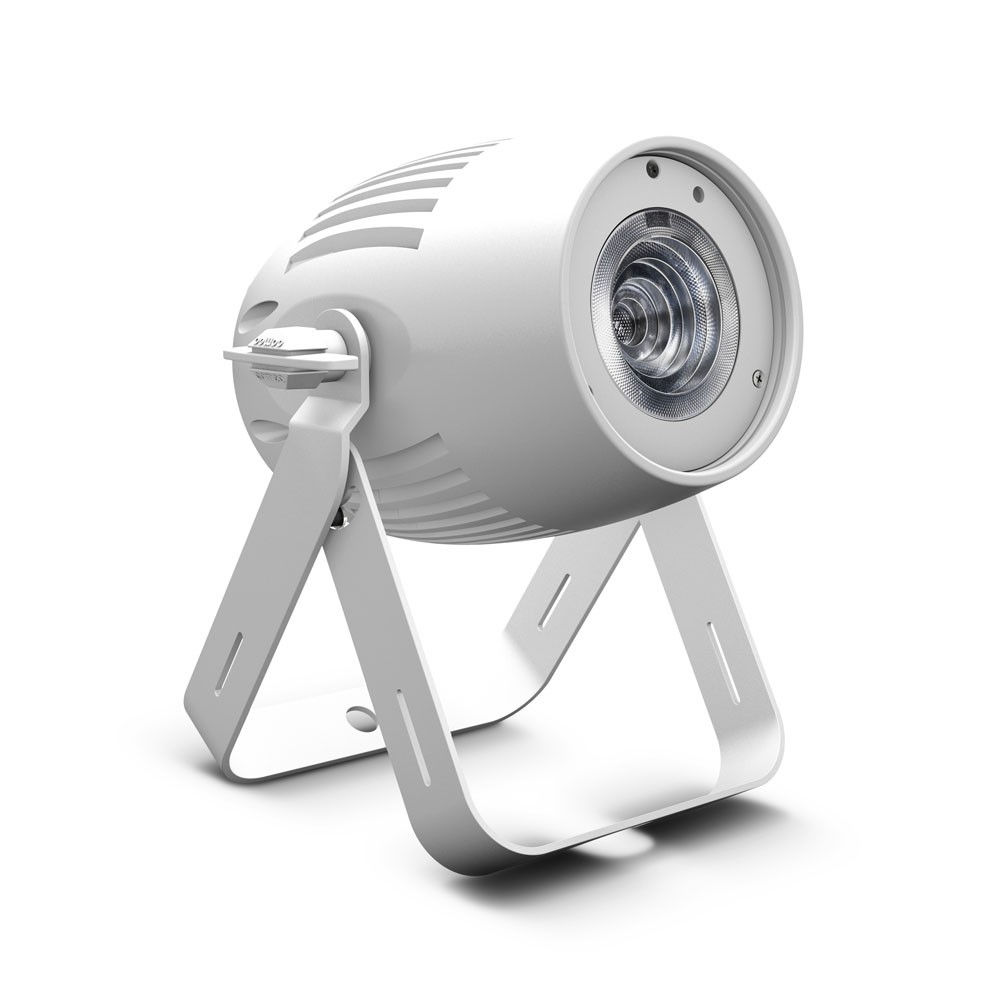

Cameo Q-SPOT 40 RGBW WH

Cameo Q-SPOT 40 RGBW WH

$0.00Price
Compact Spotlight with 40W RGBW LED in White Housing

Item No.: CLQS40RGBWWH

  • Compact spotlight with single 40W Osram quad LED

  • Custom lens with 4.5° beam spread for uniform light intensity

  • Includes 2 replacement lenses for 10° or 25° beam angles

  • RDM enabled

  • 16-bit technology for high definition colours and ultra smooth dimming

  • Flicker free, ideal for motion picture and TV applications

  • Colour temperature correction

  • 4 high resolution dimming curves with adjustable response

  • 5 modes of DMX control, sound activation plus master, slave and standalone capability

  • Infrared remote control available as accessory

  • 4-button OLED display for easy configuration

  • Convection cooling for noiseless performance

  • Description

    he compact Cameo Q-Spot 40 is equipped with a powerful 40 watt Osram quad LED that has a 50,000 hour life expectancy. The RDM enabled spotlight sports a custom lens for a tightly focussed 4.5° beam spread. It comes with two replacement lenses offering versatility and a choice of 10° and 25° angles. Using 16-bit technology, the Q-Spot 40 achieves intense high definition RGBW colour mixes and ultra smooth dimming with selectable curves and response. Highly efficient convection cooling ensures silent operation, and the fixture's 3,600 Hz refresh rate and flicker-free performance make it ideal for motion picture and TV applications.



    The Q-Spot 40 provides 5 modes of DMX control, sound activation and master, slave and standalone capability. A convenient infrared remote control unit is available as accessory. The spotlight features a high-speed strobe function, colour temperature correction and a 4-button OLED display for easy configuration. The rugged all-metal housing provides 3-pin DMX inputs and outputs plus blue and grey Power Twist connectors for trouble-free daisy-chaining and power linking. The Q-Spot 40 is available with a black (item no. CLQS40RGBW) or white housing (item no. CLQS40RGBWWH).

  • Specification

    Product type LED PAR Lighting
    Type Indoor
    Colour spectrum RGBW
    Number of LEDs 1
    Average LED lifetime 50000 hrs.
    LED type 40 W
    Refresh rate 3600 Hz
    Dispersion 10 ° , 25 ° , 4.5 °
    DMX input XLR 3-pin male
    DMX output XLR 3-pin female
    RDM Yes
    Protocols USITT DMX-512
    DMX mode 2-channel , 3-channel 1 , 3-channel 2 , 4-channel , 9-channel
    DMX Functions colour jump , colour macro , master dimmer , RGBW , sound control , strobe
    Wireless DMX no
    High Speed Strobe 1 - 20 Hz
    Standalone modes Auto run , colour fade , colour jump , colour macro , slave mode , sound control
    Controls Enter , Grey Power Twist, female , Mode , Value Down , Value Up
    Indicators OLED Display
    Operating voltage 100 V AC - 240 V AC, 50 - 60 Hz
    Power consumption 55 W
    How many devices can be connected (110 V) 5
    How many devices can be connected (240 V) 5
    Power connector Blue Power Twist, male
    Power supply connection Grey Power Twist, female
    Max. output current 12 A A
    Housing material metal
    Cabinet colour white
    Protection class IP IP20
    Cooling Convection
    Maximum Ambient Temperature 0 - 40° C °C
    Illuminance 58,000 lx @ 1 m , 8900lx @ 3m
    Luminous flux 780 lm
    Width 220 mm
    Height 230 mm
    Depth 220 mm
    Weight 2,75 kg
