CAMEO LIGHTS AURO BEAM 150

CAMEO LIGHTS AURO BEAM 150

7 x 15 W RGBW LED Unlimited Moving Head



Item No.: CLABEAM150



  • 7 x high power 15 W RGBW LEDs

  • RGBW spectrum for saturated primary colours, subtle pastel shades and natural shades of white

  • Single Pixel Control for effective Pixel Mapping effects

  • 2 high-speed engines for precise, high-speed and unlimited Pan and Tilt movements

  • Effective automated operating modes

  • Programmable Standalone scenes

  • Professional 3- and 5-pin DMX sockets and Neutrik powerCon mains connector

  • With a 3,600 Hz refresh rate, it is ideal for TV and video applications

  • RDM enabled

  • 4 selectable dimming curves

  • Color temperature correction

  • 3 temperatures of white: warm white, white, cool white
  • Description

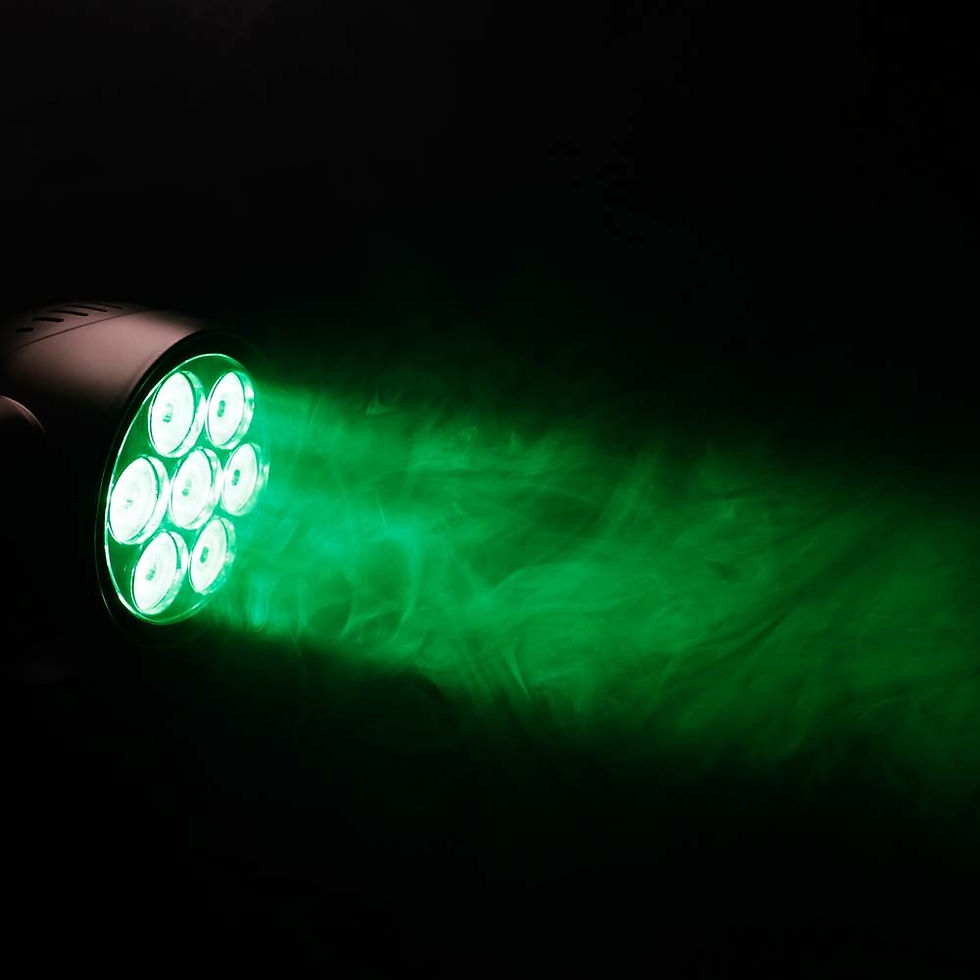

    The Cameo AURO® BEAM 150 is an ultra-fast moving head with unlimited pan and tilt movement, 16-bit resolution and a 3,600 Hz refresh rate. Seven 15 Watt Quad LEDs produce rich RGBW colours, fresh pastel colours and vibrant shades of white with a 12° beam angle and a light intensity of 50,000 lux; Single Pixel Control ensures impressive pixel mapping effects.



    The professional features of the AURO® BEAM 150 include a low-noise temperature controlled fan, powerCON mains connectors by Neutrik and 3 and 5-pin inputs and outputs for the DMX signal. It can be operated fully automatically with programmable scenes or music, or used in standalone, master or slave mode; when using DMX, 5-channel, 11-channel, 19-channel and 41-channel control modes are available, with options that include dimmer and strobe functions.



    The rugged black metal and ABS housing of the Cameo AURO® BEAM 150 has 6 buttons and a backlit display for easy operation. The moving head can be used with all mains voltages from 100 to 240 volts and comes with a power cable and an Omega mounting bracket.

  • Specification

    Product type LED Moving Lights
    Type LED Moving Heads
    Colour spectrum RGBW
    Number of LEDs 7
    LED type 15 W
    Refresh rate 3600 Hz
    Dispersion 12 °
    DMX input XLR 3-pin male , XLR 5-pin male
    DMX output XLR 3-pin female , XLR 5-pin female
    DMX mode 11-channel , 19-channel , 41-channel , 5-channel
    DMX Functions Dimmer , Pan/Tilt , Pan/Tilt fine , Single Pixel Control , strobe
    PAN movement unlimited
    TILT movement unlimited
    High Speed Strobe > 30 Hz
    Standalone modes Auto run , Show , sound control
    Controls - , + , Enter , Mode , Value Down , Value Up
    Indicators colour LC display
    Operating voltage 100 V AC - 240 V AC, 50 - 60 Hz
    Power consumption 130 W
    Power connector Neutrik powerCON IN / OUT
    Housing material ABS plastic , metal
    Cabinet colour Black
    Cooling silent, temperature controlled fan
    Illuminance 50000lx @ 1m
    Width 375 mm
    Height 260 mm
    Depth 180 mm
    Weight 4,8 kg
